Black Box AVSC-VIDEO-HDMI Component/Composite to HDMI Scaler/Converter with Audio

Converts Video & RCA Audio to HDMI

Supports up to 1080p & 1920 x 1200 Video

Up/Downscales a Wide Resolution Range

Compatible with All HDMI Sinks

The AVSC-VIDEO-HDMI Component/Composite to HDMI Scaler from Black Box converts video with left/right analog audio or S/PDIF digital audio to digital HDMI with embedded audio. Use this unit to convert component/composite devices like gaming systems or Blu-Ray players for display on your HDMI monitor or television.

Control the AVSC-VIDEO-HDMI using the front-panel push-buttons, the USB Mini-B port, or an On-Screen Display (OSD). This scaler/converter supports intelligent color adjustments and a wide range of resolutions from 480p to 1080p. It comes with a remote controller and an AC power supply.

Features Converts composite/component video and RCA audio to HDMI Compatible with all HDMI sinks such as PC monitors, plasma HD displays, HDTVs, and audio/receivers/amplifiers Upscales output resolution to up to 1080p and 1920 x 1200 Downscales to 480p and 640 x 480 USB Mini-B, OSD, or push-button control Intelligent color adjustments

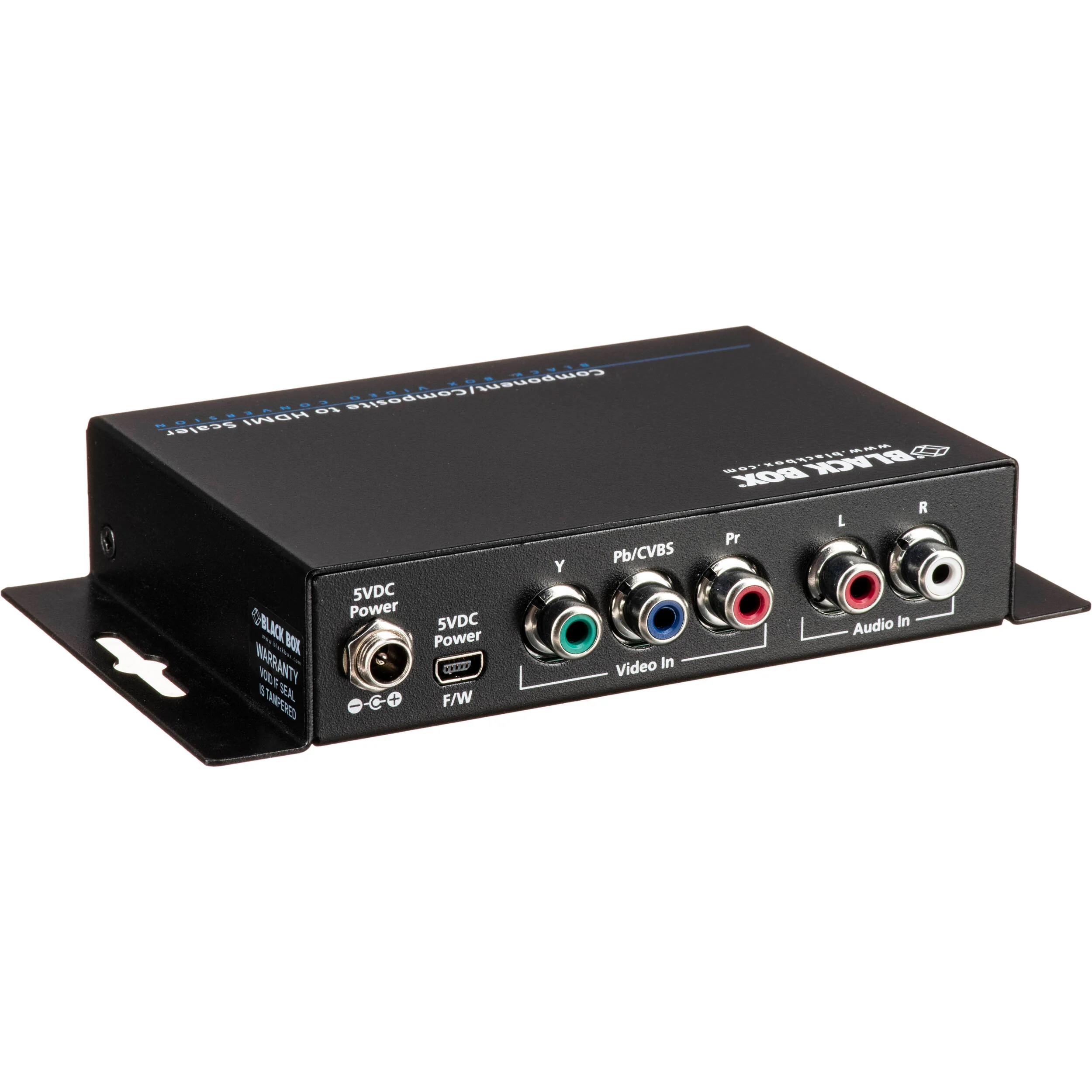

Input Connectors	1 x 3RCA (Component / Composite) Female 1 x 2RCA (Stereo Analog) Female 1 x RCA (S/PDIF) Female

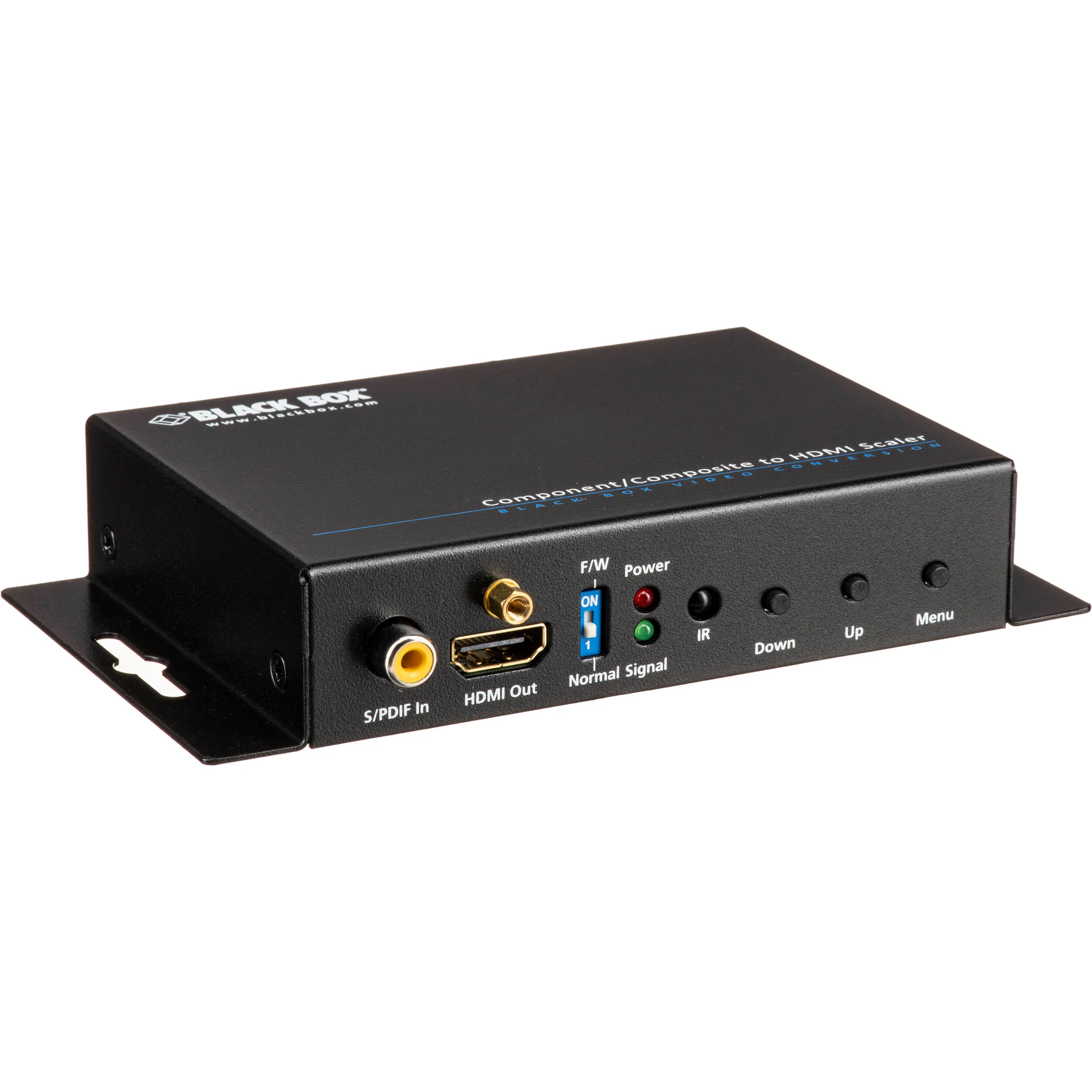

Output Connectors	1 x HDMI

Video Format	Component 1080p: 24/25/30/50 fps 1080i: 50/59.94/60 fps 720p: 25/30/50/59.94/60 fps 576p: 60 fps 480p: 60 fps NTSC: 60 fps PAL: 50 fps
PC Resolutions	1680 x 1050 at 60 Hz 1600 x 1200 at 60 Hz 1440 x 900 at 60/75 Hz 1400 x 1050 at 60 Hz 1366 x 768 at 60 Hz 1360 x 768 at 60 Hz 1280 x 1024 at 60/75 Hz 1024 x 768 at 60/75 Hz 800 x 600 at 60/75 Hz 640 x 480 at 60/75 Hz
Audio Format	Analog: 48 kHz

Power Connector	1 x USB Mini-B (5 VDC up to 2 A) Input 1 x Barrel (5 VDC up to 2 A) Input
PoE Support	None
Power Consumption	(5 W)

Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Operating Humidity	20 to 90%

Certifications	CE, FCC, as per Manufacturer
Dimensions	3.6 x 3.3 x 1.1" / 9.2 x 8.3 x 2.8 cm
Weight	9.5 oz / 270 g

Box Dimensions (LxWxH)

8 x 5.5 x 3"
