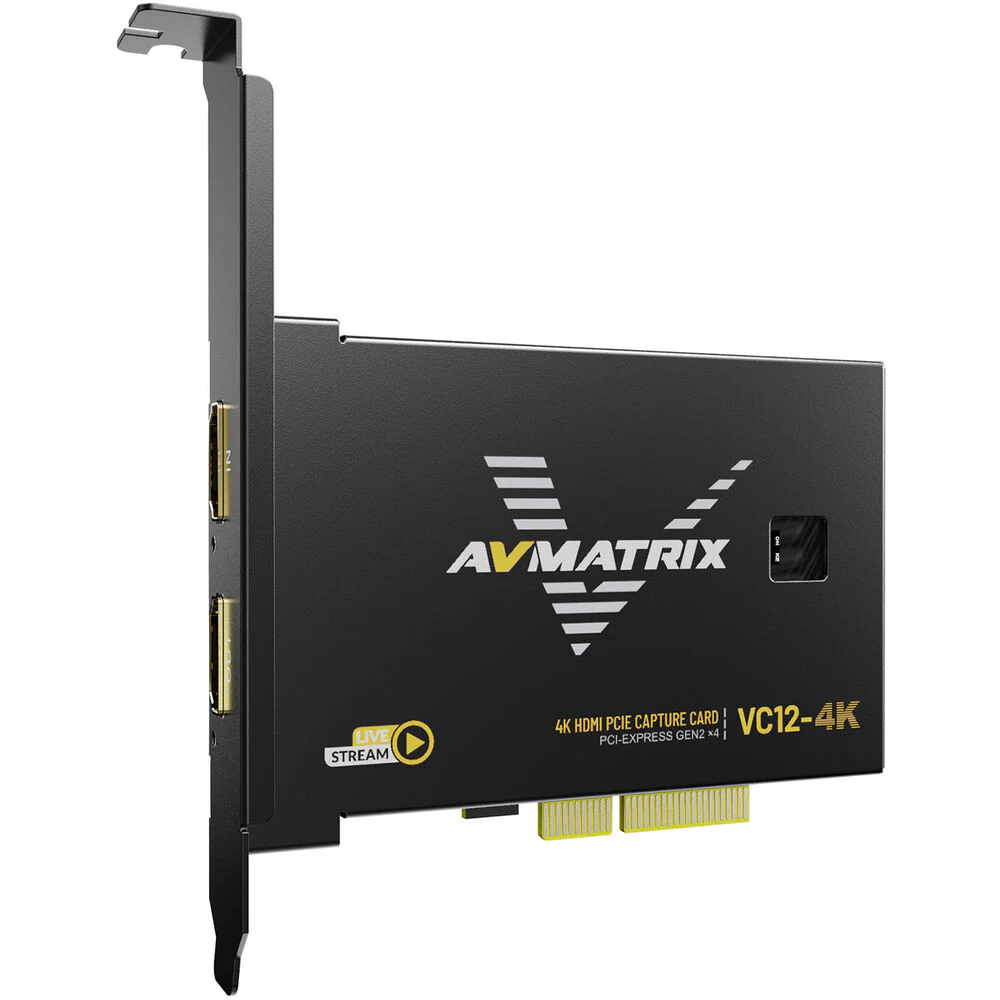

AVMATRIX VC12-4K UHD 4K HDMI PCIe Capture Card
HomeStore

AVMATRIX VC12-4K UHD 4K HDMI PCIe Capture Card

AVMATRIX VC12-4K UHD 4K HDMI PCIe Capture Card

$136.32

Original: $454.40

-70%
AVMATRIX VC12-4K UHD 4K HDMI PCIe Capture Card—

$454.40

$136.32

The Story

AVMATRIX VC12-4K Overview

  • 1Description
  • 2High Bandwidth and Ultralow Latency
  • 324-Hours of Non-Stop Work
  • 4Compatibility

Simultaneously stream and display your gameplay or broadcast using this VC12-4K UHD 4K HDMI PCIe Capture Card from AVMATRIX with its HDMI input and loop output. The PCIe 2.0x4 interface supports up to UHD 4K video at 60 fps. It outputs YUY2 uncompressed video for a high-quality picture.

The image integrity is further preserved thanks to the 1080i hardware deinterlacing and 3D noise reduction algorithm. Compatible with Windows and Linux operating systems, the card is capable of recording to applications like OBS and Teams and livestreaming the captured video to major platforms.

High Bandwidth and Ultralow Latency
The PCIe 2.0 interface has 2.5GB/s transmission bandwidth for faster data transfer speed in gaming and livestream applications, bringing uncompressed and ultralow latency to the streaming experience.
24-Hours of Non-Stop Work
The card has a thick gold-plated interface for more stable contact and transmission to work continuously for a long period of time.
Compatibility
Windows 7 and Linux 18.04 operating systems and above are supported by the card. Streaming and recording via OBS, Teams, Twitch, and other platforms is also supported for broadcast to major livestreaming platforms like YouTube and Facebook via the network.

In the Box

  • AVMATRIX VC12-4K UHD 4K HDMI PCIe Capture Card
  • Limited 3-Year Manufacturer Warranty
    Table of Contents
    • Description
    • High Bandwidth and Ultralow Latency
    • 24-Hours of Non-Stop Work
    • Compatibility

    AVMATRIX VC12-4K Specs

    System Connection
    PCIe 2.0 x4
    Video Inputs
    1 x HDMI (HDMI 2.0) Female
    Audio Inputs
    No
    Video Outputs
    1 x HDMI (HDMI 2.0) Female (Loop Output)
    Input Video Format
    HDMI
    UHD 4K 60 fps
    1440p 144 fps
    1080p 240 fps
    Input Audio Format
    LPCM (Linear Pulse-Code Modulation): 48 kHz / 16-Bit
    Output Video Format
    HDMI
    UHD 4K 25/30/50/60 fps
    DCI 4K 25/30/50/60 fps
    1440p 60 fps
    DCI 2K 60 fps
    2560 x 1440 25/30/50/60/120/144 fps
    1080p Ultrawide (2560 x 1080) 60 fps
    WUXGA (1920 x 1200) 60 fps
    1080p 25/30/50/59.94/60/120/144/240 fps
    UXGA (1600 x 1200) 60 fps
    WXGA+ (1440 x 900) 60 fps
    SXGA (1280 x 1024) 60 fps
    WXGA (1280 x 800) 60 fps
    1280 x 720 (Non-Standard WXGA) 25/30/50/59.94/60/120/144/240 fps
    XGA (1024 x 768) 60 fps
    SVGA (800 x 600) 60 fps
    576p 60 fps
    480p 60 fps
    Output Audio Format
    LPCM (Linear Pulse-Code Modulation): 48 kHz / 16-Bit
    Embedded Audio
    HDMI
    Standards
    HDR Compatibility
    Not Specified by Manufacturer
    Hardware
    OS Compatibility
    Windows 7 or Later
    Linux 18.4 or Later
    *As of August, 2022: Check with manufacturer for the most up-to-date compatibility
    Power Consumption
    Device: 2 W
    Environmental
    Operating Temperature
    32 to 140°F / 0 to 60°C
    Storage Temperature
    -4 to 158°F / -20 to 70°C
    Operating Humidity
    5 to 90% (Non-Condensing)
    General
    Dimensions
    4.7 x 3.8 x 0.9" / 120.1 x 95.7 x 21.6 mm
    Weight
    3.5 oz / 100 g
    Packaging Info
    Package Weight
    0.35 lb
    Box Dimensions (LxWxH)
    5.8 x 4.6 x 1.4"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

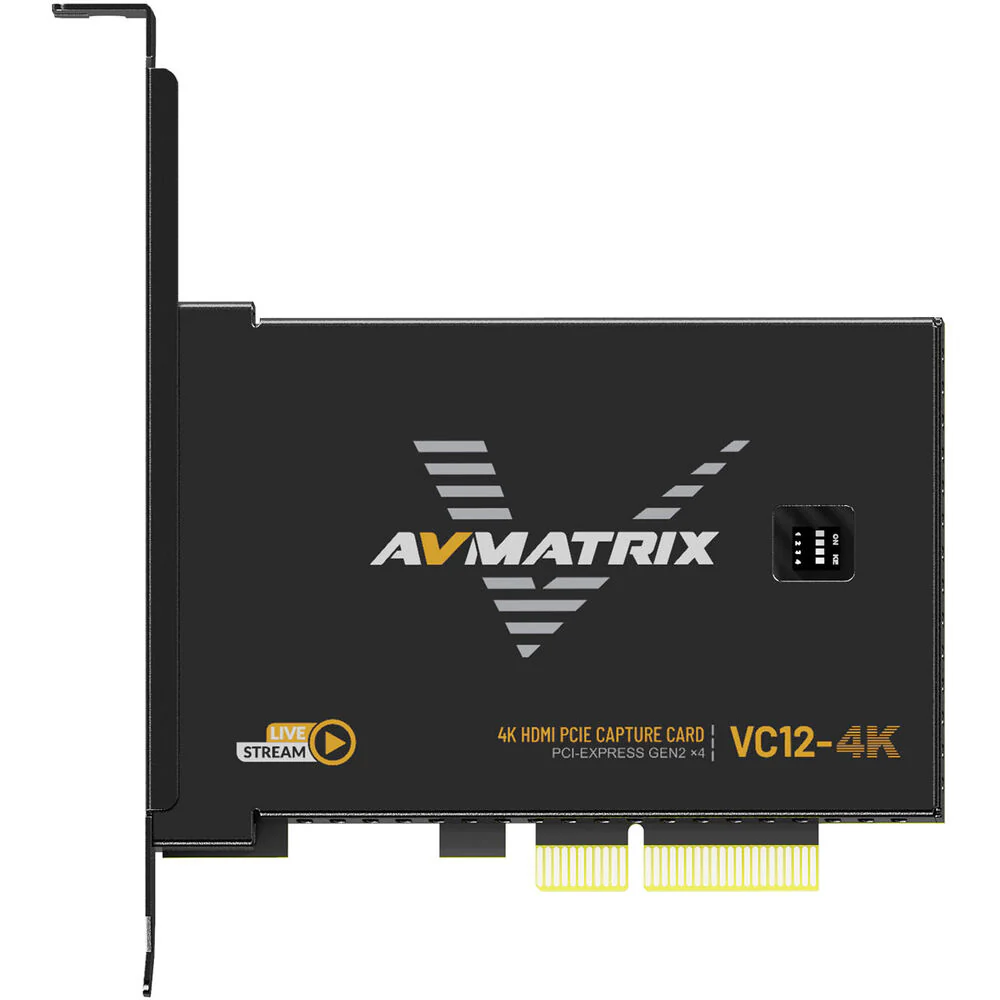

    AVMATRIX VC12-4K UHD 4K HDMI PCIe Capture Card - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

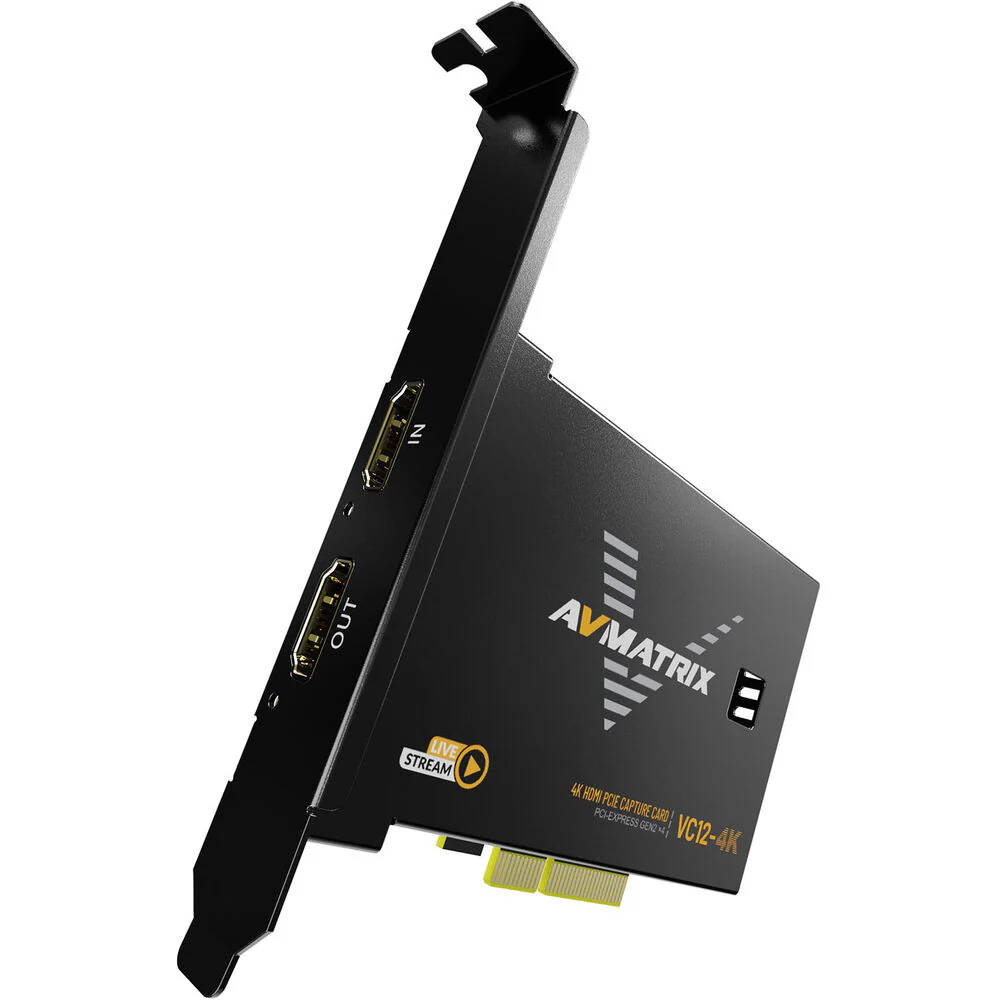

    AVMATRIX VC12-4K UHD 4K HDMI PCIe Capture Card - Image 3
