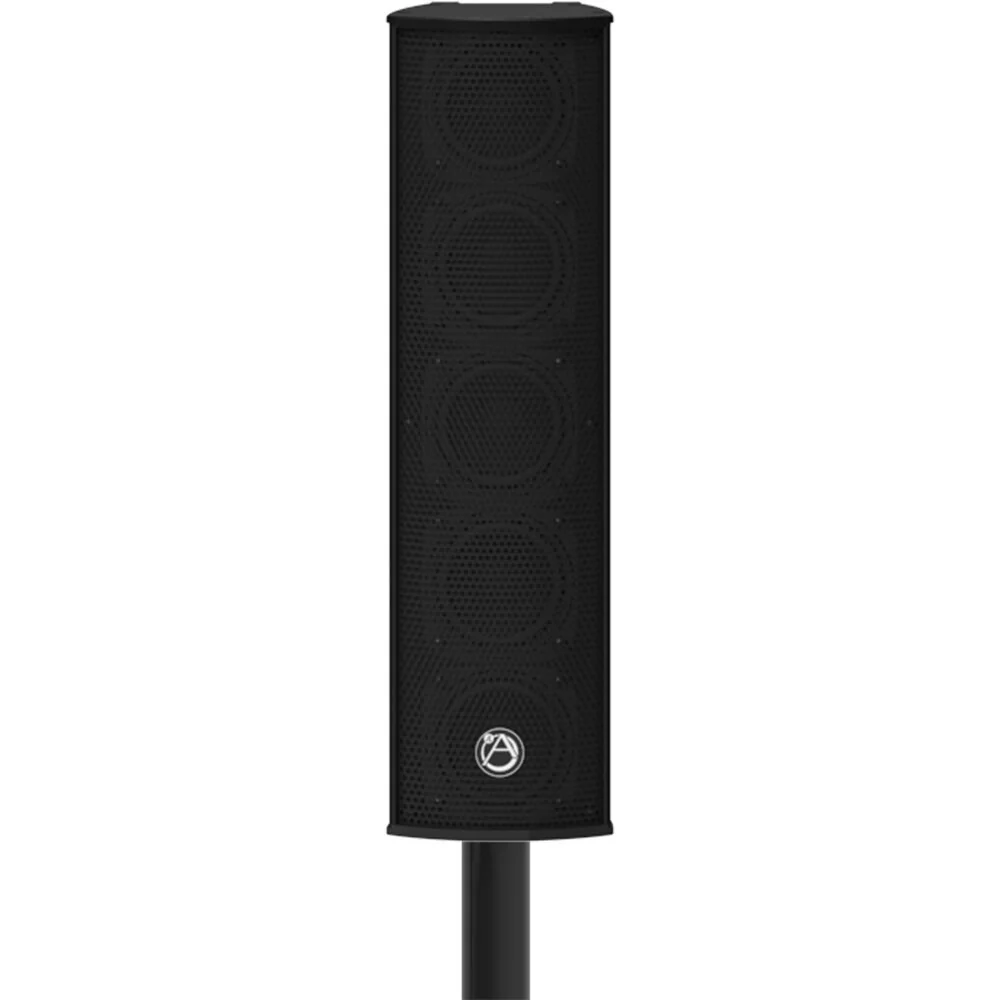

AtlasIED ALA5TAW-B Passive 250W 3" 2-Way Line Array Speaker System (Black)
HomeStore

AtlasIED ALA5TAW-B Passive 250W 3" 2-Way Line Array Speaker System (Black)

AtlasIED ALA5TAW-B Passive 250W 3" 2-Way Line Array Speaker System (Black)

$334.53

Original: $1,115.11

-70%
AtlasIED ALA5TAW-B Passive 250W 3" 2-Way Line Array Speaker System (Black)—

$1,115.11

$334.53

The Story

AtlasIED ALA5TAW Overview

  • 1Description
  • 2Powerful Sound, Minimal Footprint
  • 3Durable and Reliable
  • 4Ideal Applications

Delivering five 3" LF transducers and two 0.9" HF tweeters in a narrow column form factor, the black ALA5TAW-B Passive 2-Way Line Array Speaker System from Atlas Sound is a highly mobile, 250W peak, EN54-24 certified full-range speaker system designed for maximum freedom of placement in any space, be it retail, theatres, museums, convention centers, or acoustically challenged environments. The ALA5TAW-B is designed for applications that require excellent speech intelligibility and contemporary aesthetics, and the system comes with a wall mounting bracket with vertical channels that allow it to slide and tilt for up to ±10° of freedom.

This line array features a barrier strip and a speakON NL-4 terminal input for accepting signals as well as 70.7 and 100V transformer taps for use in distributed audio systems. The lightweight yet durable extruded aluminum enclosure provides protection and optimal sound reproduction, allowing the ALA5TAW-B to perform well in both fixed and portable applications.

Powerful Sound, Minimal Footprint
The EN54-24 certified compact ALA5TAW-B column line array loudspeaker delivers maximum performance in a minimum footprint, ideal for integrated PA systems in any space or application where amplification of speech is needed.

  • Full-range sound coverage
  • 70.7V, 100V, and 6-ohm operation
  • 137 Hz to 20 kHz frequency response (±5 dB)
  • 116.8 dB max SPL
  • 45° vertical and 135° horizontal coverage
Durable and Reliable
The ALA5TAW-B is built to last and can withstand numerous challenging environments, including outdoor spaces. The extruded aluminum enclosure is lightweight, making it easy to place and mount, while also providing excellent protection and sound reproduction. The IP33C weather rating ensures protection from water sprays up to 60 vertical degrees, allowing the system to withstand demanding outdoor venues. The EN54-24 certification allows this line array to perform as a fire alert loudspeaker system, a useful function for venues and large commercial spaces.
Ideal Applications
This line array speaker system can perform optimally in a range of distinct applications including:

  • Challenging acoustic spaces
  • Architecturally sensitive spaces
  • Houses of worship
  • Transportation hubs
  • Retail spaces
  • Conference rooms
  • Lecture theatres
  • Gymnasiums
  • Convention centers
  • Museums
  • Stadium concourses
  • Multipurpose venues

In the Box

  • AtlasIED ALA5TAW-B Passive 250W 3" 2-Way Line Array Speaker System (Black)
  • Wall Mounting Bracket
  • Limited 5-Year Manufacturer Warranty
    Table of Contents
    • Description
    • Powerful Sound, Minimal Footprint
    • Durable and Reliable
    • Ideal Applications

    AtlasIED ALA5TAW Specs

    Key Specs
    Configuration
    Passive 2-Way
    Enclosure Type
    Sealed Line Array
    Total Power Capacity
    Passive:
    250 W Program
    Passive:
    125 W RMS
    HF Driver
    2 x 0.9" / 2.2 cm Dome Tweeter
    LF Driver
    5 x 3" / 7.6 cm
    Frequency Range
    125 Hz to 20 kHz -10 dB
    Enclosure Type
    Sealed Line Array
    Total Power Capacity
    Passive:
    250 W Program
    Passive:
    125 W RMS
    Constant Voltage / Transformer Taps
    70 V:
    60 / 30 / 15 / 7.5 W or 6 Ohms Bypass
    100 V:
    60 / 30 / 15 W or 6 Ohms Bypass
    System Impedance
    6 Ohms
    Drivers
    HF Driver
    2 x 0.9" / 2.2 cm Dome Tweeter
    HF Voice Coil
    0.8" / 2 cm
    MF Driver
    No
    LF Driver
    5 x 3" / 7.6 cm
    LF Voice Coil
    0.8" / 2 cm
    Performance
    Frequency Range
    125 Hz to 20 kHz -10 dB
    Frequency Response
    137 Hz to 20 kHz ±5 dB
    Maximum SPL
    113.8 dB (Continuous)
    116.8 dB SPL (Peak)
    Coverage Angle
    135° H x 45° V
    Directivity
    9.3 (Directivity/Q Factor)
    9.68 (Directivity Index)
    Input Sensitivity
    92 dB
    Protections
    RMS
    Connectivity
    Audio I/O
    1 x speakON NL4 Female Line Input
    1 x Barrier Strip Input
    Signal Processing
    Crossover
    3.5 kHz (Passive)
    Filters
    No
    Phase Adjustment
    No
    Physical
    Mounting
    2 x Bracket Point (Rear)
    Handles
    No
    IP Rating
    IP33
    Environmental Protection
    Advertised as Dust Resistant/Water Resistant
    *Manufacturer Testing: IP33
    Construction Material
    Aluminum, Steel
    Dimensions
    16.6 to 4.6 x 5.4" / 42.2 to 11.7 x 13.7 cm (Array)
    Weight
    11.2 lb / 5.1 kg

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
