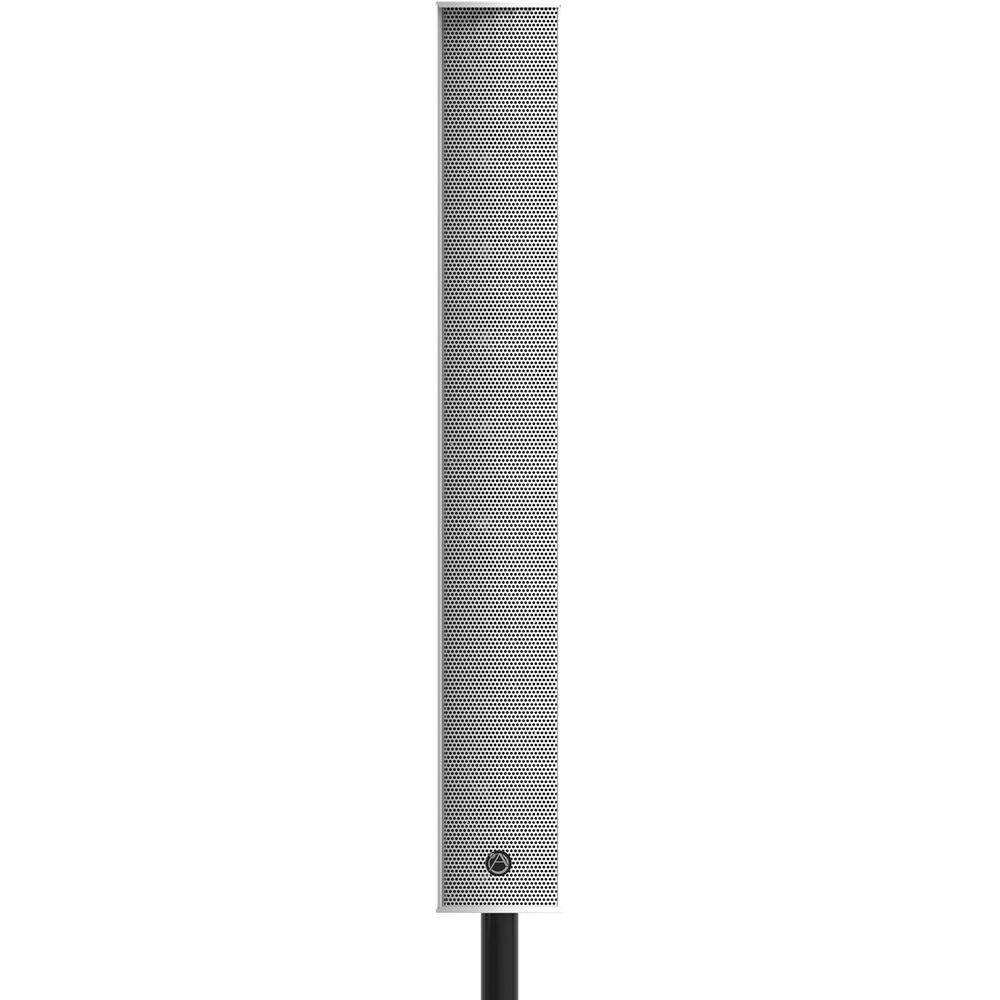

AtlasIED ALA10TAW Passive 400W 3" 2-Way Line Array Speaker System (White)
HomeStore

AtlasIED ALA10TAW Passive 400W 3" 2-Way Line Array Speaker System (White)

AtlasIED ALA10TAW Passive 400W 3" 2-Way Line Array Speaker System (White)

$459.44

Original: $1,531.45

-70%
AtlasIED ALA10TAW Passive 400W 3" 2-Way Line Array Speaker System (White)—

$1,531.45

$459.44

The Story

AtlasIED ALA10TAW Overview

  • 1Description
  • 2Powerful Sound, Minimal Footprint
  • 3Durable and Reliable
  • 4Ideal Applications

Delivering 10 x 3" LF transducers and four 0.9" HF tweeters in a narrow column form factor, the white ALA10TAW Passive 2-Way Line Array Speaker System from Atlas Sound is a 400W, EN54-24 certified full-range speaker system designed for maximum freedom of placement in any space, be it retail, theatres, museums, convention centers, or acoustically challenged environments. The ALA10TAW is designed for applications that require excellent speech intelligibility and contemporary aesthetics, and the system comes with a wall mounting bracket with vertical channels that allow it to slide and tilt for up to ±10° of freedom.

This line array features a barrier strip and a speakON NL-4 terminal input for accepting signals as well as 70.7 and 100V transformer taps for use in distributed audio systems. The lightweight yet durable extruded aluminum enclosure provides protection and optimal sound reproduction, allowing the ALA10TAW to perform well in both fixed and portable applications.

Powerful Sound, Minimal Footprint
The EN54-24 certified compact ALA10TAW column line array loudspeaker delivers maximum performance in a minimum footprint, ideal for integrated PA systems in any space or application where amplification of speech is needed.

  • Full-range sound coverage
  • 70.7V, 100V, and 6-ohm operation
  • 160 Hz to 20 kHz frequency response
  • 122 dB max SPL
  • 40° vertical and 135° horizontal coverage
Durable and Reliable
The ALA10TAW is built to last and can withstand numerous challenging environments, including outdoor spaces. The extruded aluminum enclosure is lightweight, making it easy to place and mount, while also providing excellent protection and sound reproduction. The IP33C weather rating ensures protection from water sprays up to 60 vertical degrees, allowing the system to withstand demanding outdoor venues. The EN54-24 certification allows this line array to perform as a fire alert loudspeaker system, a useful function for venues and large commercial spaces.
Ideal Applications
This line array speaker system can perform optimally in a range of distinct applications including:

  • Challenging acoustic spaces
  • Architecturally sensitive spaces
  • Houses of worship
  • Transportation hubs
  • Retail spaces
  • Conference rooms
  • Lecture theatres
  • Gymnasiums
  • Convention centers
  • Museums
  • Stadium concourses
  • Multipurpose venues

In the Box

  • AtlasIED ALA10TAW Passive 400W 3" 2-Way Line Array Speaker System (White)
  • Wall Mounting Bracket
  • Limited 5-Year Manufacturer Warranty
    Table of Contents
    • Description
    • Powerful Sound, Minimal Footprint
    • Durable and Reliable
    • Ideal Applications

    AtlasIED ALA10TAW Specs

    Key Specs
    Configuration
    Passive 2-Way
    Enclosure Type
    Sealed Line Array
    Total Power Capacity
    Passive:
    200 W RMS
    Passive:
    400 W Peak
    HF Driver
    4 x 0.9" / 2.2 cm
    LF Driver
    10 x 3" / 7.6 cm
    Frequency Range
    125 Hz to 20 kHz -10 dB
    Enclosure Type
    Sealed Line Array
    Total Power Capacity
    Passive:
    200 W RMS
    Passive:
    400 W Peak
    Constant Voltage / Transformer Taps
    70 V:
    60 / 30 / 15 / 7.5 W or 6 Ohms Bypass
    100 V:
    60 / 30 / 15 W or 6 Ohms Bypass
    System Impedance
    6 Ohms
    Drivers
    HF Driver
    4 x 0.9" / 2.2 cm
    HF Voice Coil
    0.8" / 2 cm
    MF Driver
    No
    LF Driver
    10 x 3" / 7.6 cm
    LF Voice Coil
    0.8" / 2 cm
    Performance
    Frequency Range
    125 Hz to 20 kHz -10 dB
    Frequency Response
    160 Hz to 20 kHz ±5 dB
    Maximum SPL
    119 dB SPL (Continuous)
    122 dB SPL (Peak)
    Coverage Angle
    135° H x 40° V
    Directivity
    7.43 (Directivity/Q Factor)
    8.71 (Directivity Index)
    Input Sensitivity
    96 dB
    Protections
    RMS
    Connectivity
    Audio I/O
    1 x speakON NL4 Female Line Input
    1 x Barrier Strip Input
    Signal Processing
    Crossover
    3.5 kHz (Passive)
    Filters
    No
    Phase Adjustment
    No
    Physical
    Mounting
    2 x Bracket Point (Rear)
    Handles
    No
    IP Rating
    IP33
    Environmental Protection
    Advertised as Dust Resistant/Water Resistant
    *Manufacturer Testing: IP33
    Construction Material
    Aluminum, Steel
    Dimensions
    32.9 to 4.6 x 5.4" / 83.6 to 11.7 x 13.7 cm (Array)
    Weight
    19.6 lb / 8.9 kg

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
    AtlasIED ALA10TAW Passive 400W 3" 2-Way Line Array Speaker System (White) - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

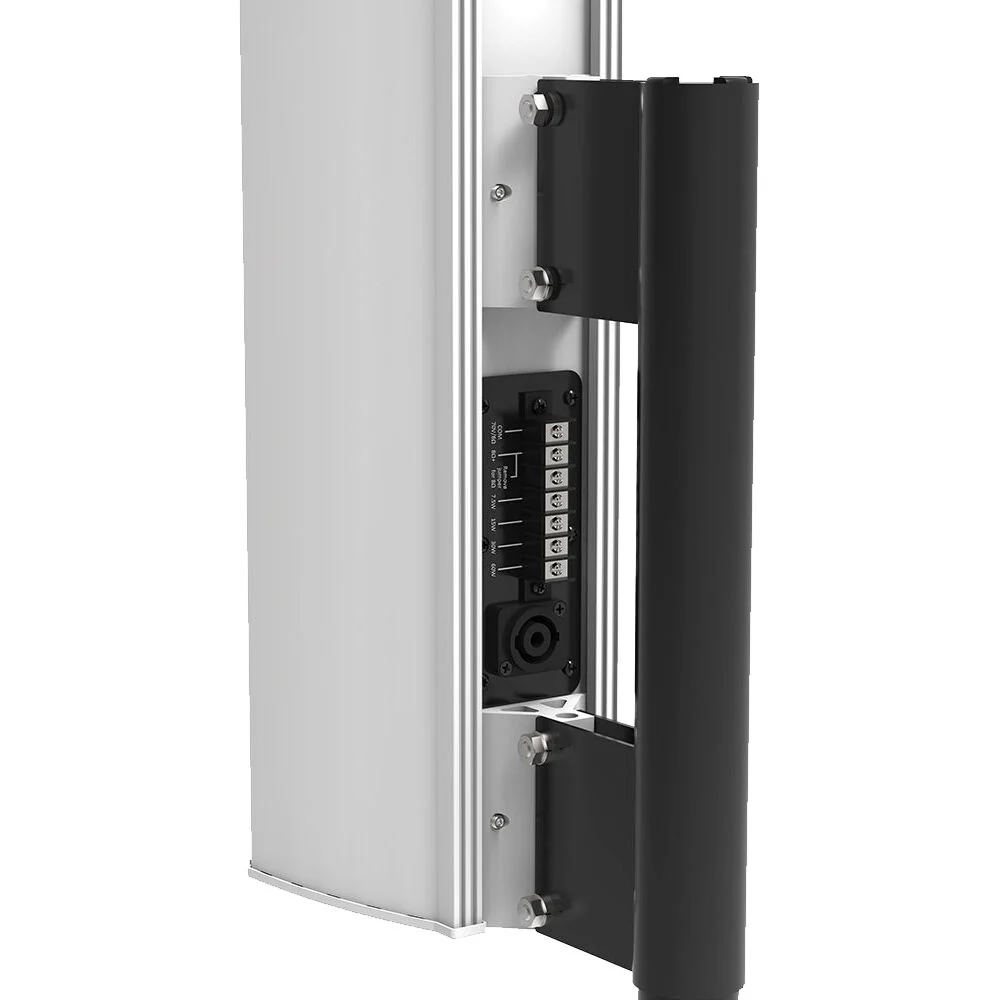

    AtlasIED ALA10TAW Passive 400W 3" 2-Way Line Array Speaker System (White) - Image 3
