Atlas Sound Time Saving Devices TSD-PA122G 12W 2-Channel Power Amplifier (Black)
HomeStore

Atlas Sound Time Saving Devices TSD-PA122G 12W 2-Channel Power Amplifier (Black)

Atlas Sound Time Saving Devices TSD-PA122G 12W 2-Channel Power Amplifier (Black)

$178.02

Original: $593.41

-70%
Atlas Sound Time Saving Devices TSD-PA122G 12W 2-Channel Power Amplifier (Black)—

$593.41

$178.02

The Story

The black Time Saving Devices TSD-PA122G 12W 2-Channel Power Amplifier from Atlas Sound is a reliable 4? stereo amplifier designed for general amplification requirements. The unit adds sound reinforcement to small projector systems as it can provide ample power to drive up to four 8? loudspeakers in a classroom or boardroom.

The TSD-PA122G Amplifier features a balanced stereo phoenix-style connector and unbalanced RCA input options with an output of 12W per channel at 4?, or 24W bridge mono at 8?. The front panel gain controls provide adjustment for both left/right or bridged outputs and these removable knobs can easily be replaced with the included tamper-resistant security covers.

This Time Saving Devices (TSD) Amplifier is designed to overcome some common audio system problems in an easy and efficient way. It is built with high-quality components and includes removable individual I/O connectors for quick and precise wiring, separate ground terminals for all I/Os assuring secured connections, and removable level controls that can be replaced with tamper-resistant security covers.

Features

  • Compact chassis design
  • 12W per channel into 4?
  • 24W bridged into 8?
  • 2 balanced inputs
  • Dual RCA inputs
  • Removable level controls with security covers
  • Peak indicator per channel
  • Input signal indicator per channel
  • Cable management system
  • Multiple mounting configurations
  • Separate ground connections
  • Removable phoenix style I/O connectors
  • Usable as a projector amplifier, zone amplifier, or rear-channel amplifier
  • Meets multiple energy standards

Applications

  • Courtrooms
  • Public forums
  • Restaurants
  • Schools
  • Industrial facilities
  • Houses of worship
UPC: 612079187843
In the Box
Atlas Sound Time Saving Devices TSD-PA122G 12W 2-Channel Power Amplifier (Black)
  • Industrial-Grade Hook-and-Loop Fastener
  • 2 x Bracket
  • 2 x Cable Retainer
  • Limited 3-Year Warranty
Load Rating 8 ?: 6 W x 2 Ch
4 ?: 12 W x 2 Ch
8 ? Bridge Mode: 24 W x 1 Ch
Inputs Type: 2 x unbalanced line
Connection: RCA left and right
Impedance: 10K ? Input Level: 316 mV (-10 dBV)

Type: 2 x balanced line
Connection: Removable 3 position captive screw 3.5 mm spacings
Impedance: 10K ? balanced, 5K ?, unbalanced
Line Input Level: 500 mV (-6 dB) balanced
Outputs Type: 2 x speaker output
Connection: Removable 2 position captive screw 5 mm spacing
Wire Size: 14 gauge maximum
Control Level Control: 2 x removable knob with security cover
Operation Mode Switch: Stereo or bridge
Indicators Input Signal: Green, 2 x 25 mV on threshold
Peak: Red, 2 x -3 dB before clip
Power: Blue
Frequency Response 20 Hz to 20 kHz (�3 dB)
THD 1% @ 1 kHz
Signal to Noise Ratio 80 dBV
Power Requirements @ 8 ?:
Voltage: 24 VDC, 500 mA
Idle Current: 40 mA
Idle Watts: 2.7
Average Current: 140 mA
Average Watts: 10 W
Maximum Current: 510 mA
Maximum VA Watts: 38 W

@ 4 ?:
Voltage: 24 VDC, 1000 mA
Idle Current: 40 mA
Idle Watts: 2.7 W
Average Current: 250 mA
Average Watts: 20 W
Maximum Current: 510 mA
Maximum VA Watts: 38 W

All Current and Watt data is based on AC power consumption using the TSD-PS24V2500mA Power Supply (not included)
Safety Certfication External Power Supply: cUL, CE, RoHS, and TUV
Material Chassis: Aluminum
Dimensions (H x W x D) 1.5 x 4.0 x 2.7" (3.9 x 10.1 x 7.0 cm)
Weight 6.0 oz (170.1 g)
Packaging Info
Package Weight 0.7 lb
Box Dimensions (LxWxH) 5.2 x 3.6 x 2.4"
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

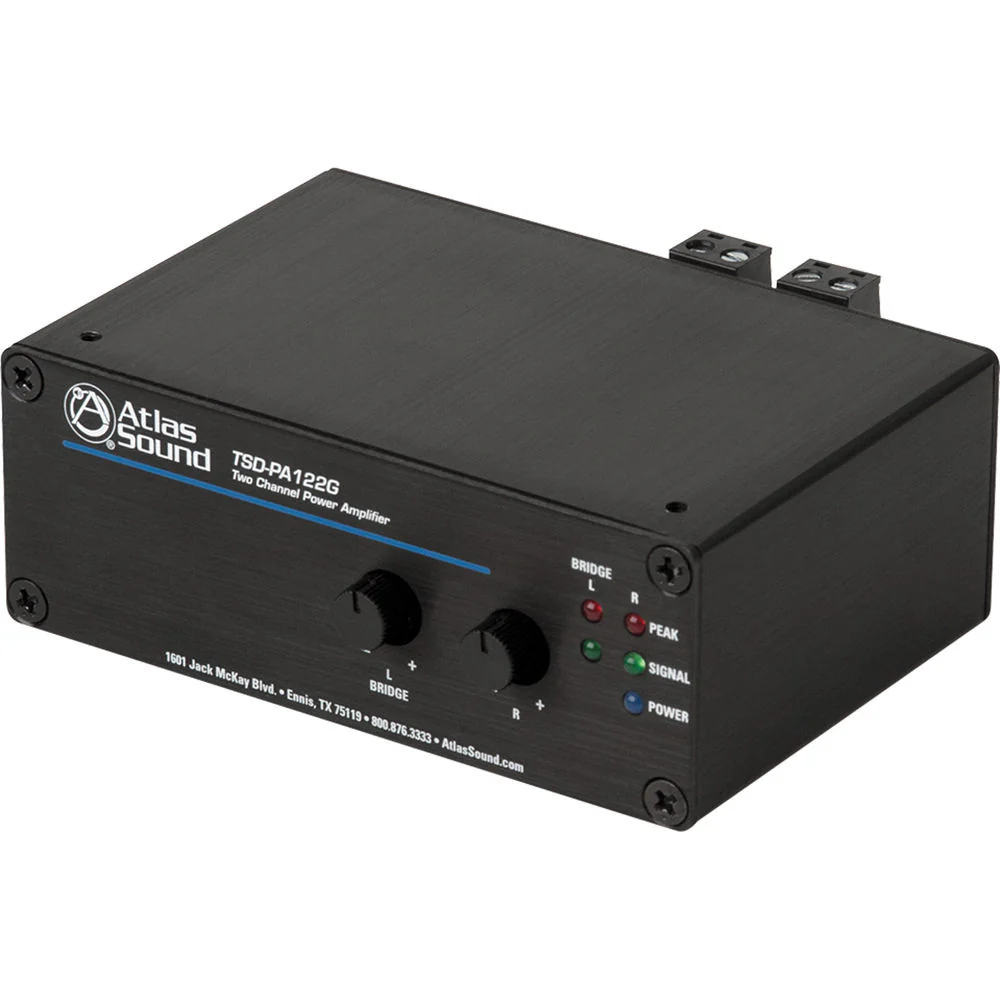

Atlas Sound Time Saving Devices TSD-PA122G 12W 2-Channel Power Amplifier (Black) - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

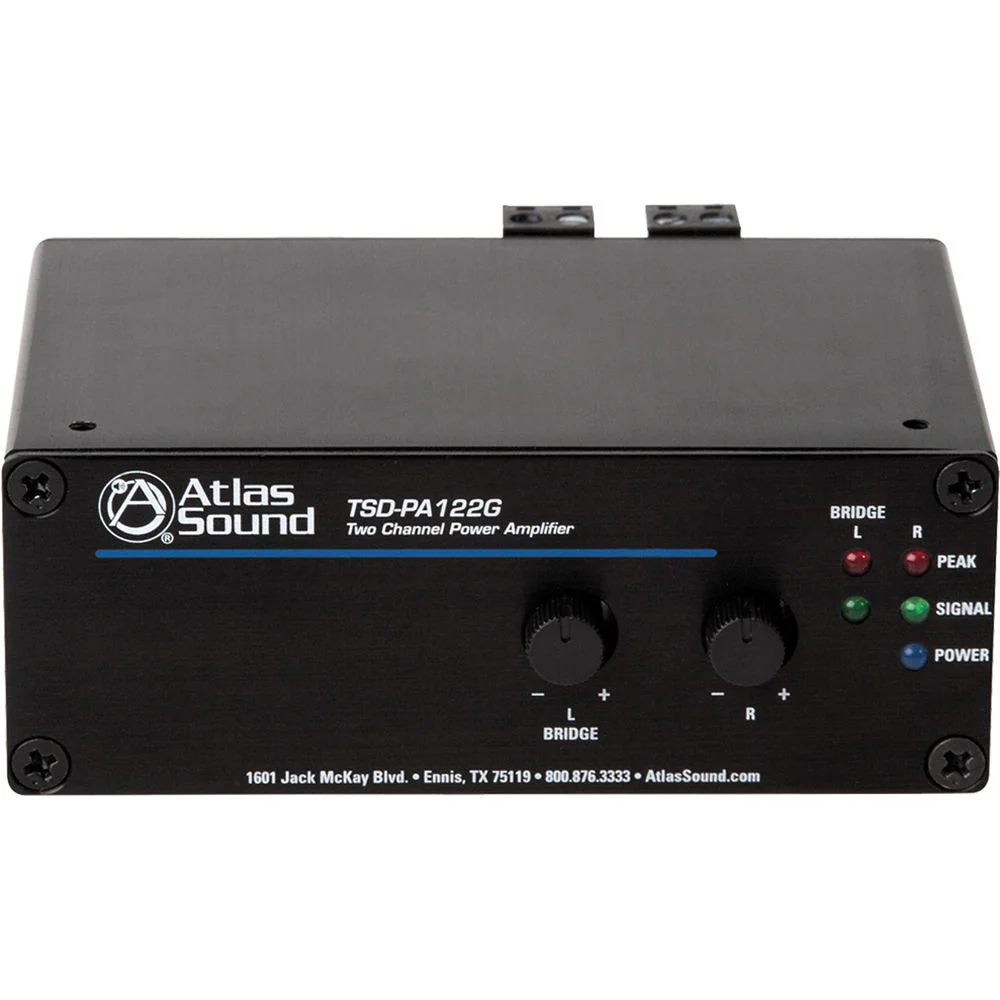

Atlas Sound Time Saving Devices TSD-PA122G 12W 2-Channel Power Amplifier (Black) - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

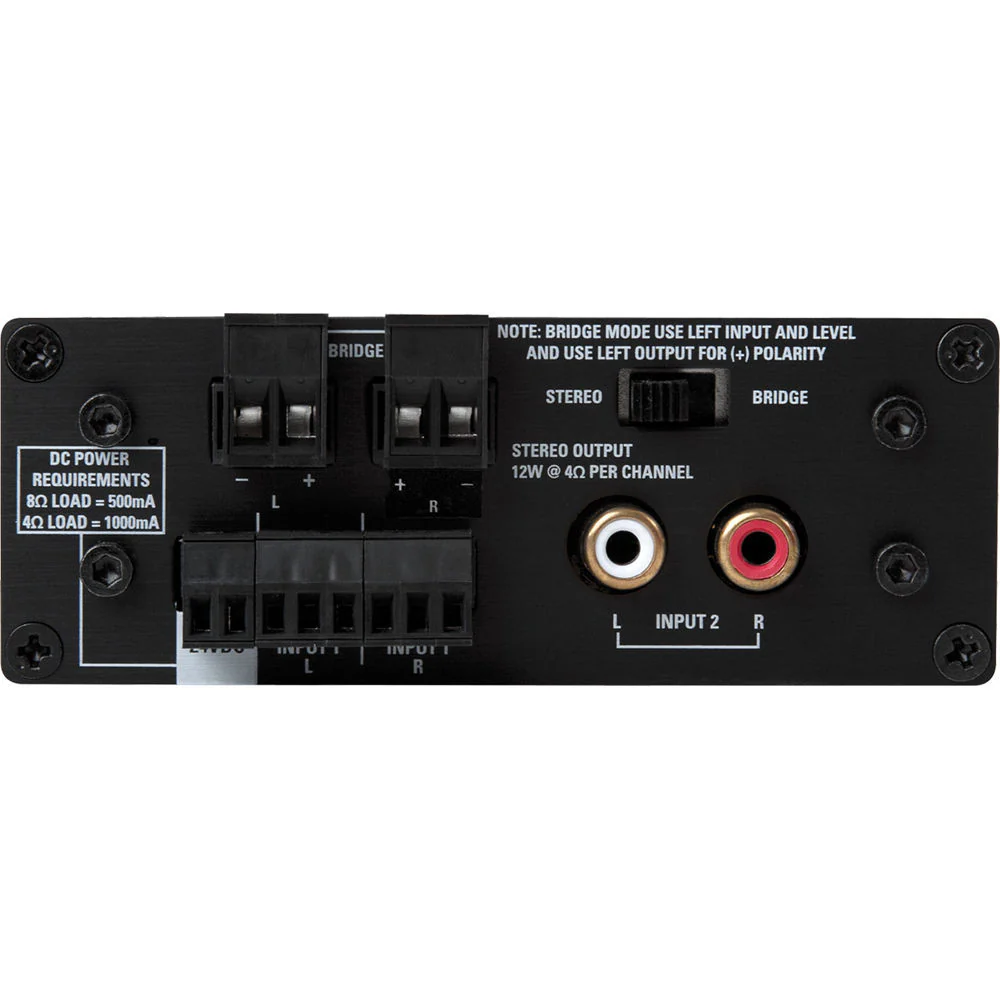

Atlas Sound Time Saving Devices TSD-PA122G 12W 2-Channel Power Amplifier (Black) - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

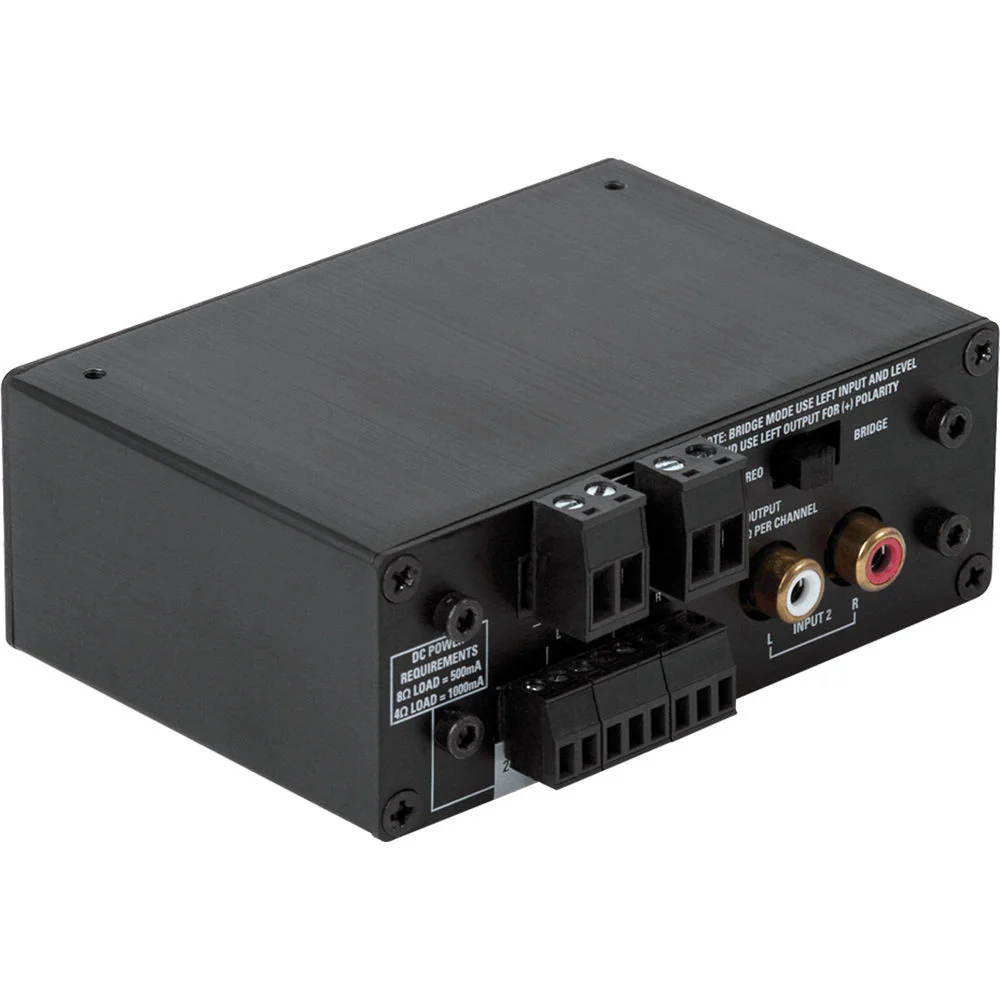

Atlas Sound Time Saving Devices TSD-PA122G 12W 2-Channel Power Amplifier (Black) - Image 5
