Atlas Sound FAP33T Overview

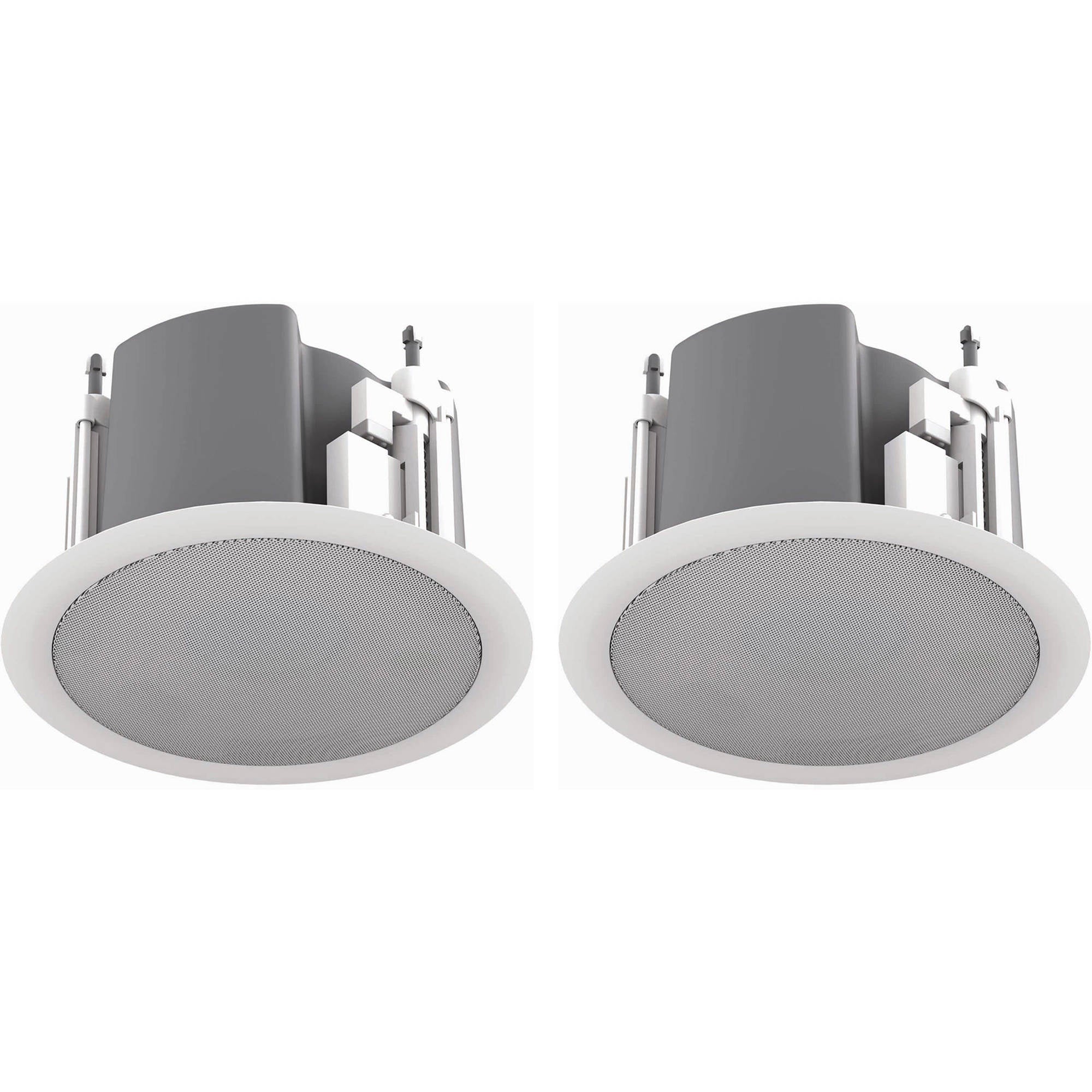

The white FAP33T-W Strategy III Series 3" 70.7/100V-16W Ceiling Loudspeaker from Atlas is a factory assembled loudspeaker that is optimally tuned, ported in an enclosure, and built with a 16W, 70.7/100 V transformer. It can be used in several environments in applications for retail stores, restaurants, recreational facilities, hotels, casinos, and more.

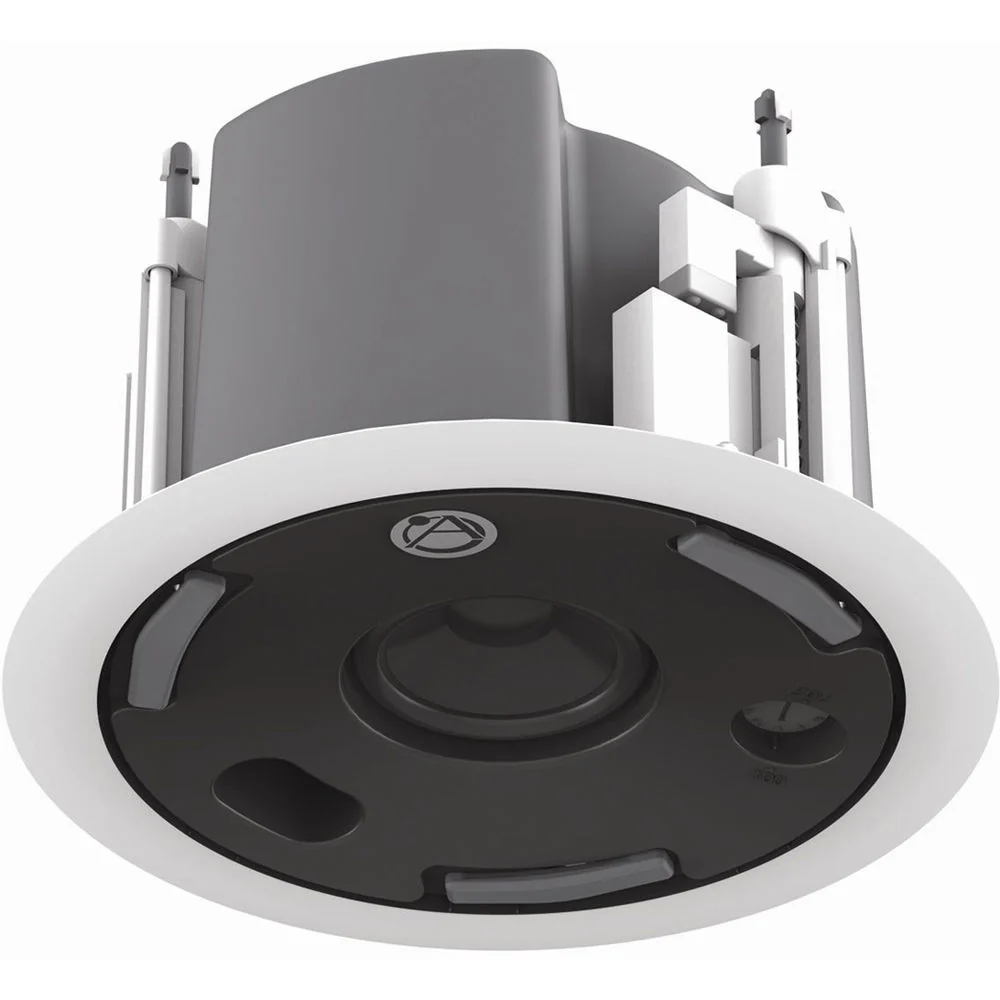

A convenient front mounted selector switch allows tap selection without the need to remove the loudspeaker from the ceiling. This switch also has a transformer bypass setting for 6 Ohm direct coupled operation. In addition, easy installation in drop tile or sheetrock ceilings via the C-Ring/V-Rail tile bridge that is included.
There is a Safety First Mounting System that protects from over-torquing the mounting doglegs during installation and potentially cracking or breaking the mounting system. The result is no install tools required, no over-torqued doglegs, and no rusted screws, and quick installation.
In the Box
- Atlas Sound FAP33T-W Strategy III Series 3" 70.7/100V-16W Ceiling Loudspeaker (Pair, White)
- C-Ring/V-Rail Tile Bridge
Atlas Sound FAP33T Specs
| Type | Two way, full range, coaxial ceiling loudspeaker |
| Operation Mode | Non-powered Passive |
| Operating Range | 60 Hz (-10 dB) |
| Frequency Response | 85 Hz - 12 kHz (±5 dB) |
| Coverage | Vertical: 135° 800 Hz to 4 kHz Horizontal: 135° 800 Hz to 4 kHz |
| Max Input Ratings (6 Ohms) | 25 W continuous, 50 W program 12.5 V RMS, 21.2 V peak |
| Transformer Taps | 70 V: 16 W, 8 W, 4 W, 2 W, and low impedance (6 Ohms) 100 V: 16 W, 8 W, 4 W, and low impedance (6 Ohms) |
| Directivity Characteristic | Q: 13.98 @ 2 kHz DI: 11.45 @ 2 kHz |
| Input Sensitivity | 89.7 dB (@ 1 W/1 m) |
| Max SPL | Passive: 104 dB continuous / 108 dB peak |
| Signal Processing | 90 Hz HPF (recommended) |
| Amplifier Power | 120 W at 6 Ohms (recommended) |
| Low Frequency Driver | 1 x 3" (7.6 cm) |
| Low Frequency Voice Coil | 1 x 0.79" (20 mm) |
| High Frequency Driver | N/A |
| Maximum Output | 104 dB SPLs / 108 dB SPL (peak 6 Ohms) |
| Nominal Impedance | 6 Ohms |
| Minimum Impedance | 5.2 Ohms @ 600 Hz |
| Material of Construction | Enclosure: Powder painted CRS Grille: Powder painted CRS, (RAL9016) paintable Baffle: UL94V-0 PC Mount: Zinc-plated CRS |
| Input Connection Type | 4-Position phoenix type connector |
| Controls | Front-face power taps / low impedance selector switch |
| Mounting | Patented safety first mounting system |
| Safety Features | 1 x safety hang point |
| Safety Rating | UL Listed to comply with UL1480, UL2043 and CSA60065 Suitable for use in air handling spaces per NFPA 70 and NFPA 90 |
| Ingress Protection | IP-21 |
| Environmental Testing | Humidity: MIL-STD-810G / High and Low Temperature: -4.0 and 158°F (-20 and 70°C) |
| Cutout Diameter | 7.625" (193.7 mm) |
| Dimensions | 8.78 x 8.78 x 5.39" (223 x 223 x 136.9 mm) |
| Weight | 4.14 lb (1.88 kg (unit w/c-ring) 2.1 lb (.95 kg) (2V-rails) |
