Atlas Sound DR-32 Overview

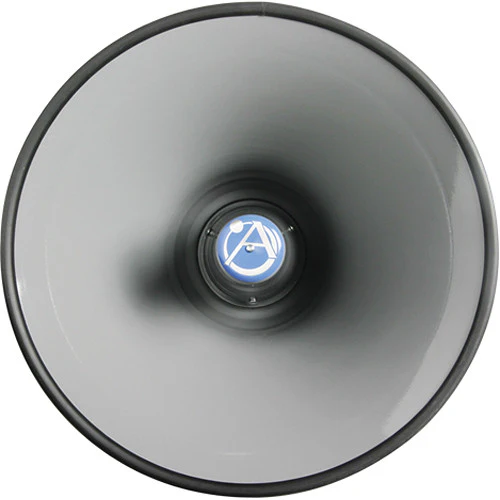

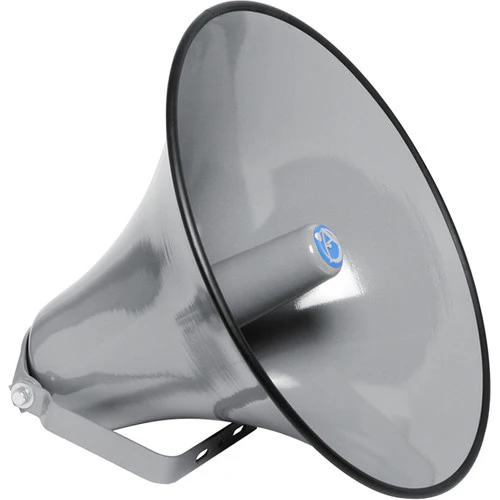

The Atlas Sound DR-32 95° Uniform Coverage Horn is designed for use with compression driver units to offer superior music and voice communications over distance and ambient noise.
The circular projectors are equipped with a resonance damping ring for high response through an extended frequency range. The weather-resistant units can accommodate Atlas Sound PD and SD Series compression drivers or any driver with standard 1 3/8" -18 male thread coupling.
The integral U-type steel mounting bracket provides maximum directional aiming flexibility and enhances installation capability when used outdoors or in industrial environments. This rugged all-metal, exponentially-flared horn is finished in durable grey epoxy.
The DR-32 Horn finds application in sport facilities, amusement parks, church towers, warehouses, factories, military sites, transportation terminals, and other environmentally demanding locations.
In the Box
- Atlas Sound DR-32 95 Uniform Coverage Horn
- Limited 5-Year Manufacturer Warranty (Part and Labor)
Atlas Sound DR-32 Specs
| Dispersion | 95° |
| Frequency Cut Points | 190 Hz |
| Directivity | Factor (Q): 10.7 |
| Depth | 12.50" (31.75 cm) |
| Length | Air Column: 2.5' (0.7 m) |
| Diameter | 16.50" (41.91 cm) |
| Weight | 11.0 lb (4.9 kg) |
| Package Weight | 11.85 lb |
| Box Dimensions (LxWxH) | 19 x 18.7 x 13.3" |
