Atlas Sound AP-30 Overview

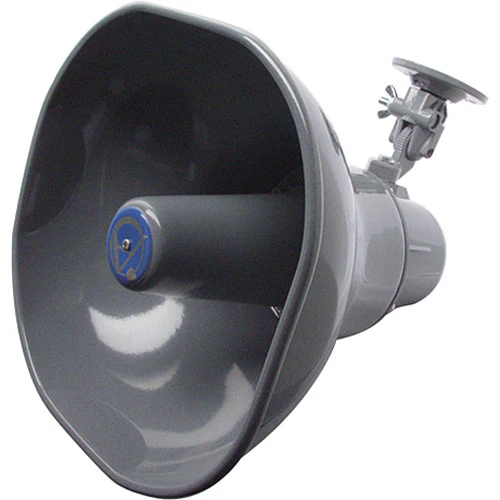

The gray AP-30 8? 30W Horn Loudspeaker from Atlas Sound is a double re-entrant loudspeaker which delivers 30W of continuous power handling, intelligibility, and remarkable efficiency. This loudspeaker operates within a nominal frequency response range of 300 Hz to 12 kHz, and offers a sensitivity of 121 dB at rated power to provide clear voice and signal communication.
The AP-30 Loudspeaker provides high-intelligibility voice and signal transmission for high-power indoor and outdoor public address, intercom, security, alarm, or industrial signal systems. The unit incorporates high-efficiency compression drivers to project through high ambient sound levels, over long distances and in wide open areas with fewer loudspeakers. It is designed for applications such as commercial buildings, distribution centers, industrial warehouses, institutions, civic centers, and recreational facilities.
The included Omni-Purpose mounting bracket achieves precise positioning in the vertical and horizontal planes with a single adjustment and includes provisions for loudspeaker installation on conventional surfaces as well as for strap mounting on i-beams or pillars. The Loudspeaker is weather-resistant with metallic construction and matching ABS plastic with metal components finished in gray epoxy.
In the Box
- Atlas Sound AP-30 8? 30W Horn Loudspeaker (Gray)
- BX-1A Aluminum Cover Plate
- Limited 5-Year Manufacturer Warranty
Atlas Sound AP-30 Specs
| Impedance | 8 ? |
| Power Rating | 30 W, continuous |
| Frequency Response | 300 to 12,000 Hz (nominal) 500 Hz to 4,500 Hz (±5 dB) |
| Sensitivity | 126 dB at 30 W (peak) 121 dB at 30 W / 1 m (avg) 500 to 4,500 Hz 108 dB at 1 W / 1 m (avg) 500 to 4,500 Hz |
| Dispersion | 60? (-6 dB, 2,000 Hz octave band) |
| Temperature Range | -40 to 70?F (-40 to 70?C) |
| Dimensions | 11.0 x 10.0 x 10.5" (27.9 x 25.4 x 26.7 cm) |
| Weight | 4.5 lb (2.0 kg) |
| Package Weight | 36 lb |
| Box Dimensions (LxWxH) | 11 x 11 x 11" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
