Original: $2,422.95
-70%$2,422.95
$726.88The Story
Asustor Lockerstor 8 Overview
- 1Description
- 2Dual 10- and 2.5-Gigabit Ethernet Ports
- 3SSD Cache
- 4Room to Grow
- 5Cooling Design
- 6DDR4 RAM
- 724/7 Reliability and Durability

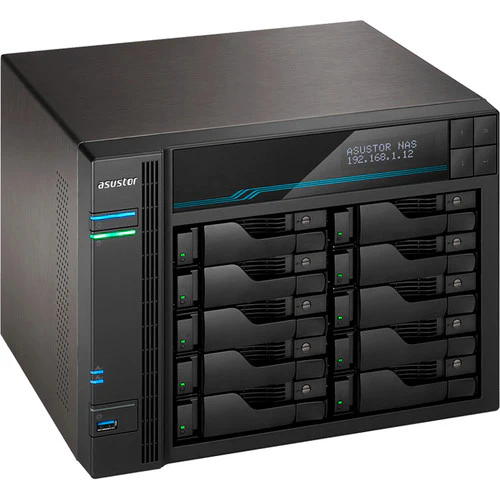

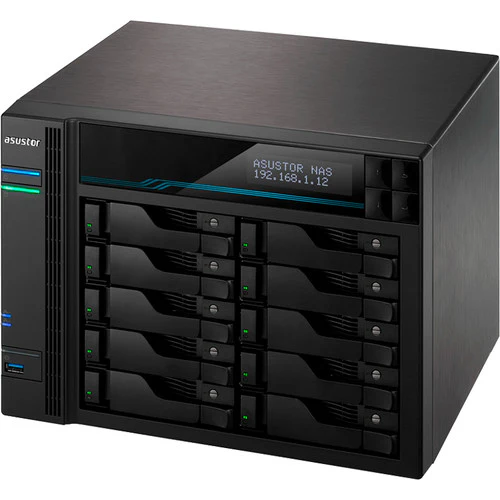

Streamline performance and storage with the Lockerstor 10 10-Bay NAS Server Enclosure from Asustor. Designed to provide ample storage for enterprise environments, this NAS array enclosure features 10 drive bays, each able to accommodate a 2.5 or 3.5" SATA III drive. Utilizing a 2.8 GHz Intel ATOM C3538 Quad-Core CPU and 8GB of DDR4 RAM for responsive processing, this NAS also sports four RJ45 ports. Two of these ports support 10-Gigabit Ethernet and the other two support 2.5-Gigabit Ethernet. As a result, the Lockerstor is capable of delivering RAID 5 read and write speeds up to 2348 and 1040 Mb/s using 10GbE and up to 565 and 553 Mb/s with 2.5GbE. Additional supported RAID modes include RAID 0, 1, 6, and 10, as well as Single and JBOD modes. Hot spares are also supported.

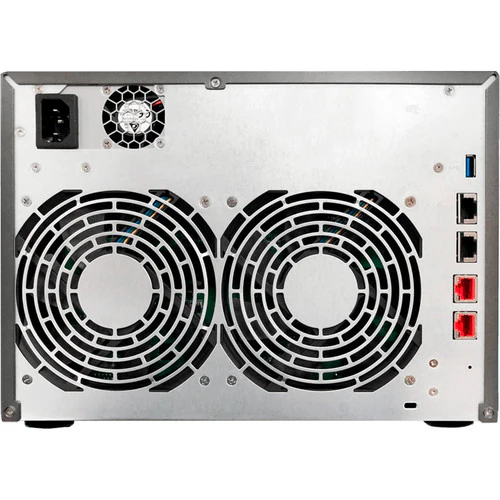

In addition to its four RJ45 ports, this NAS also boasts two USB 3.2 Gen 1 Type-A ports for connecting peripherals or expansions. And speaking of expansion, users can also take advantage two empty M.2 PCIe 2280 SSD bays to install their own cache drives, resulting in faster performance. In addition to 256-bit AES encryption, the Asustor Lockerstor 10 also features external protections made to withstand drops and burns. Boasting two 120mm fans with WPM control, this NAS also incorporates taller heatsinks for better heat dissipation over older server models. Running on Asustor's ADM 3.4 OS, the Lockerstor also supports Windows, MacOS, UNIX, and Linux systems. In addition to supporting a range of featured and mobile apps, the Lockerstor 10 can support up to 4096 accounts, 512 separate groups, 512 shared folders, and 512 concurrent connections.
Dual 10- and 2.5-Gigabit Ethernet Ports
SSD Cache
Room to Grow
Cooling Design
DDR4 RAM
24/7 Reliability and Durability
In the Box
- Asustor Lockerstor 10 10-Bay NAS Server Enclosure
- AC Adapter
- 2 x Cat 5e RJ45 LAN Cable
- 2 x Cat 6a 10GbE LAN Cable
- Limited 3-Year Warranty
- Description
- Dual 10- and 2.5-Gigabit Ethernet Ports
- SSD Cache
- Room to Grow
- Cooling Design
- DDR4 RAM
- 24/7 Reliability and Durability
Asustor Lockerstor 8 Specs
| CPU | 2.1 GHz Intel ATOM C3538 Quad-Core |
| Total Installed Memory | 8 GB DDR4 |
| User-Replaceable Memory | 1 x 8 GB |
| Total Memory Slots | 2 x SO-DIMM |
| Maximum Memory Capacity | 32 GB |
| Number of Bays | 10 x 2.5"/3.5" 2 x M.2 (2280) |
| Connections | 2 x USB Type-A (USB 3.1 / USB 3.2 Gen 1 (5 Gb/s)) 2 x RJ45 (10GbE) 2 x RJ45 (2.5GbE) |
| Compatible Drive Interface | SATA III, NVMe |
| Media Card Slots | None |
| Maximum Filled Capacity | 288 TB (with Expansion) |
| Form Factor | Desktop |
| RAID Modes | RAID 0, 1, 10, 5, 6, JBOD, Single |
| Wake on LAN | Yes |
| Link Aggregation and Failover Support | Yes |
| Supported Protocols | AFP CIFS/SMB FTP HTTP HTTPS NFS Proxy Rsync SFTP SMB 3.0 SNMP SSH Syslog TFTP WebDAV iSCSI |
| iSCSI LUN | 256 |
| iSCSI Target | 256 |
| Max Concurrent Connections | 512 |
| Max Folders | 512 |
| Max Groups | 512 |
| Max User Accounts | 4096 |
| Max Cameras Supported | 4 |
| Installed Operating System | ADM 3.4 |
| Supported File Systems | Internal: BTRFS, EXT4 External: BTRFS, EXT3, EXT4, FAT32, HFS+, NTFS, exFAT |
| OS Compatibility | Windows XP or Later Windows Server 2003 or Later macOS 10.6 or Later UNIX Linux |
| Supported Browsers | Chrome, Edge, Firefox, Internet Explorer, Safari |
| Supported Languages | Czech Danish Dutch English Finnish French German Hungarian Italian Japanese Korean Norwegian Polish Portuguese Russian Simplified Chinese Spanish Traditional Chinese Turkish |
| Encryption | 256-Bit AES |
| Security Features | None |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Source | AC Adapter |
| Power Consumption | 76.8 W |
| PSU Wattage | 1 x 250 W |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 5 to 95% |
| Certifications | BSMI, C-Tick, CE, FCC, VCCI, as per Manufacturer |
| Status Monitoring | LCD Screen |
| Cooling | 2 x PWM 120 mm Fans |
| Noise Level | 22 dBA |
| Dimensions | 11.54 x 8.48 x 9.06" / 293 x 215.5 x 230Â mm |
| Weight | 14.1Â lb / 6.4Â kg |
| Package Weight | 19.375 lb |
| Box Dimensions (LxWxH) | 16.3 x 14.6 x 13.7" |
