-70%ASUS ROG STRIX 1000W 80 PLUS Platinum White Edition Modular Power Supply—
$469.42
$140.83The Story
ASUS 1000P-GAMING Specs
Key Specs

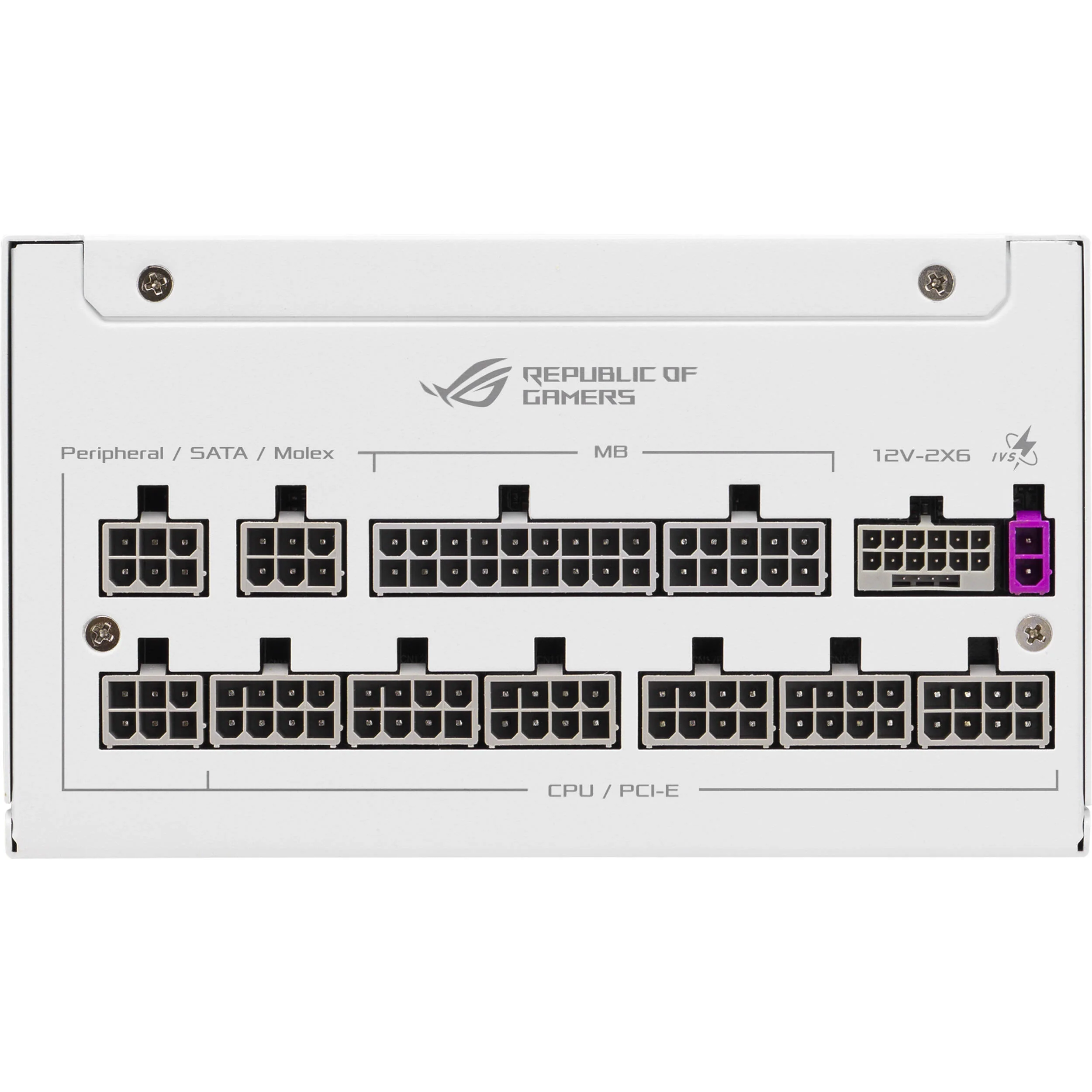

| Total Connectors |
1x 20+4-Pin ATX Motherboard
Show More
2x 4+4-Pin EPS CPU 1x 16-Pin PCIe (12VHPWR) 4x 6+2-Pin PCIe 6x 15-Pin SATA 3x 6-Pin SATA / Peripheral |
| Cable Design |
Etched
|
| Total Wattage |
1000 W
|
| Number of +12 V Rails |
1
|
| Efficiency Rating |
80 PLUS Platinum
|
| Form Factor |
ATX
|
Connectivity
| Total Connectors |
1x 20+4-Pin ATX Motherboard
2x 4+4-Pin EPS CPU 1x 16-Pin PCIe (12VHPWR) 4x 6+2-Pin PCIe 6x 15-Pin SATA 3x 6-Pin SATA / Peripheral |
| Cable Design |
Etched
|
| PCIe Connector Distances |
29.5" / 750 mm
|
| SATA Connector Distances |
15.7" / 400 mm
20.5" / 520 mm 25.2" / 640 mm |
| Peripheral Connector Distances |
15.7" / 400 mm
21.7" / 550 mm 27.6" / 700 mm |
| EPS Connector Distances |
39.4" / 1000 mm
|
Electrical
| Total Wattage |
1000 W
|
| Number of +12 V Rails |
1
|
| Combined Power for +12 V |
1000 W
|
| Max Load for +12 V |
83.3 A
|
| Combined Power for +3.3/+5 V |
130 W
|
| Max Load for +3.3 V |
25 A
|
| Max Load for +5 V |
25 A
|
| Max Power for +5 Vsb |
15 W
|
| Max Load for +5 Vsb |
3 A
|
| Max Power for -12 V |
3.6 W
|
| Max Load for -12 V |
0.3 A
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
General
| Efficiency Rating |
80 PLUS Platinum
|
| Active Power Factor Correction |
No
|
Cooling
| Fan Size |
120 mm
|
| Bearing Type |
Ball
|
| Noise Level |
0 dBA
|
Physical
| Form Factor |
ATX
|
| Compliance |
ATX v3.1
|
| Protection |
Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection
|
| Certifications |
RoHS
|
| Dimensions |
6.3 x 5.9 x 3.4" / 160 x 150 x 86 mm
|
| Weight |
3.99 lb / 1.81 kg
|
Additional Resources
No additional resources available
