ASUS Prime AP201 Overview
- 1Description
- 2I/O Connections
- 3Cooling Capabilities
- 4DIY Design
Save room on your desk or entertainment system with the ASUS Prime AP201 Micro-ATX Case. Designed for those who prefer small builds the Prime AP201 features robust functionality and utility in a compact package.

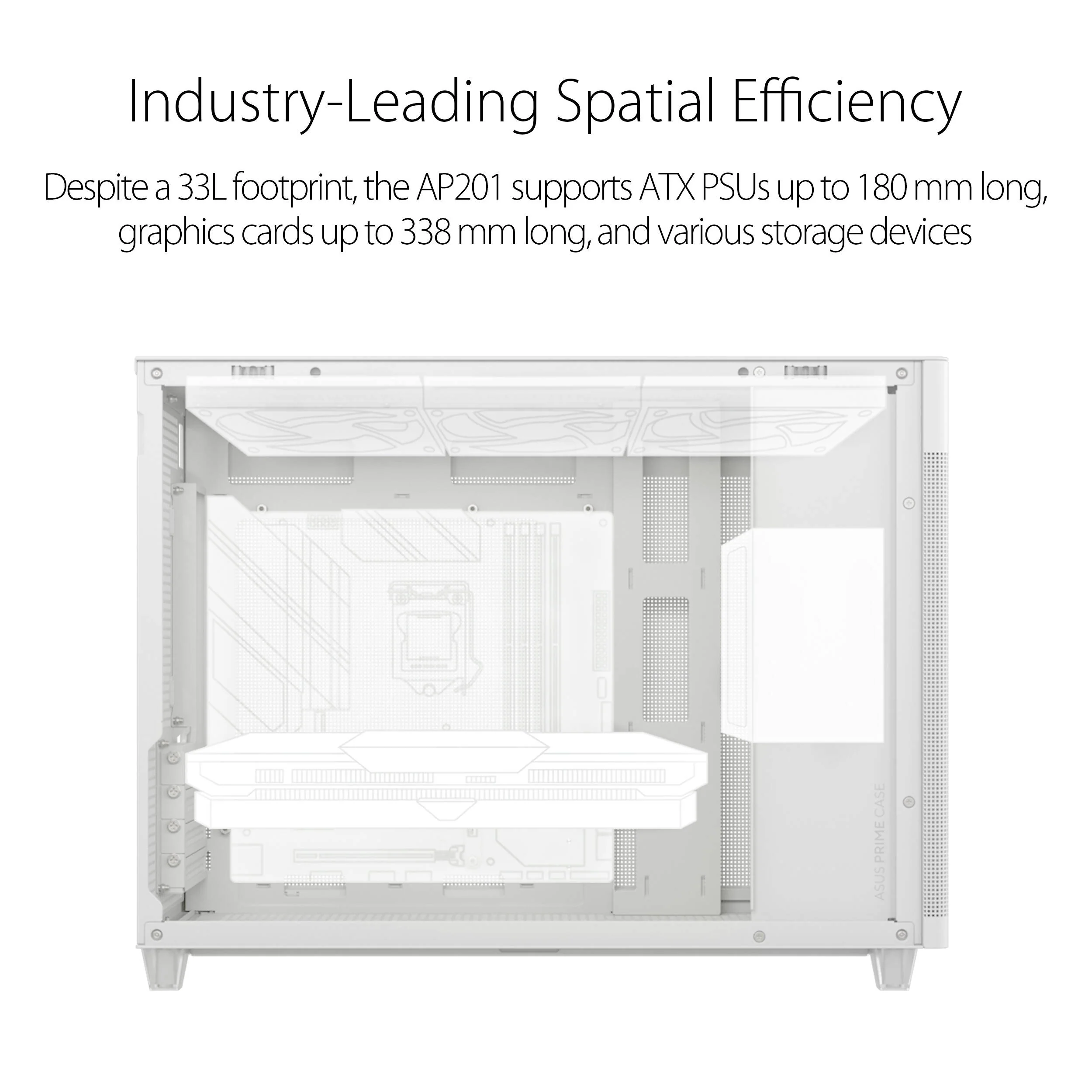

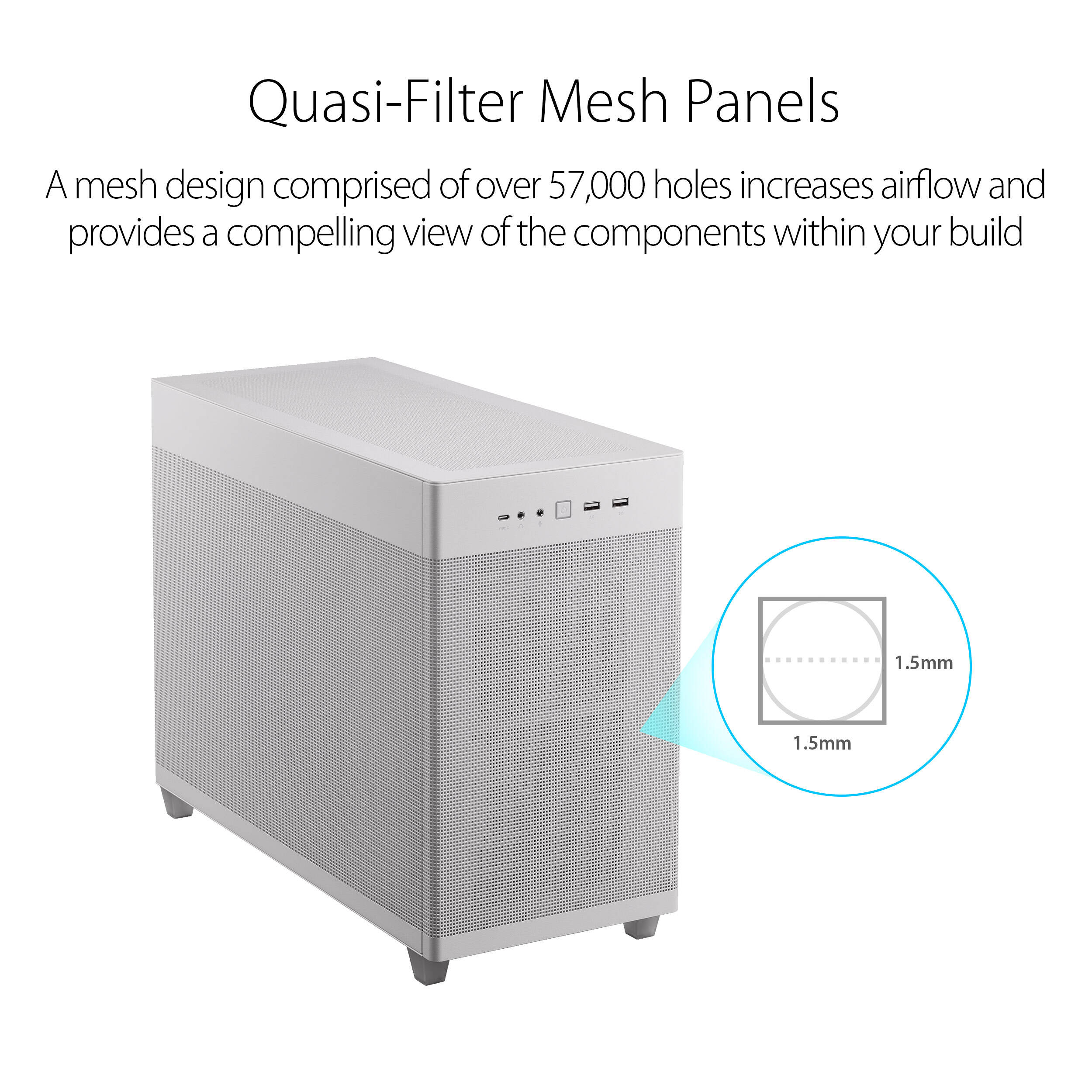

Intended for micro-ATX and mini-ITX motherboards, the AP201 can leverage performance-focused components without affecting performance. You get four expansion slots plus enough clearance to install graphics cards up to 13.3" in length and CPU coolers up to 6.7" tall. Construct your digital library with support for various storage drives with one 2.5" bay located behind the motherboard plate and three other placements for 2.5 or 3.5" drives at the bottom and front of the AP201. Front panel I/O ports give you instant access to two USB 3.2 Gen 1 Type-A ports, one USB 3.2 Gen 2 Type-C port, and dual 3.5mm audio jacks for microphone and headphone support. Despite the reduced size, you can install a variety of cooling fans as well as radiators up to 360mm in length. The mesh wrap-around panels also enhance cooling capabilities to ensure your system remains cool even under heavy loads.
In the Box
- ASUS Prime AP201 Micro-ATX Case (White)
- Screw Kit
- 12 x Rubber Washers
- Standoff Tool
- 8 x Cable Ties
- Description
- I/O Connections
- Cooling Capabilities
- DIY Design
ASUS Prime AP201 Specs
| Motherboard Support | Micro-ATX, Mini-ITX |
| External Drive Bays | None |
| Internal Drive Bays | 1 x 2.5" and 3 x 2.5/3.5" |
| Expansion Slots | 4 x Full Height |
| Maximum GPU Length | 13.3" / 338Â mm |
| CPU Cooler Height | 6.7" / 170Â mm |
| Supported PSU Size | ATX |
| Maximum PSU Length | 7.1" / 180Â mm |
| PSU Mounting Location | Middle |
| Fan Mounting (Rear) | 1 x 120 mm |
| Fan Mounting (Top) | 3 x 120 mm or 2 x 140 mm |
| Fan Mounting (Bottom) | 2 x 120 mm |
| Fans Included (Rear) | 1 x 120 mm |
| Maximum Radiator Size (Rear) | 120 mm |
| Maximum Radiator Size (Top) | 360 mm |
| Fan Controller Included | No |
| Filter Locations | Bottom |
| I/O | 2 x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 1 x USB-C (USB 3.1/3.2 Gen 2) |
| Media/Memory Card Slot | None |
| Audio I/O | 1 x 3.5 mm Input 1 x 3.5 mm Output |
| Display Connections | None |
| Windowed Panel | No |
| Color | White |
| Built-In Lighting | No |

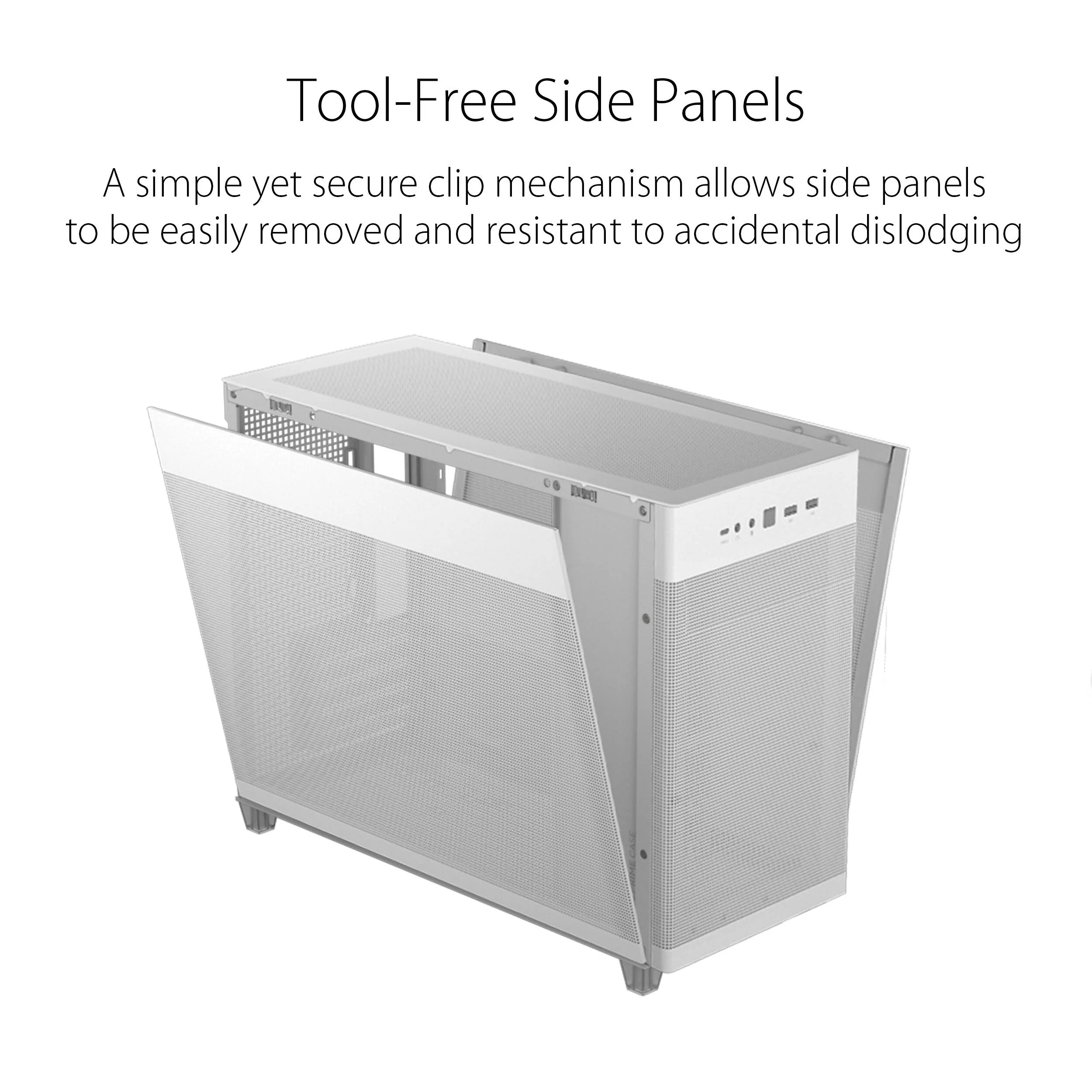

| Tool-Less Design | Yes |

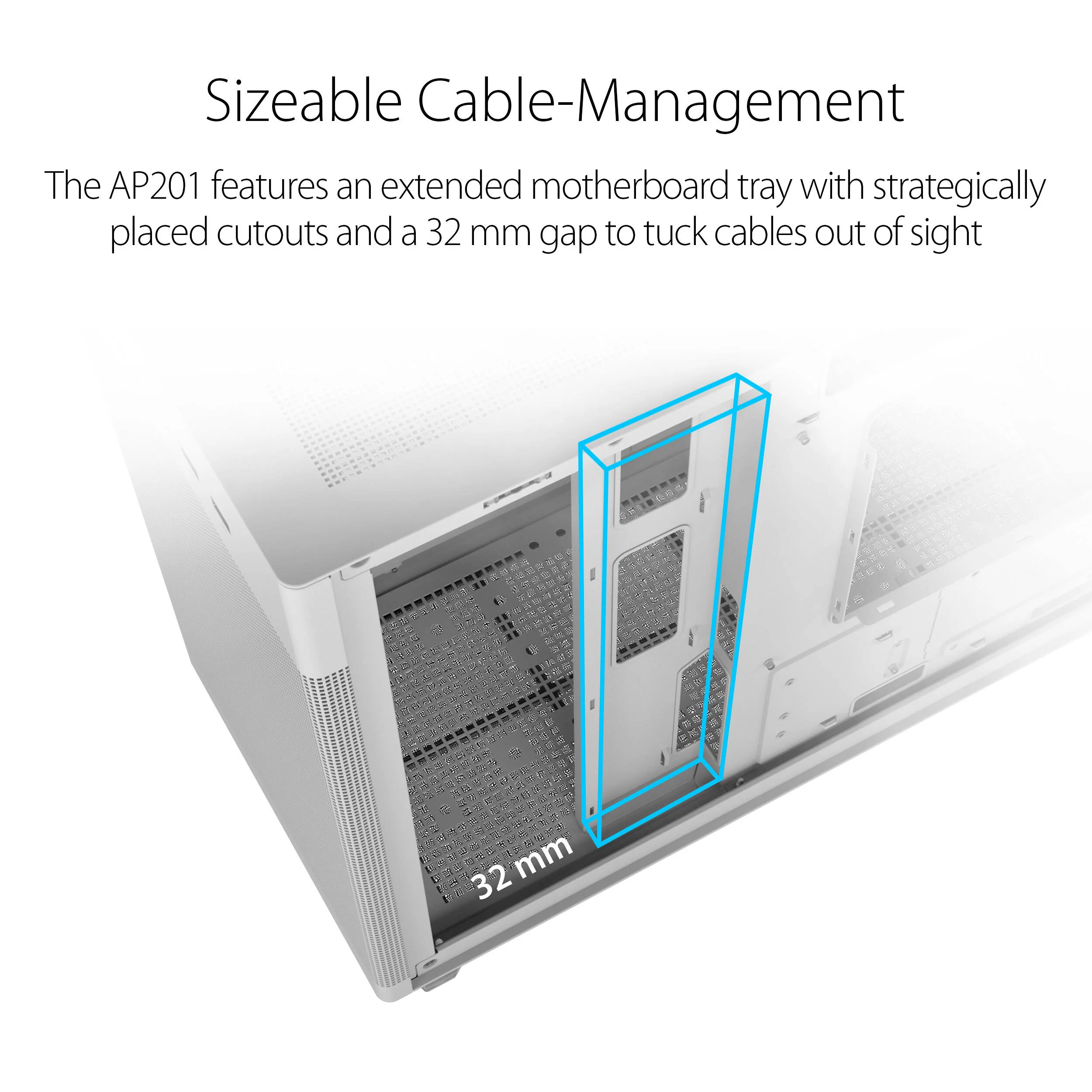

| Cable Management Space | 1.3" / 32Â mm |
| Dimensions (W x H x D) | 0.7 x 1.1 x 1.5' / 205 x 350 x 460Â mm |
| Weight | 12.8Â lb / 5.8Â kg |
| Package Weight | 16.16 lb |
| Box Dimensions (LxWxH) | 20.6 x 17.3 x 12.1" |
ASUS Prime AP201 Reviews
