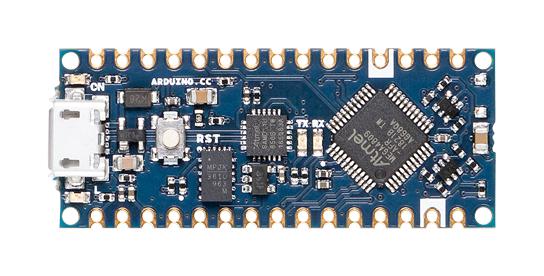

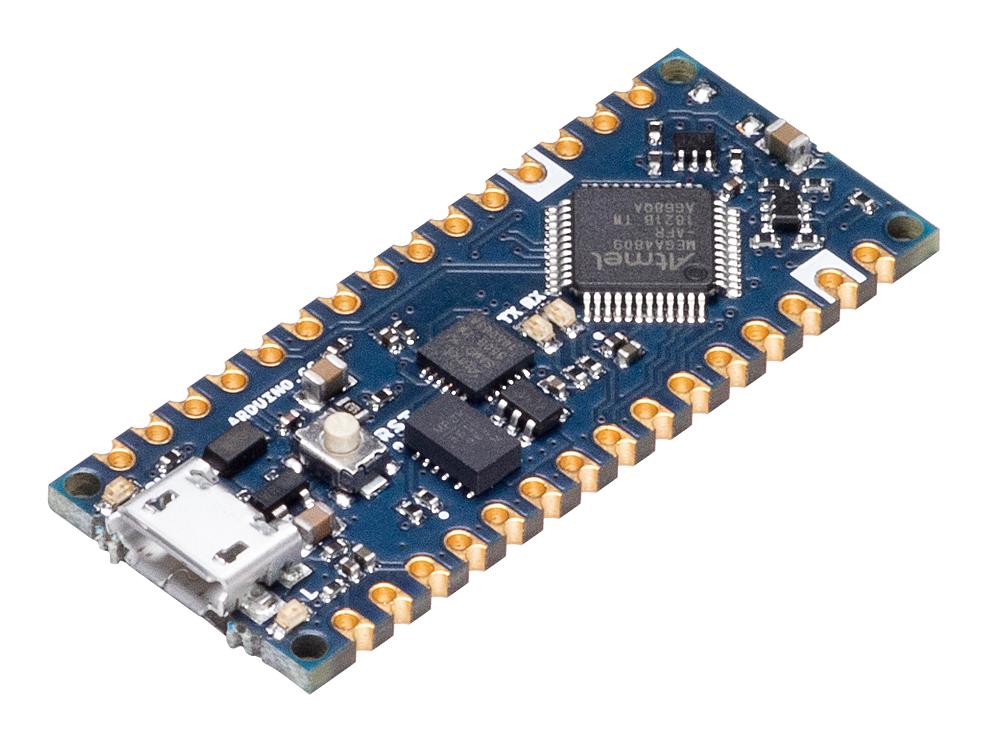

Arduino ABX00028 ABX00028 Nano Every Development Board ATMega4809 8-Bit 5V

Arduino Nano Every is an Arduino's 5V compatible board in the smallest available form factor. It is a preferred board for many projects requiring a small and easy to use microcontroller board. The small footprint and low price, make the Nano Every particularly suited for wearable inventions, low cost robotics, electronic musical instruments and general use to control smaller parts of a larger projects. The Arduino Nano Every is an evolution of the traditional Arduino Nano board but features a lot more powerful processor, the ATMega4809. This will allow to make larger programs than with the Arduino Uno (it has 50% more program memory) and with a lot more variables (the RAM is 200% bigger). This small, robust and powerful board has the same classic Nano footprint loved worldwide. It can be programmed with the easy to use Arduino IDE available offline and online.

• Operating voltage of 5V
• Input voltage range from 7V to 21V
• Clock speed of 20MHz
• 48KB CPU flash memory, 6KB SRAM, 256byte EEPROM (ATMega4809)
• 5 PWM pins 5 (D3, D5, D6, D9, D10), UART, SPI, I2C
• Length is 45mm, width is 18mm, weight is 5g (with headers)

Product details

Silicon Manufacturer	Microchip
No. of Bits	8bit
Silicon Family Name	ATmega
Core Architecture	AVR
Core Sub-Architecture	-
Silicon Core Number	ATmega4809

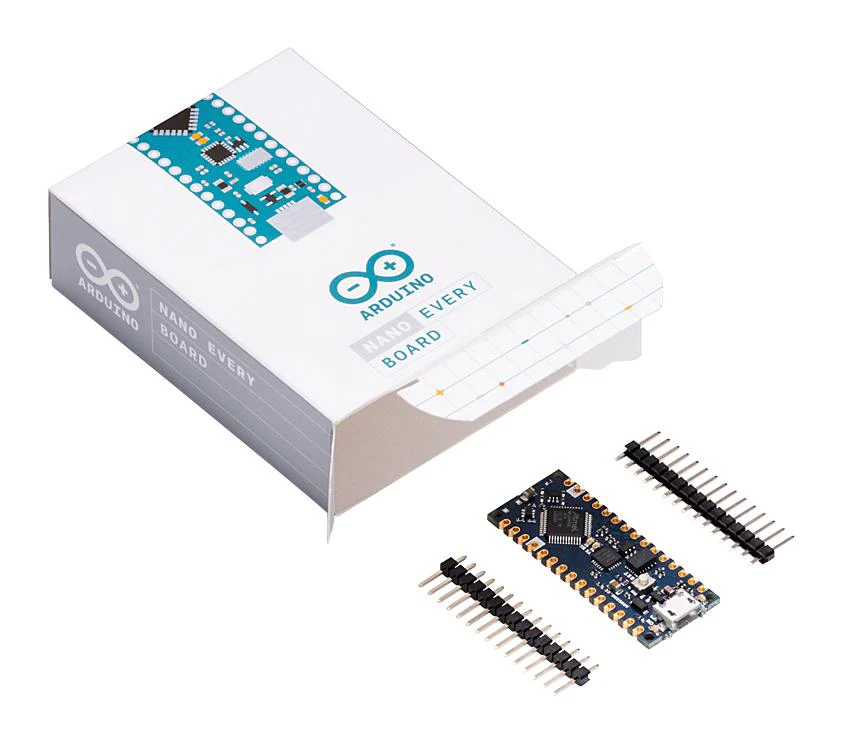

Kit Contents	Nano Every Development Board ATmega4809
Product Range	-

Other details

Brand	ARDUINO
Part Number	ABX00028
Quantity	Each
Technical Data Sheet EN
