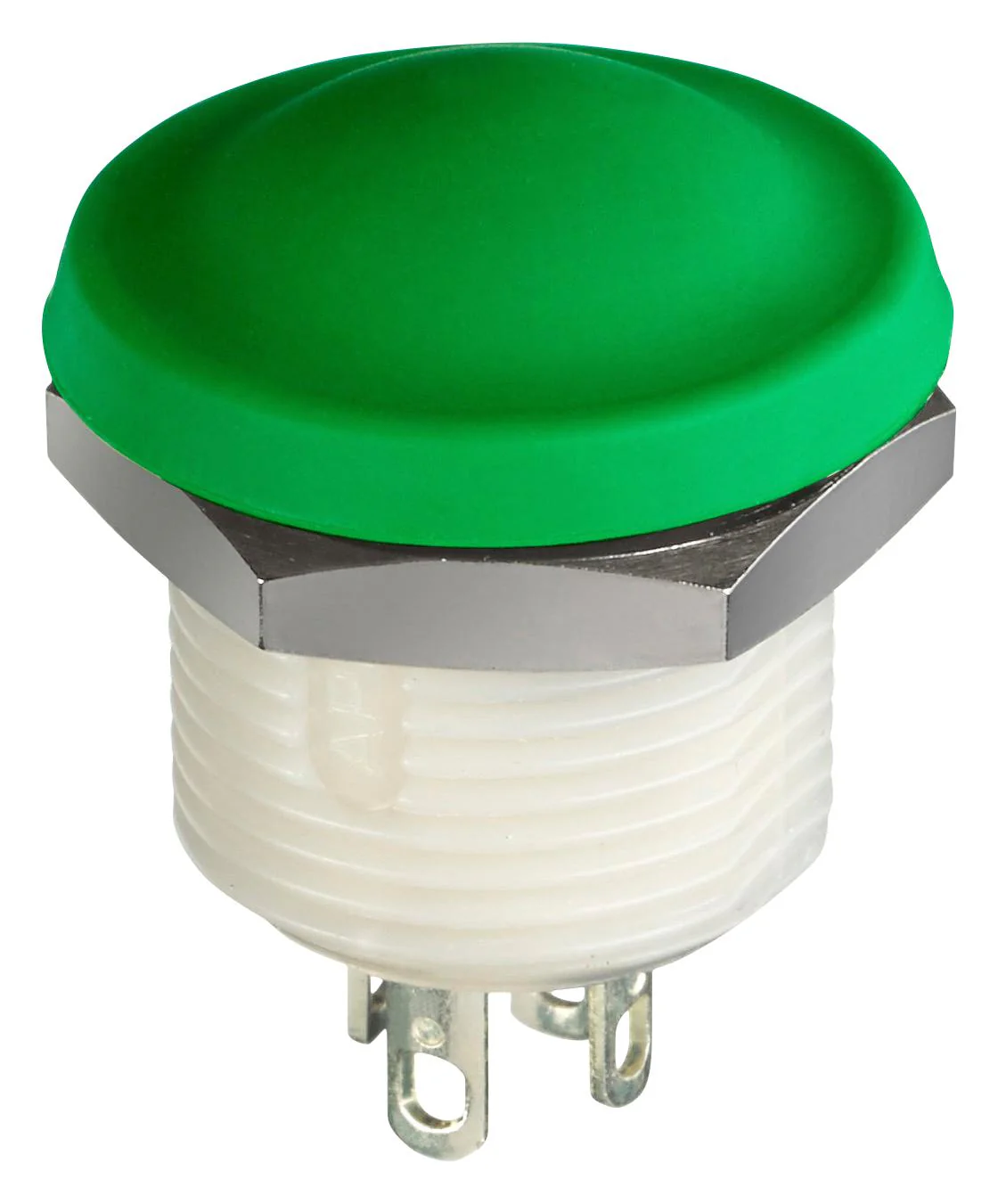

-70%APEM IXP3S13M Industrial Pushbutton Switch, IX Series, 12 mm, SPST-NO, Momentary, Round Domed, Green—
$17.06
$5.12The Story
IXP3S13M is an IX series pushbutton switch for harsh environments.
- Round, elastomeric membrane actuator shape
- Normally open (NO) electrical function
- Solder lugs terminal
- Silver contacts and 1500Vrms dielectric strength
- Green actuator colour and non-illuminated LED
- Backlighted marking in a compact case
- Strong tactile feedback
- High sealing level, no space between actuator and bushing (IP67/IP69K
- Shock resistance: 100 g according to IEC 512-4, test 6c and salt spray: IEC 512-6, test 11f
Product details
| Product Range: IX Series |
| Panel Cutout Diameter: 12mm |
| Contact Configuration: SPST-NO |
| Switch Operation: Momentary |
| Pushbutton Actuator Style: Round Domed |
| Actuator / Cap Colour: Green |
| Contact Current AC Max: - |
| Contact Voltage VAC: - |
| Contact Current DC Max: 2A |
| Contact Voltage VDC: 28V |
| IP Rating: IP67, IP69K |
| Switch Mounting: Panel Mount |
| Switch Terminals: Solder Lug |
| Illumination Colour: Non Illuminated |
| Panel Cutout (H x W): - |
Other details
| Brand | APEM |
| Part Number | IXP3S13M |
| Quantity | Each |
| Technical Data Sheet EN |  |
