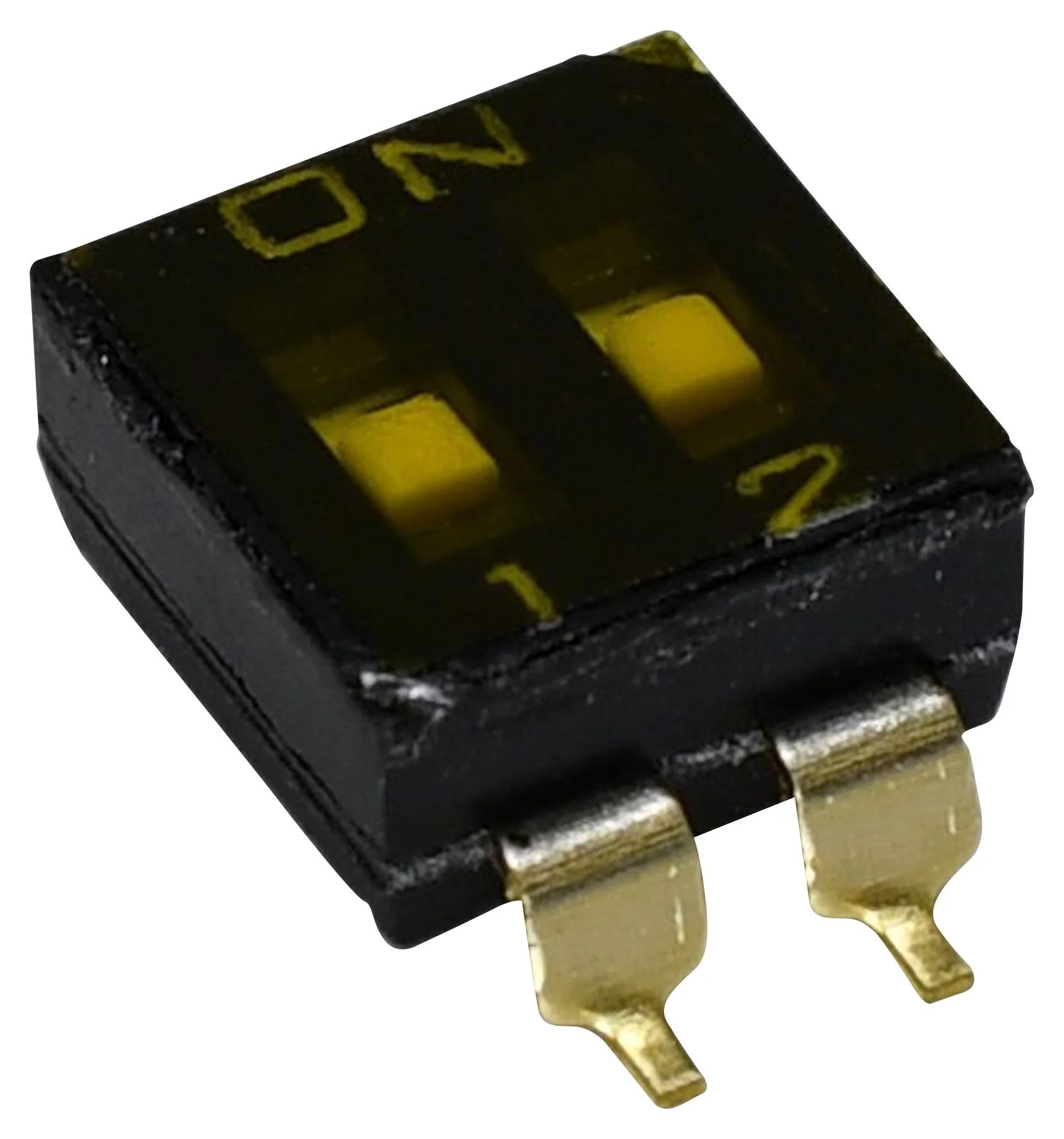

APEM IKD0203000 DIP / SIP Switch, 2 Circuits, Recessed, Surface Mount, SPST-NO, 24 V, 25 mA

IKD0203000 is a two way, SMT gull wing recessed actuator IC tube switch. It is ideal for applications with low current. It is also a smart choice when your control panel requires many switches to control the electronics. Installation with the PCB makes the mounting simpler and with added security as there is just one connector to plug. This switch is quite often more compact than panel switches and therefore an excellent choice when space is limited. Furthermore, it is excellent for achieving a flush-with-panel look.

• Designed for reliable operation with positive detent action
• Self-cleaning wiping contacts, gold plated terminals
• Maximum switching current is 25mA, maximum switching voltage is 24VDC (non-switching: 100mA/50VDC)
• Maximum initial contact resistance is 50mohm
• Minimum insulation resistance is 100Mohm at 500VDC
• 500VAC min dielectric strength, 2,000 cycles electrical life
• UL94-V0 case and actuator, polyimide protection tape
• Operating temperature range from -20°C to +85°C
