Original: $756.32
-70%$756.32
$226.90The Story
- 12 Total Outlets
- 10 x C13 and 2 x C19 Outlets
- Distribute 120V, 208V, or 230V of Power
- 1U Rack-Mountable Design
- 3680 VA Load Capacity
- 8.2' Cord Length

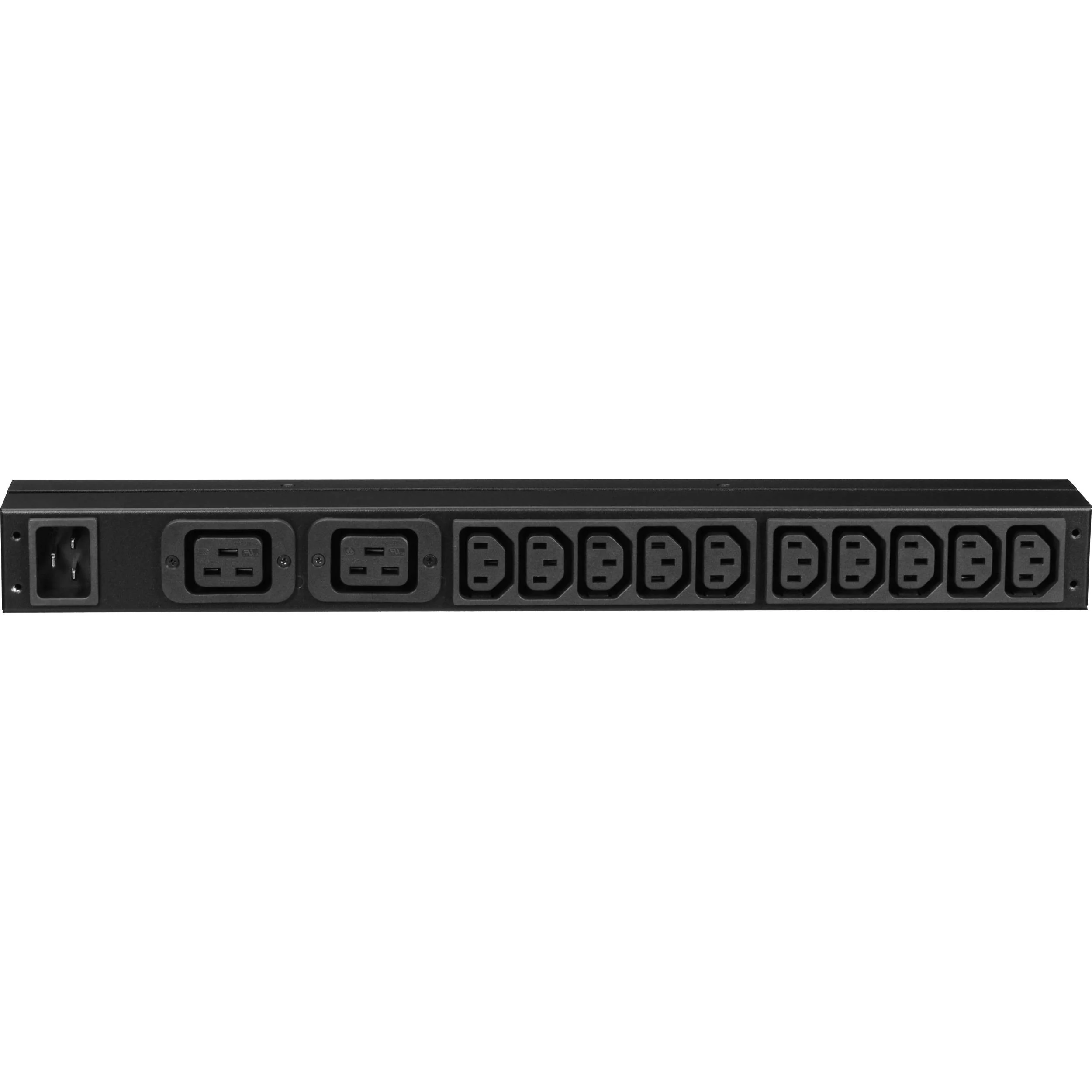

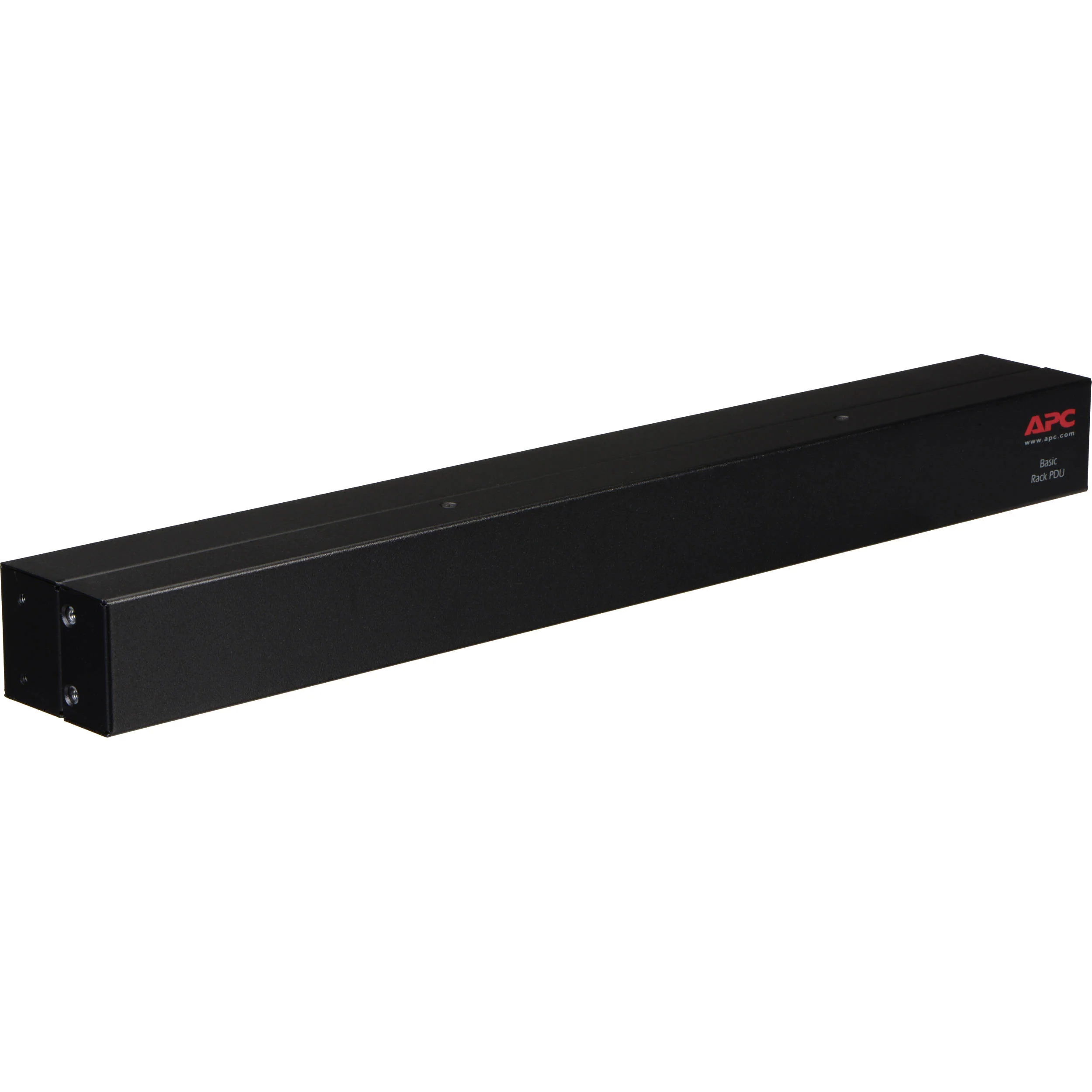

The APC AP9559 12-Outlet Rack Power Distribution Unit features a variety of outlets and a 1RU form factor so you can provide power closer to your rack-mountable equipment. This PDU supplies power from one branch whip to multiple pieces of equipment. It comes with two C19 and ten C13 outlets that distribute 120V, 208V, or 230V of power. Included along with the AP9559 PDU is an 8.2' power cord.
- Mounts horizontally or vertically without the need for tools
- Provides a number of outlets closer to the rack
- A variety of input and output connections that distributes 120V, 208V, or 230V of power to multiple outlets
- Supplies power from one branch whip to multiple pieces of equipment
- 8.2' Power Cord

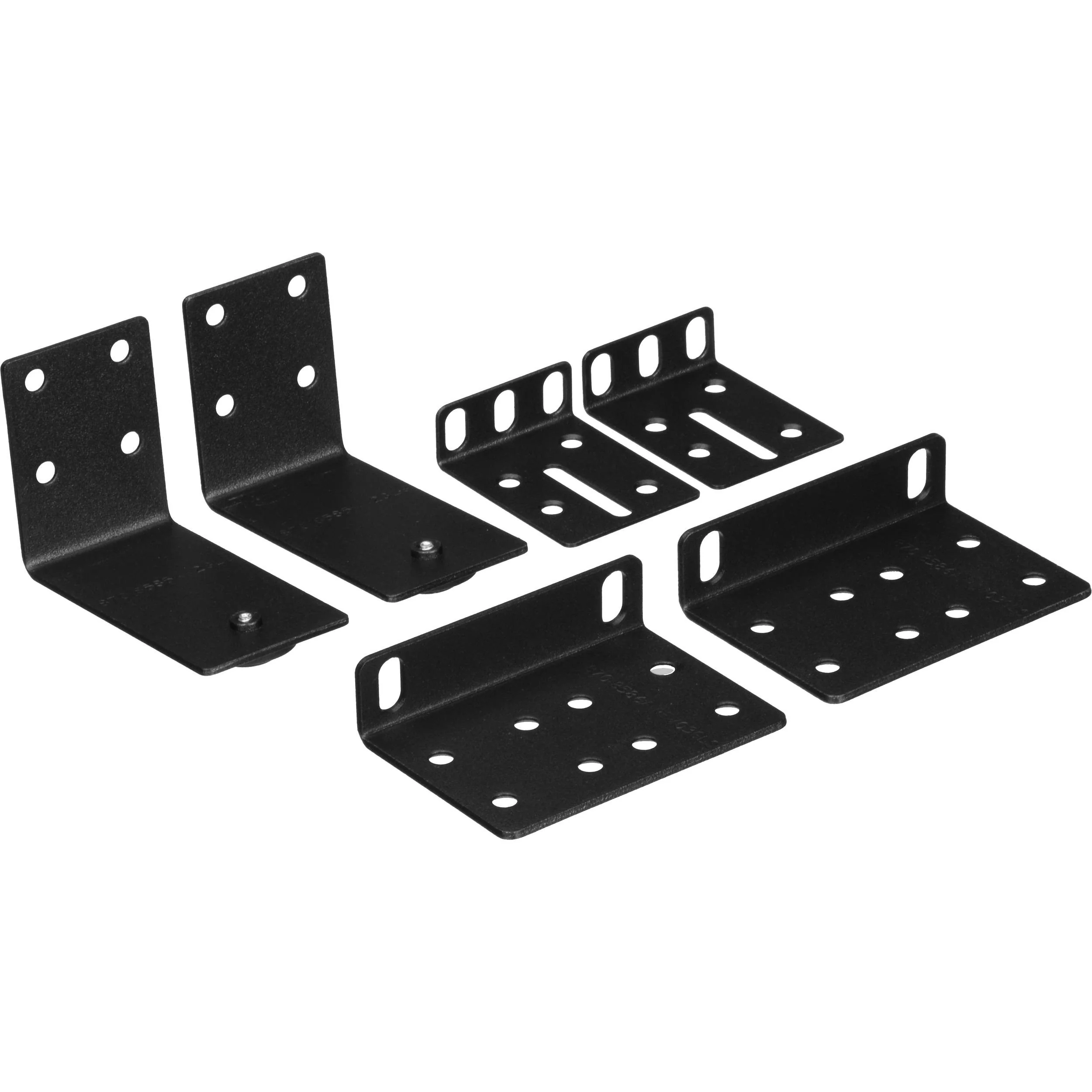

- Mounting Brackets
- Limited 2-Year Warranty
| Output | |
|---|---|
| Nominal Output Voltage | 120 V, 208 V, and 230 V |
| Overload Protection | No |
| Maximum Total Current Draw per Phase | 16 |
| Output Connections | 2 x IEC 320 C19 (battery backup) 10 x IEC 320 C13 (battery backup) |
| Input | |
|---|---|
| Nominal Input Voltages | 120 V, 208 V, and 230 V |
| Input Connections | IEC 320 C20 |
| Acceptable Input Voltage | 90 to 250 VAC |
| Load Capacity | 3680 VA |
| Maximum Input Current | 16 A |
| Maximum Line Current per Phase | 16 A |
| Environmental | |
|---|---|
| Temperature | Operating: 32 to 113�F / 0 to 45�C Storage: -13 to 149�F / -25 to 65�C |
| Humidity | Operating: 0 to 95% Storage: 0 to 95% |
| Elevation | Operating: 0 to 9,843' / 0 to 3,000 m Storage: 0 to 49,213' / 0 to 15,000 m |
| Conformance | |
|---|---|
| Approvals | cUL CE UL VDE Victoria RoHS PEP EOLI China RoHS |
| Physical | |
|---|---|
| Form Factor | 1RU |
| Cord Length | 8.2' / 2.5 m |
| Dimensions (H x W x D) | 1.7 x 17.6 x 2.2" / 4.4 x 44.7 x 5.7 cm |
| Weight | 2.16 lb / 0.98 kg |
| Packaging Info | |
|---|---|
| Package Weight | 5.1 lb |
| Box Dimensions (LxWxH) | 19.3 x 6.8 x 6.3" |
