The Story

Anchor Audio WB-EXT500 Overview

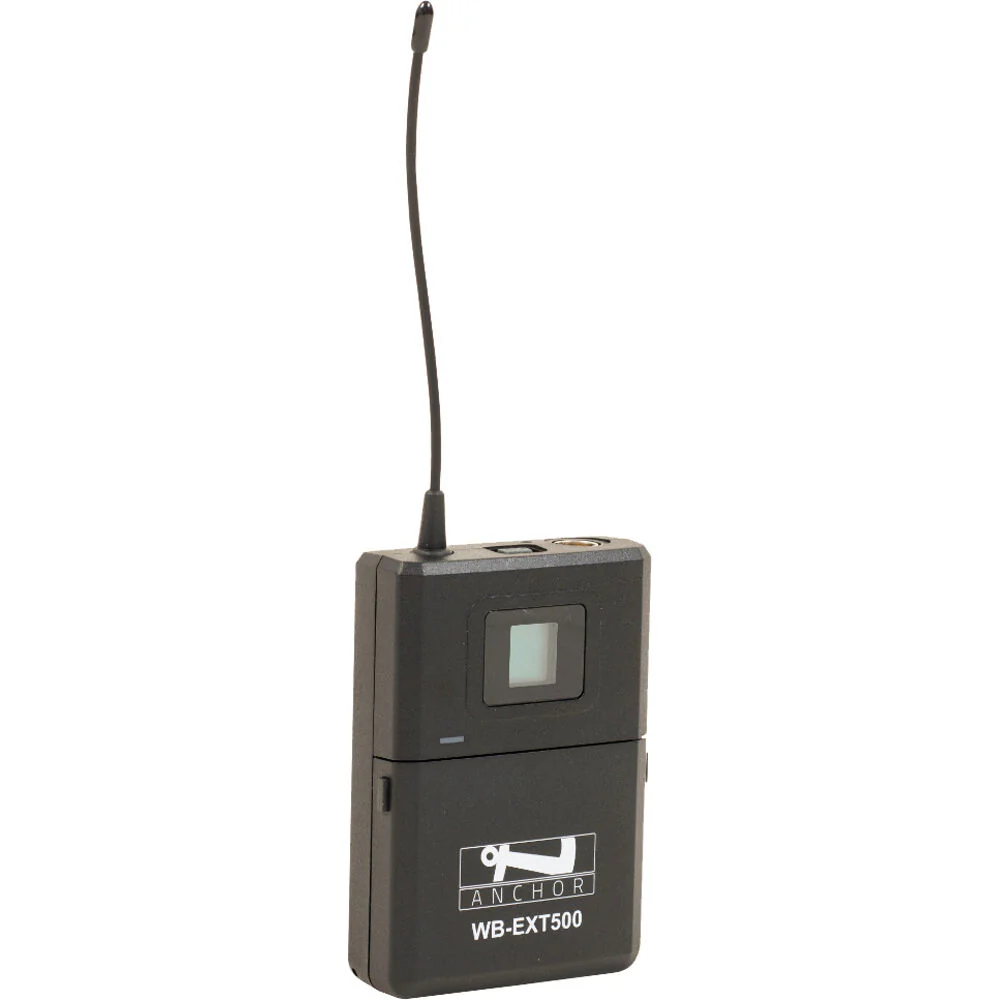

The Anchor Audio WB-EXT500 Wireless Beltpack Transmitter is a professional-quality UHF wireless transmitter that operates in the 540 to 570 MHz bandwidth. The beltpack is compatible with the WR-EXT500 wireless receiver and features a TA4F connector (mini-XLR) that's compatible with a variety of microphones, including headband, collar, and lapel microphones.

The beltpack transmitter features a power On/Off button, a Mute button, LED indicators, an LCD display for channel number and battery power level, and a battery compartment, which holds two AA batteries. A gain switch sets the audio input and offers -20, -10, and 0 dB settings.

Built-in talk/mute button
Mini-XLR (TA4F) connector is compatible with lapel and headset microphones
Gain switch adjusts audio input (-20, -10, 0 dB)
700 selectable channels
Set interference-free channels by using automatic frequency setting
540 to 570 MHz wireless frequency range
Over 100 dB of dynamic range
Manual, preset, and automatic frequency scan function
UPC: 819941016403

In the Box

  • Anchor Audio WB-EXT500 Wireless Beltpack Transmitter with TA4F Plug
  • Limited 2-Year Warranty

    Anchor Audio WB-EXT500 Specs

    Microphone Connector Mini-XLR TA4F Connector
    Display LCD Display for Channel Number and Battery Power Level
    Controls Power Button
    Power LED: Indicates Power/Battery Level
    Mute Button: Toggles Between Mute and Unmute
    SYNC Button: Actuates the Synchronization Process with Receiver
    Indicators Green: Ready
    Flashing Green: The Synchronization Process is Actuated
    Flashing Red: Low-Battery Power with Less than 10 Minutes of Operation Left
    Blue: Mute Status
    Frequency Range UHF 540 to 570 MHz (Regionally Selected)
    Channel Selection SYNC with Receiver
    RF Power Output 10 mW Max
    Frequency Stability ±0.005%
    Spurious Emission >60 dB Below Carrier Frequency
    Gain 0, -10, -20 dB Settings
    Battery 2.4 V (2 x 1.2 V AA Size Rechargeable Batteries)
    3 V (2 x 1.5 V AA Size Batteries)
    Battery Access Battery Compartment: 2 x AA Dry or Rechargeable Batteries
    Current Consumption 120 mW ±10 mA
    Dimensions 3.8 x 2.5 x 1" / 9.7 x 6.4 x 2.4 cm
    Weight 0.2 lb / 860 g

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
