ANALOG DEVICES DS1925EVKIT# Evaluation Kit, DS1925 iButton High-Density Temperature Logger, 122KB Data-Log Memory

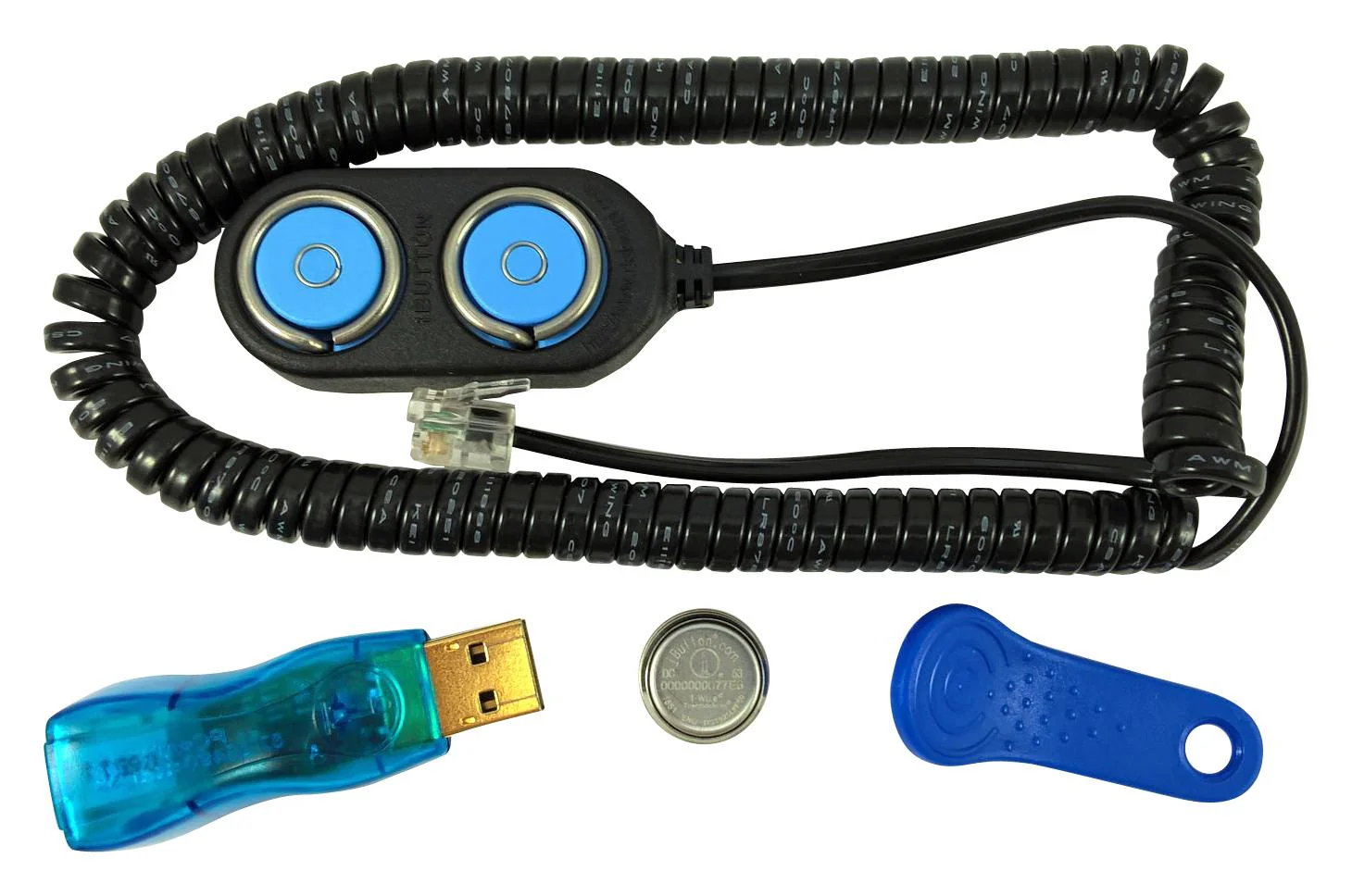

DS1925EVKIT# is a DS1925 Thermochron iButton® starter kit. It provides the basic hardware for a quick evaluation of Maxim�s Thermochron iButton family that communicates using the 1-Wire protocol. The kit uses a USB port of a PC running Windows® operation system. The kit includes DS1925L Thermochron iButton and all the hardware required to communicate with it. The DS1925L is a high-capacity Thermochron capable of 122K 8-bit readings or 61K 16-bit readings taken at equal distances. The easy setup process includes the free downloadable 1-Wire® drivers and the OneWireViewer demonstration software to communicate easily with iButtons through the PC�s USB port. Suitable for Bio Science, food safety, pharmaceutical and medical products high-temperature logging (process monitoring, industrial monitoring), temperature logging in cold chain applications.

• Easy setup with USB adapter
• Free download of 1-Wire drivers and OneWireViewer demonstration software
• Compatible with DS1921, DS1922L, DS1922T, DS1922E and DS1923 Thermochron iButtons®
