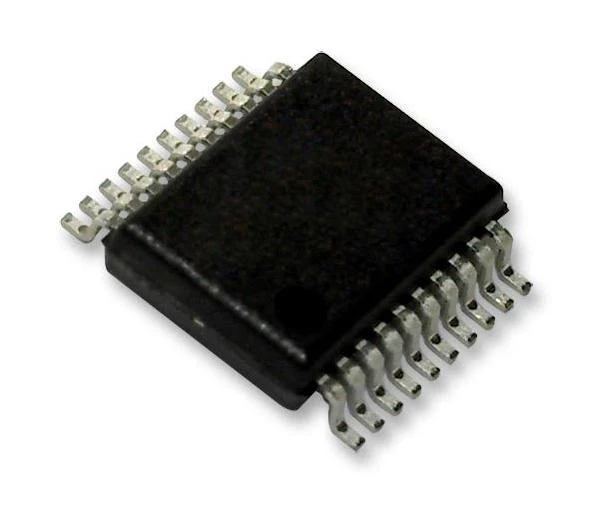

ANALOG DEVICES ADUM6211BRSZ Digital Isolator, 2 Channels, 2.7 V, 5.5 V, SSOP, 20 Pins, 25 Mbps

ADUM6211BRSZ is a dual-channel digital isolator with isoPower®, an integrated, isolated DC-to-DC converter. Based on the Analog Devices, Inc., iCoupler® technology, the DC-to-DC converter provides regulated, isolated power that is adjustable between 3.135V and 5.25V. Input supply voltages can range from slightly below the required output to significantly higher. It eliminates the need for a separate, isolated DC-to-DC converter in low-power, isolated designs. The iCoupler chip-scale transformer technology is used for isolated logic signals and for the magnetic components of the DC-to-DC converter. It is approved by UL recognition, 3750V rms for 1 minute per UL 1577, CSA component acceptance notice 5A, VDE certificate of conformity, DIN V VDE V 0884-10 (VDE V 0884-10):2006-12, VIORM = 849V peak. It is used in applications such as RS-232 transceivers, power supply start-up bias and gate drives, isolated sensor interfaces, and industrial PLCs.

• isoPower integrated, isolated dc-to-dc converter, up to 150mW output power
• Soft start power supply, supports SPI up to 15MHz
• High common-mode transient immunity is <gt/>35KV/?s typical
• Output rise/fall time is 2.5ns typical at (10% to 90%)
• Number of inputs, VDDP side is 1
• Number of inputs, VISO side is 1
• 25Mbps maximum data rate
• 40ns maximum propagation delay at 5V
• 3ns maximum pulse width distortion
• Operating temperature range from -40°C to +105°C, 20-lead SSOP package
