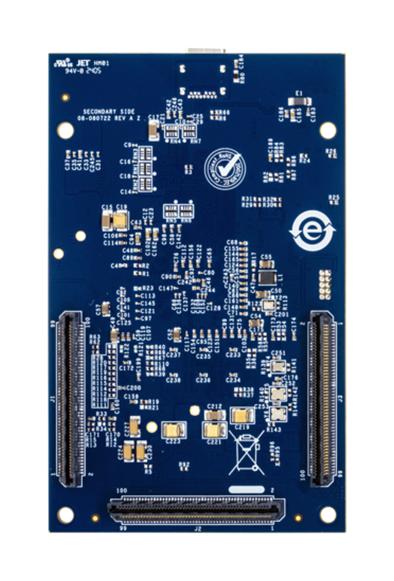

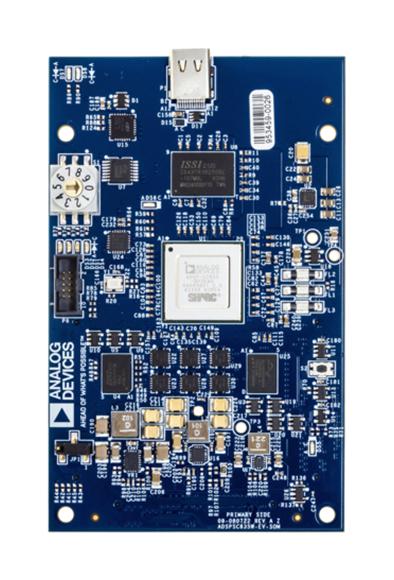

ANALOG DEVICES ADSPSC835W-EV-SOM System-on-Module Board, ADSP-SC835W, 16 / 32bit, SHARC, ARM Cortex-M33—
$513.05
The Story
Product Overview
ADSPSC835W-EV-SOM is a System-on-Module (SOM) board to evaluate the 1GHz ADSP-SC83x SHARC®-FX family of audio processors.
- ADSP-SC835 SHARC-FX audio processor (Layout-compatible with ADSP-21594/ADSP-SC592/94/96/98)
- ADSP-SC835W processor, SHARC-FX Core, 400 ball BGA, 25MHz oscillator
- DDR3 memory, 256Mx16 bit (4Gbit ), ISSI IS43TR16256BL-107MBL, 1.39V
- SPI flash quad (SPI2) memory (ISSI IS25LP512M - 512M-bit serial flash memory with dual and quad SPI)
- HyperFlash memory (512Mbit FLASH/64Mbit RAM, S71KL512SC0BHB003, xSPI HyperBus Device)
- Debug Interface (JTAG 10-pin 0.05ďż˝ header)
- 8LED: 1 pwr (green), 1 board reset (red), 3 general-purpose (amber), 1 fault (red), 2 UART (amber)
- One pushbutton, RESET
- SoM interface CONN: DAI, SPORT, SPI, UART, TWI, link port, GPIO, RESET, GND/3.3V/5V/12V output
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | ADSPSC835W-EV-SOM |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
