$0.91
Original: $3.04
-70%AMP - TE CONNECTIVITY 5520258-3 Modular Connector, Cat3, RJ25, Jack, 6 Contacts, 6 Ways, 1 Ports—
$3.04
$0.91The Story

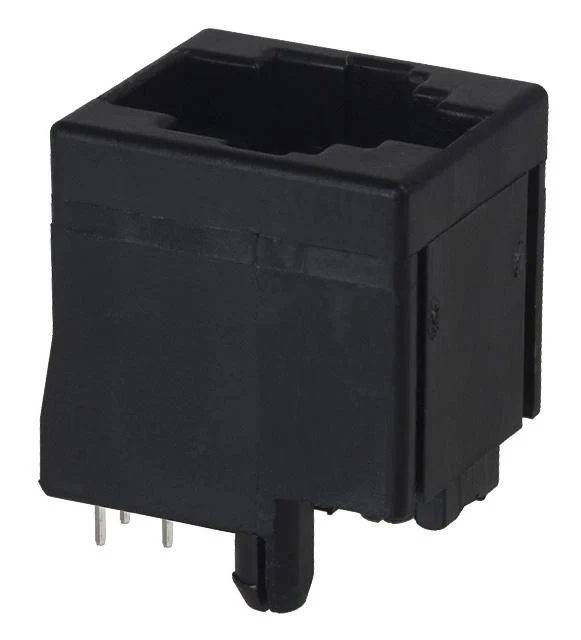

The 5520258-3 is a 6P6C 1-port RJ25/CAT-3 vertical Modular Jack with gold-plated phosphor bronze contacts, panel stops and black PBT housing. It is designed for direct mounting on PC boards, ease of soldering and board cleaning.
- Solder termination
- 150VAC Maximum voltage rating
- 750 Mating cycles durability
- UL94V-0 Flammability rating
Applications
Computers & Computer Peripherals
Product details
| No. of Positions | 6Ways |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold Plated Contacts |
| Connector Type | RJ25 |
| Contact Termination Type | Through Hole |
| LAN Category | Cat3 |
| No. of Contacts | 6Contacts |
| Product Range | - |
| No. of Ports | 1Ports |
| Gender | Jack |
Other details
| Brand | AMP - TE CONNECTIVITY |
| Part Number | 5520258-3 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| 3D Product Image EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
