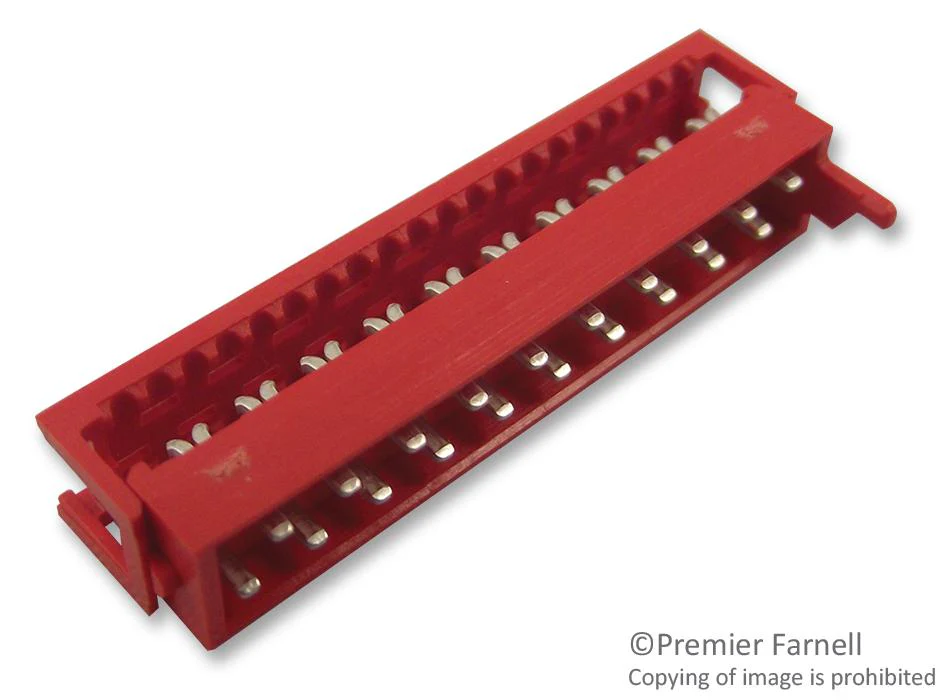

-70%AMP - TE Connectivity 2-215083-0 2-215083-0 IDC Connector 28 AWG Plug Male 1.27 mm 2 Row 20 Contacts Cable Mount—
$4.88
$1.46The Story
The 2-215083-0 is a 20-position 1.27mm Centreline vertical shrouded Male-on-Wire Connector with tin over nickel-plated phosphor bronze dual beam design contact and red GF polyester housing. The Micro-MaTch series wire connector is suitable for mass termination of 28AWG (0.08 to 0.09mm²) ribbon cable. The Micro-MaTch contact helps prevent fretting corrosion, the traditional failure mode in tin-plated connections. Relative movements caused by vibrations/thermal expansion between male and female contacts are absorbed by an additional positioning spring in the female part. By preventing movements on the contact spot, a gas tight connection can make the Micro-MaTch contact spring system fretting corrosion resistant.
- Low profile
- Gas tight connections
- Fretting corrosion resistant
- Full range of application tooling from hand tool to fully automated equipment
Audio, Communications & Networking, Wireless, Imaging, Video & Vision
Other details
| Brand | AMP - TE CONNECTIVITY |
| Part Number | 2-215083-0 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
| Application Note EN | |
| 3D Product Image EN | |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
