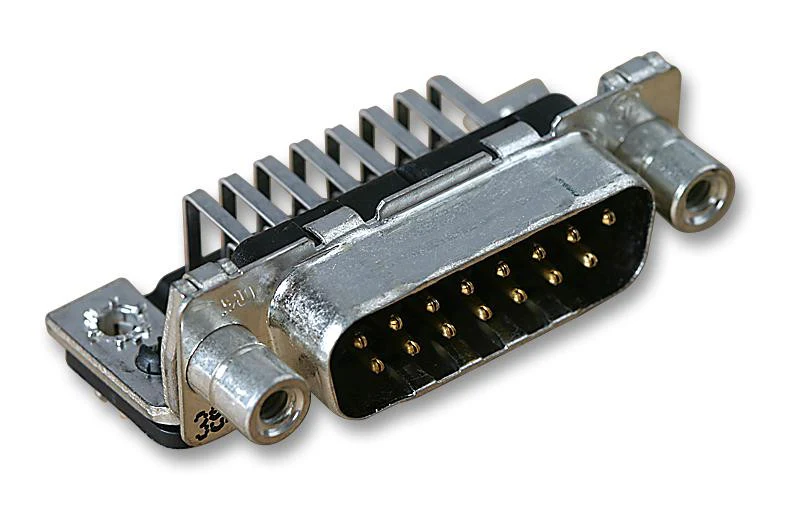

-70%AMP - TE CONNECTIVITY 1-338169-2 D Sub Connector, 15 Contacts, Plug, DA, AMPLIMITE HD-20 Series, Steel Body, Through Hole—
$10.95
$3.28The Story
The 1-338169-2 is a 15-position 2-row standard Right Angle Plug with phosphor bronze contacts, black polyester housing and solder termination. The front metal-shell design compatible with full metal-shell connectors. Integral boardlock versions secure posted connectors to PC boards prior to soldering. The HD-20 connector contacts are available in plating types to satisfy different applications.
- Tin solder tail contact plating
- Threaded insert, 4-40 UNC mating connector lock
- UL94V-0 Flammability rating
Applications
Industrial
Product details
| No. of Contacts | 15Contacts |
| D Sub Shell Size | DA |
| Gender | Plug |
| Product Range | AMPLIMITE HD-20 Series |
| Contact Termination Type | Through Hole |
| Connector Body Material | Steel Body |
Other details
| Brand | AMP - TE CONNECTIVITY |
| Part Number | 1-338169-2 |
| Quantity | Each |
| Drawing EN |  |
| Drawing EN | |
| 3D Product Image EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
