$880.83
Original: $2,936.10
-70%American DJ WMS2 2.6mm Pixel Pitch LED Video Wall Panel—
$2,936.10
$880.83The Story
American DJ WMS2 Overview
Create bright, high-resolution indoor video wall displays with the American DJ WMS2 LED Video Wall Panel. With a pixel pitch of 2.6mm, the WMS2 is ADJ's highest resolution LED video panel offering to date. Broad scalability and a front serviceable design make the WMS2 ideal for a wide range of installation applications.
Note:
This is a single LED video wall panel. It needs to be combined with multiple panels, a video wall controller, mounting, and cabling to form a complete solution.
Suitable for a Variety of Display Options
The WMS2 is perfectly suited for integration applications, including shop window displays, museums, boardrooms, digital signage, and entertainment venues, this video panel is a versatile solution for immersive visual experiences. A Novastar A8s-N receiving card is built-in allowing the WMS2 to be displayed horizontally or vertically when wall mounting.
High Resolution, Brightness, and Contrast
Boasting a pixel pitch of 2.6mm and a pixel density of 147,456 /m2, the WMS2 guarantees exceptional definition, even at close viewing distances. The RGB SMD1515 color mixing LEDs produce a vibrant spectrum, supported by a brightness of 800 nits. With a wide viewing angle of 160-degrees (horizontal) by 140-degrees (vertical) and a rapid pixel refresh rate of 3840 Hz, this video panel ensures a captivating and smooth visual performance.
Wide Scalability and Easy Serviceability

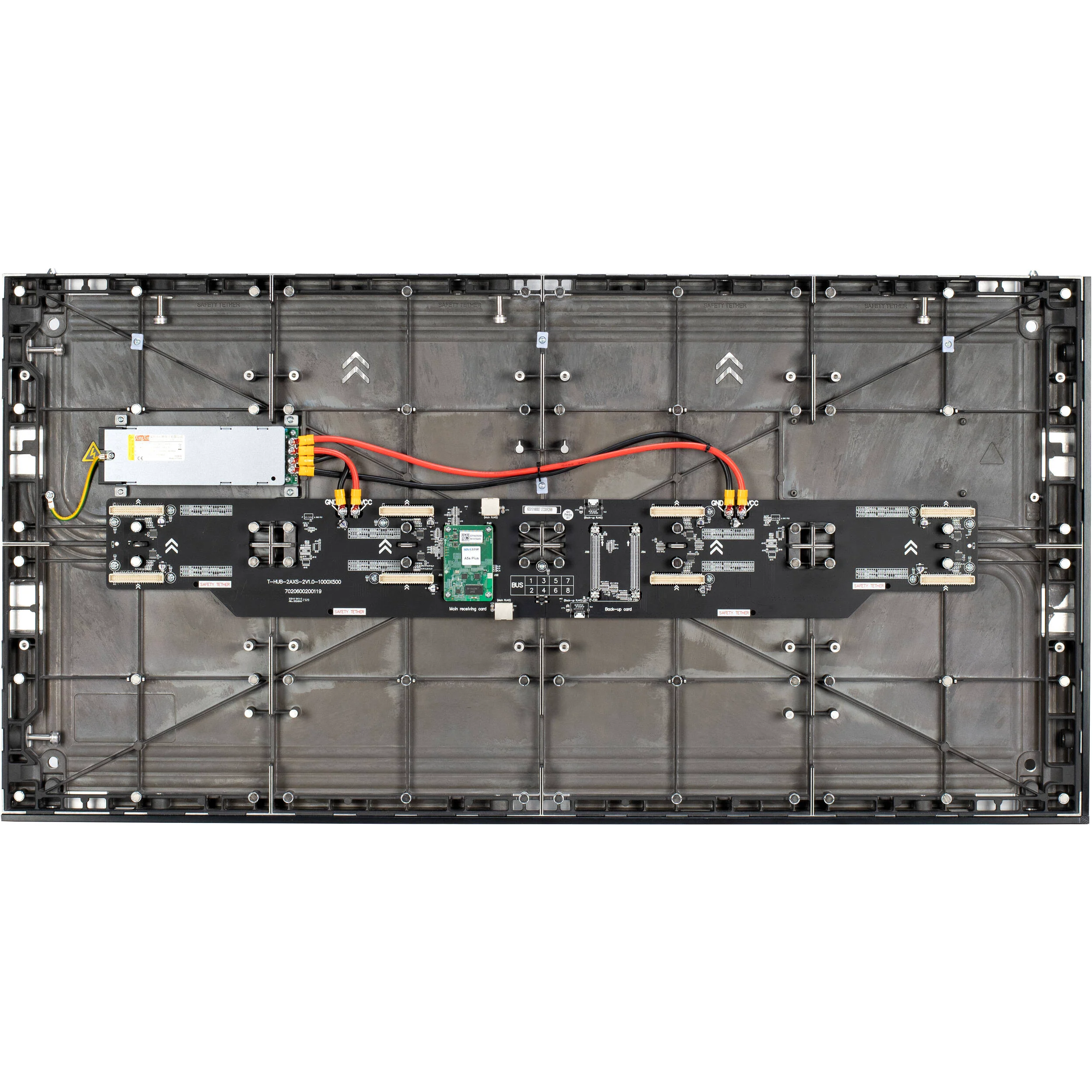

Measuring 39.3 x 19.9�, the WMS2 consists of eight individual modules, each with 96 x 96 pixels, offering flexibility in arrangement. Each panel�s overall resolution is 384 x 192 pixels. The panel�s frame assembly features a secure locking mechanism, allowing for the seamless joining of adjacent panels. Installation is simplified with mounting points for direct wall installation. The front-serviceable design enables easy module replacement, ensuring uninterrupted operation. The maximum number of panels that can be linked is 15 panels in the vertical direction. There is no limit on the number of panels that can be linked in the horizontal direction.
Flexible Installation

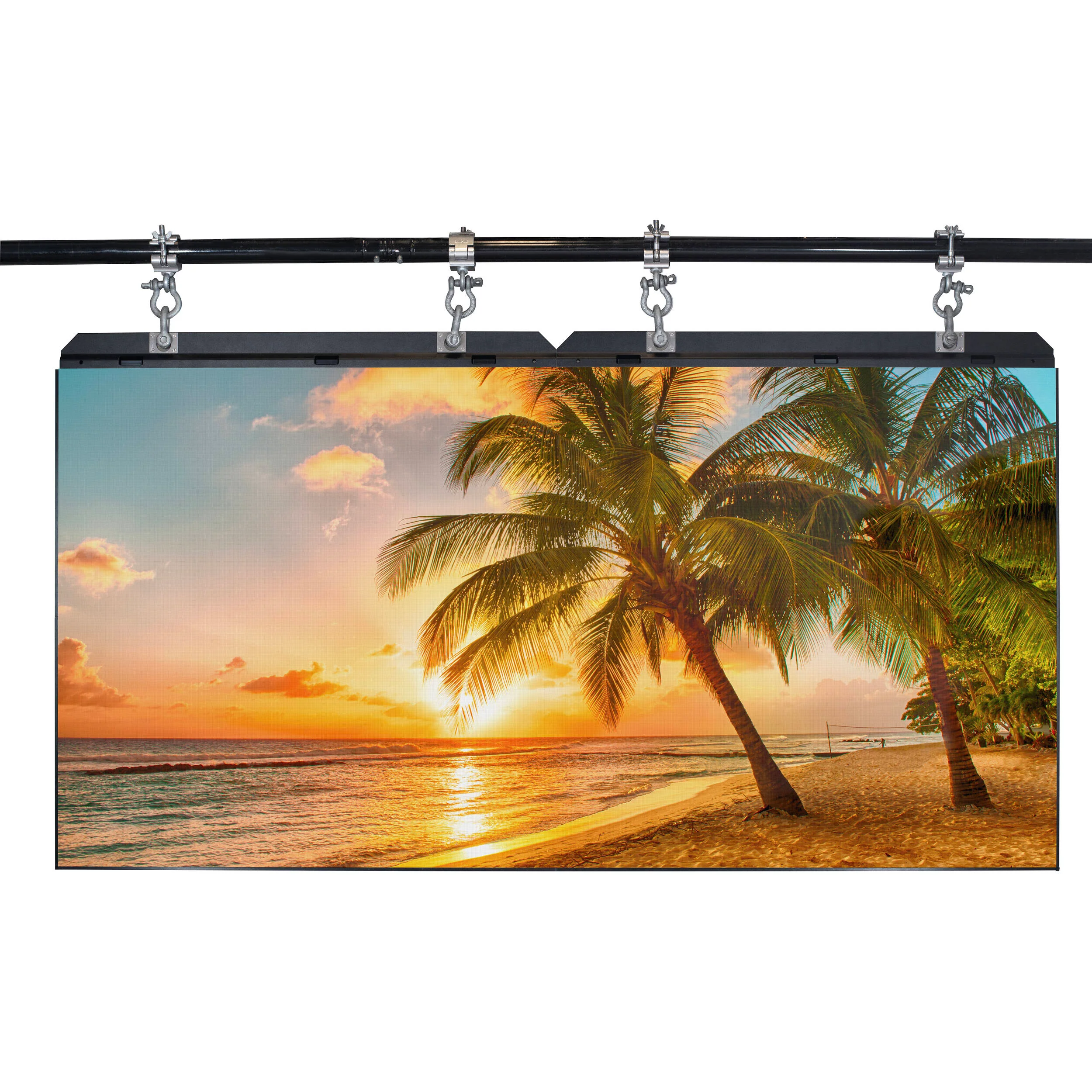

With a slim 1.3� thickness and a weight of 21 lb, the WMS2 is a lightweight and compact solution. Its versatility extends to wall-mounting, hanging, or stacking, both horizontally or vertically, catering to various installation preferences.
UPC: 810087372293
Items Included
- American DJ WMS2 2.6mm Pixel Pitch LED Video Wall Panel
- Limited 2-Year Manufacturer Warranty
Additional Resources
American DJ WMS2 Specs
Key Specs
| Display Size |
44"
|
| Native Resolution |
384 x 192
|
| Maximum Brightness |
800 nits / cd/m2
|
| Inputs |
1x Proprietary
|
| Outputs |
1x Proprietary
|
| USB I/O |
No
|
| Ethernet I/O |
No
|
Display
| Display Size |
44"
|
| Panel Type |
Direct View LED
|
| Aspect Ratio |
2:1
|
| Native Resolution |
384 x 192
|
| Maximum Brightness |
800 nits / cd/m2
|
| Viewing Angle (H x V) |
160 x 140°
|
| Screen Area |
39.4 x 19.7" / 1000 x 500 mm
|
| Pixels Per Inch (ppi) |
10 ppi
|
Connectivity
| Inputs |
1x Proprietary
|
| Outputs |
1x Proprietary
|
| HDCP Support |
No
|
| Wireless |
No
|
| USB I/O |
No
|
| Ethernet I/O |
No
|
| Other I/O |
No
|
| Built-In Speakers |
No
|
| Mobile App Compatible |
No
|
| Media Card Reader |
No
|
Electrical
| Power Consumption |
Typical: 140.0 W
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
General
| Operating Conditions |
-4 to 104°F / -20 to 40°C at 10 to 90% Humidity
|
| Storage Conditions |
-40 to 176°F / -40 to 80°C
|
| Certifications |
ETL
|
| Mounting-Hole Pattern |
No
|
| Lighting Lifespan |
50000 Hours
|
| Environmental Resistance |
Dust-Resistant (IP20)
|
| Duty Cycle |
24 Hours / 7 Days
|
| Dimensions |
39.4 x 19.7 x 1.3" / 1000 x 500 x 33 mm
|
| Weight |
20.9 lb / 9.5 kg
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
