The Story
- Compact 4-Channels Dimmer/Switch Pack
- 2 x 3-Prong Plugs Per Channel (8 Plugs)
- Digital Display
- 4 x Menu Control Buttons
- LED On Indications
- Supports RDM (Remote Device Management)
- 3-Pin DMX In and Out Jacks
- Wall Mountable
- Includes Built-In Hanging Bracket

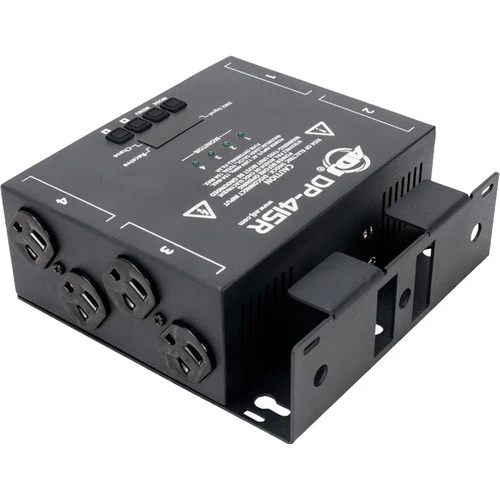

The DP-415R from American DJ is a compact, portable 4-channel dimmer / switch pack that has eight 3-prong 15A Edison sockets allowing you to control up to eight lighting fixtures. It is equipped with a 4-button digital display menu and is RDM (Remote Device Management) compliant, which allows bidirectional communication over a standard DMX line.

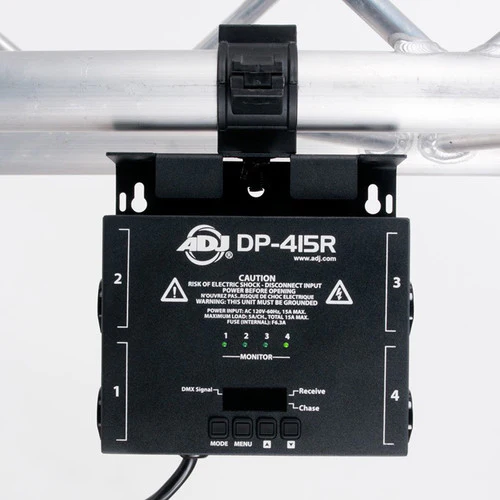

Featuring 3-pin XLR DMX connectors, the DP-415R is built with a hanging bracket that is reversible and can be used to mount the dimmer / switch pack to a wall, a truss, or used with a clamp. In addition, an LED "On" indicator and a DMX signal indicator are provided to alert you when a DMX signal is present and the unit is switched on.
| Type | 4-Channel DMX dimmer / switch pack |
| Plugs | 2 x 3-prong Edison plugs per channel (8 total) |
| On / Off Switch | Yes |
| DMX Interface | In / Out (3-pin XLR) |
| Display | Digital display with 4 menu control buttons |
| RDM | Supports RDM (Remote Device Management) |
| Assignable Functions | Dimmer pack or switch pack |
| Other Features | Wall mountable, changeable hanging bracket to hang on truss |
| Maximum Power | 15 A total, 5 A per channel (120 V) |
| Dimensions (L x W x H) | 10.25 x 8.25 x 3.00" / 26.04 x 20.96 x 7.62 cm |
| Weight | 6.0 lb / 2.7 kg |
| Packaging Info | |
|---|---|
| Package Weight | 5.15 lb |
| Box Dimensions (LxWxH) | 10.4 x 10.1 x 4.1" |
