The Story
ALTRONIX P1AB2K Overview

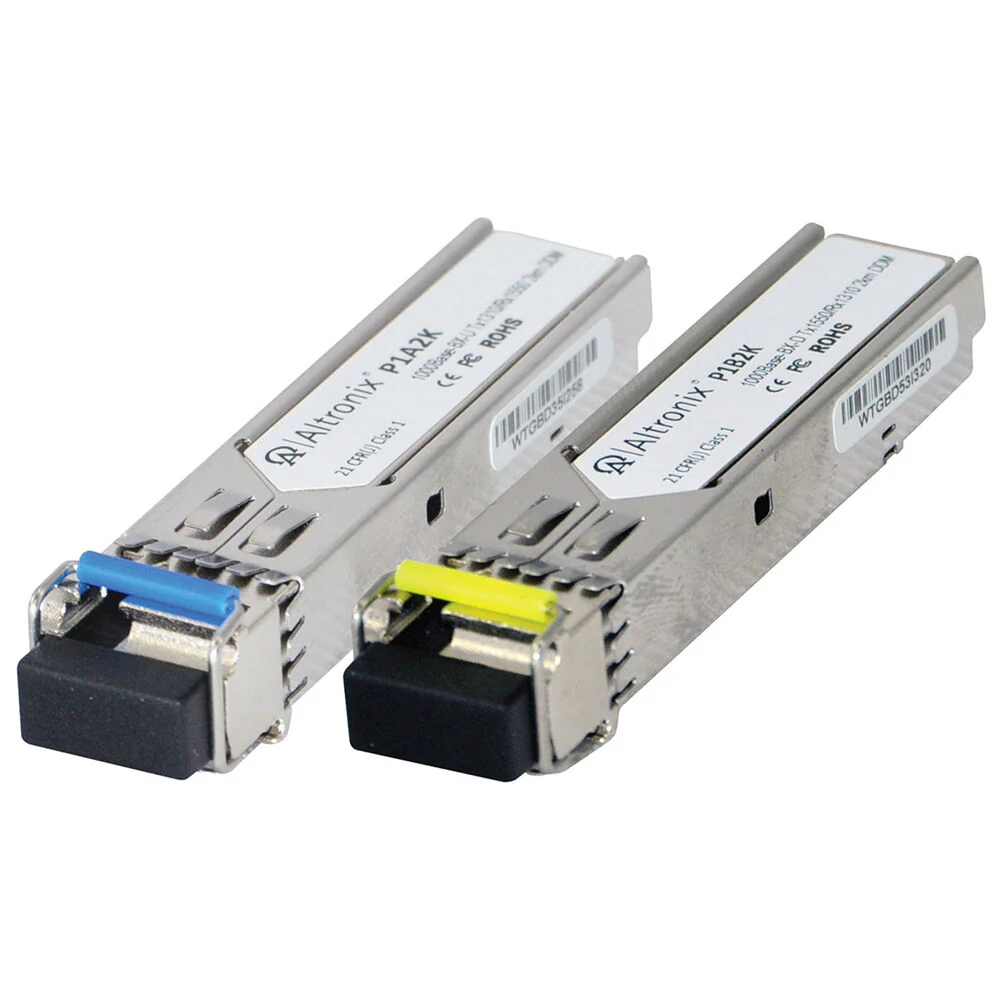

Implement reliable bandwidth for your fiber installations with the Small Form-Factor Pluggable (SFP) Single-Mode Transceiver Kit from Altronix. Ideal for new or retrofit installations where single strand fiber exists, this transceiver kit includes two SFP modules with simplex LC connectors. The P1B2K module features a 1310 nm transmit and 1550 nm receive wavelength, while the P1A2K latched module has a 1550 nm transmit and 1310 nm receive wavelength. Working together, the modules have a bidirectional data transfer rate of up to 1.25 Gb/s with a range of about 6564' over a single-mode fiber connection.
Items Included
- ALTRONIX Small Form-Factor Pluggable (SFP) Single-Mode Transceiver Kit
- Limited Lifetime Warranty
Additional Resources
No additional resources available
ALTRONIX P1AB2K Specs
| Compatibility |
Altronix NetWay Spectrum Fiber Optic Equipment
|
| Connector 1 |
1x Simplex LC Connector
|
| Connector 2 |
1x Simplex LC Connector
|
| Color |
Silver
|
| Certifications |
CE, FCC, RoHS
|
| Cable Length |
Not Specified by Manufacturer
|
| Dimensions |
2.25 x 0.63 x 0.5" / 57.15 x 15.88 x 12.7Â mm
|
| Weight |
0.01Â lb / 3Â g
|
| Package Weight |
0.15 lb
|
| Box Dimensions (LxWxH) |
5.1 x 2.1 x 1.2"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
