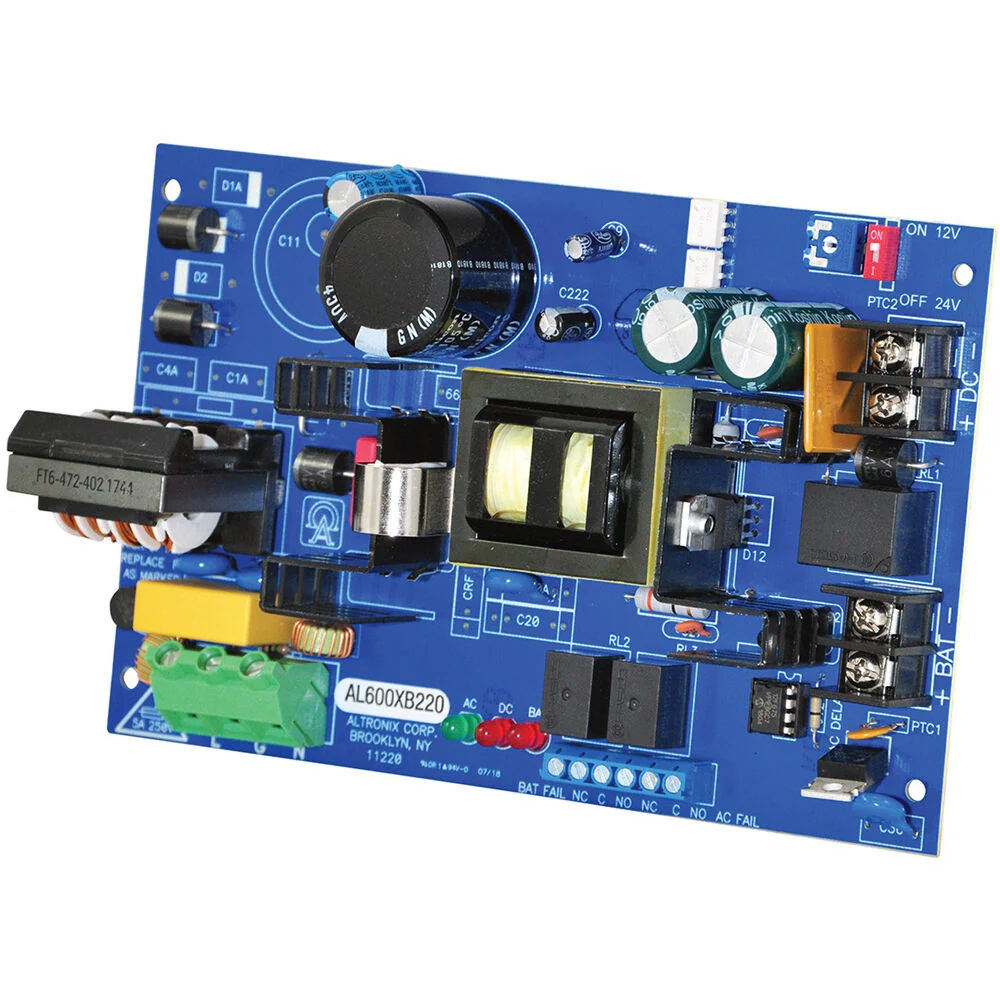

ALTRONIX AL600XB220 Overview
The AL600XB220 Power Supply/Charger from ALTRONIX converts a nominal 220 VAC, 50/60Hz input into a single 12 or 24 VDC output.
Input
- Nominal: 220 VAC (198-256 VAC), 50/60 Hz, 1.5A
- Input fuse rated at 5A/250V
Output
- 12 or 24 VDC selectable output
- 6A continuous supply current
- Filtered and electronically regulated output
- Short circuit and thermal overload protection
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries
- Automatic switchover to a standby battery when AC power fails
- Zero voltage drop when switched over to a battery backup (batteries are sold separately)
Supervision
- AC fail supervision
- Notification trigger is selectable for 30 seconds (factory set) or 6 hours
- Low-battery supervision
- Battery presence supervision
Visual Indicators
- AC input
- DC output
- BAT trouble
BTU
- 12 VDC: 37 BTU per hour
- 24 VDC: 74 BTU per hour
UPC: 782239948277
In the Box
- ALTRONIX AL600XB220 Power Supply/Charger
- Limited Lifetime Warranty
Additional Resources
No additional resources available
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
