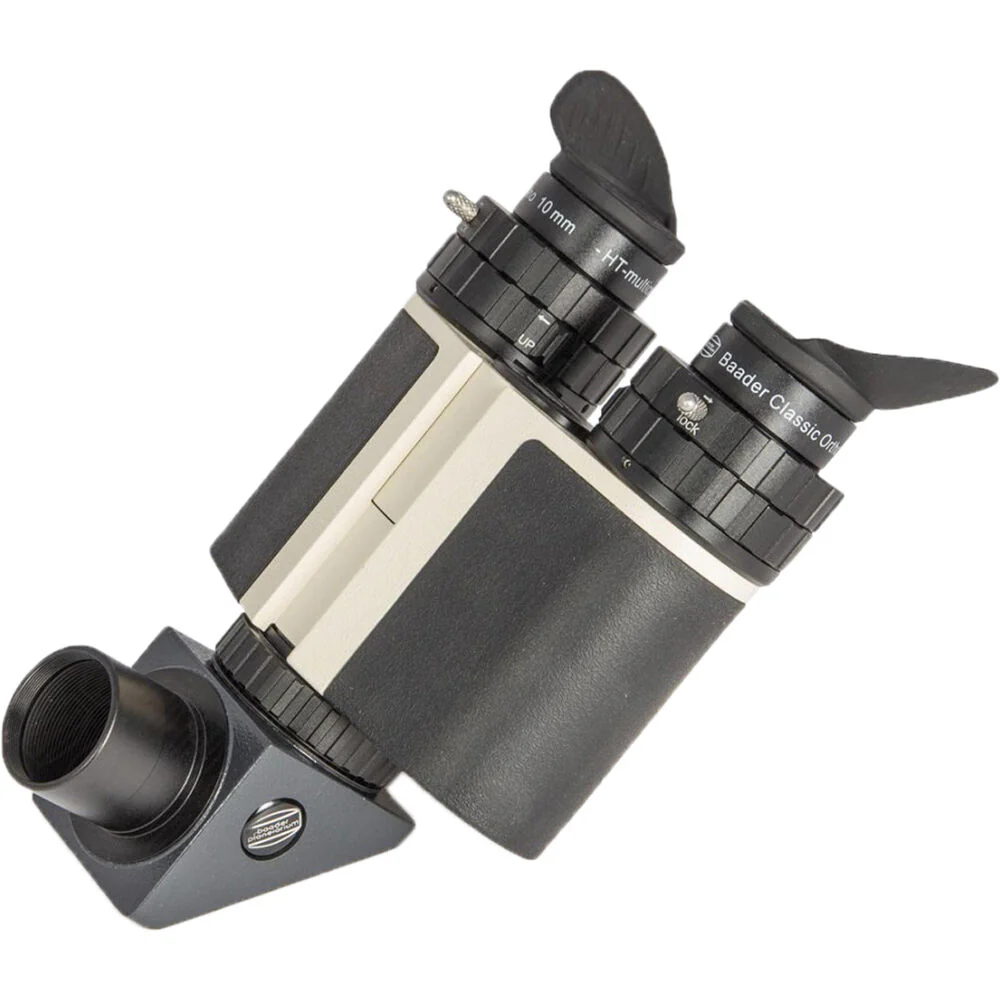

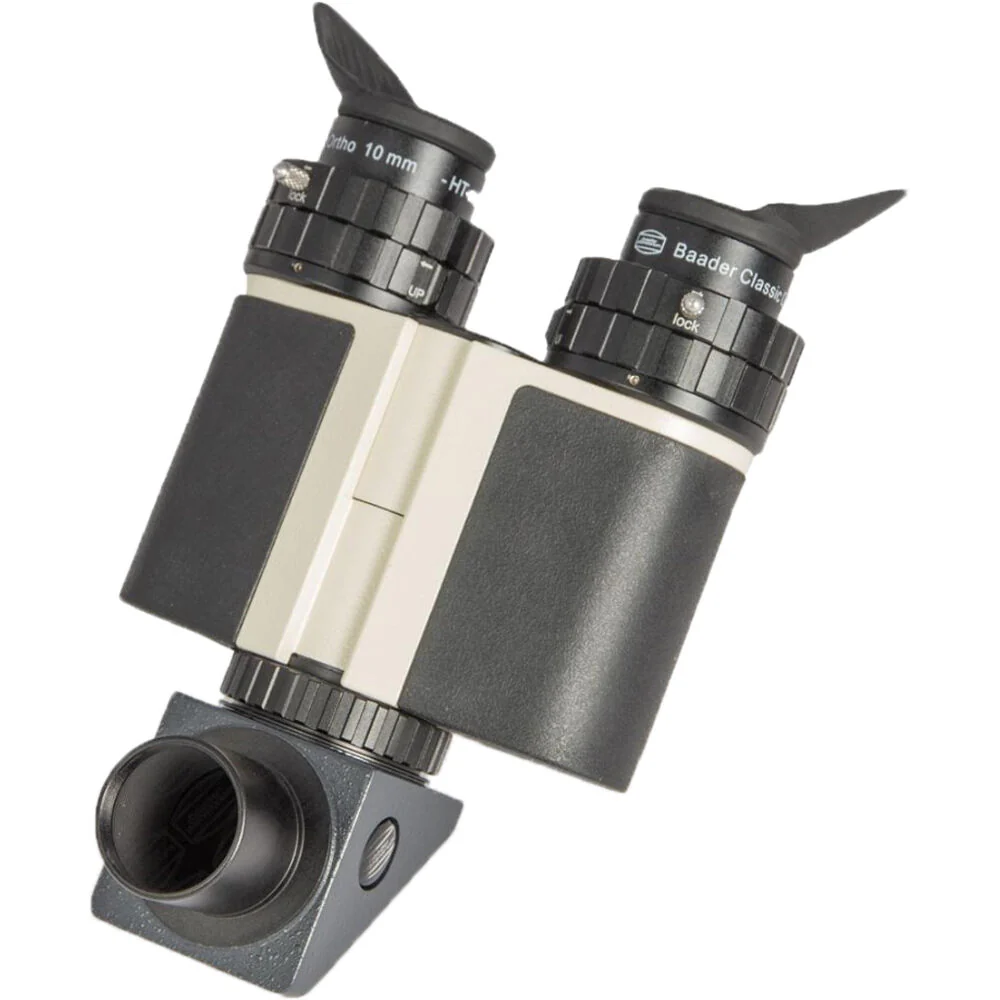

Alpine Astronomical Baader MaxBright II Binoviewer Complete Set

The Alpine Astronomical Baader MaxBright II Binoviewer allows you to enjoy views of the night sky without the strain and aggravation of having to hold an eye closed while looking through your eyepiece. Using two eyes to view reduces eyestrain while letting you comfortably concentrate on objects and discern faint contrasts. It also serves to compensate for floaters and astigmatism and lowers the visual noise in images. The 26mm telescope-side aperture fully illuminates eyepiece focal lengths up to 35mm, and the precise collimation of the seven-layer anti-reflection fully multi-coated prisms provides perfectly aligned light paths through your eyepieces and into your eyes.

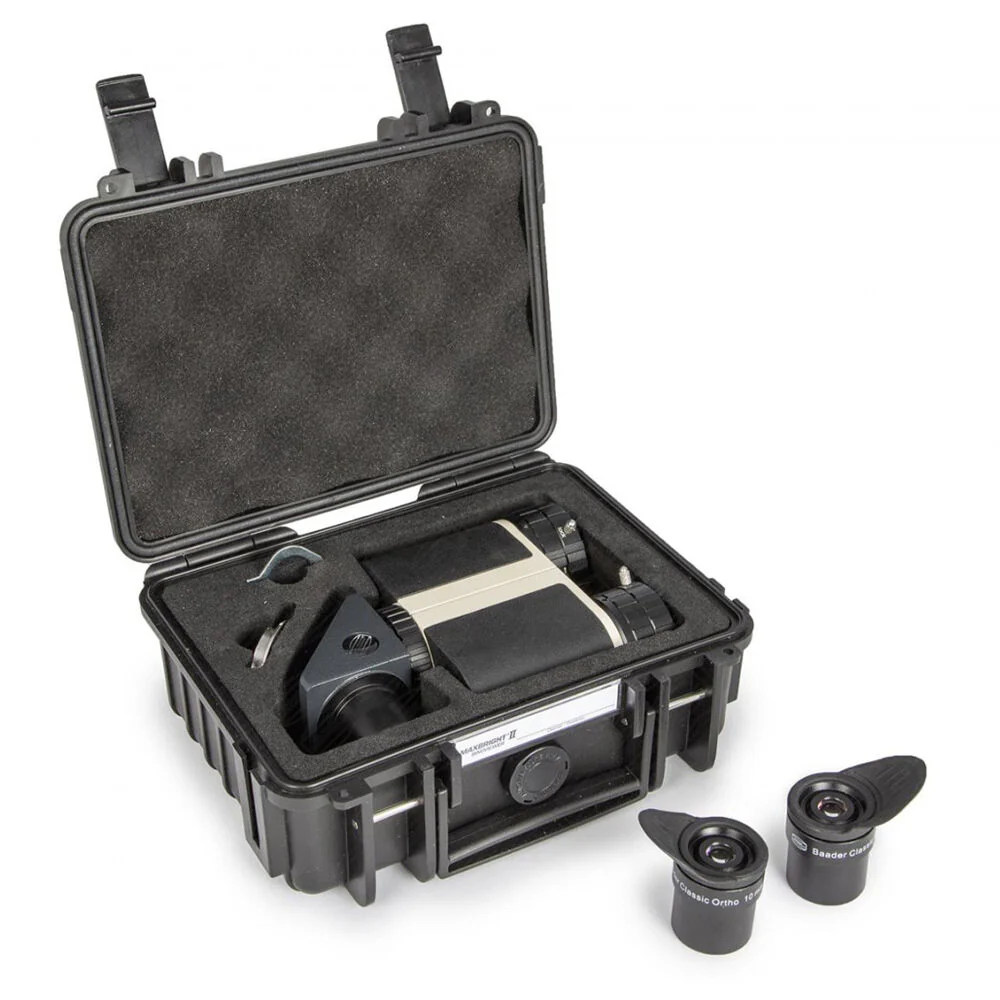

For visual observation, the viewer is outfitted with dual 1.25" ClickLock eyepiece holders. This unique eyepiece mounting system is superior to conventional compression ring and set screw holders, using three long roller bearings to hold the eyepiece firmly centered in place without marking or marring it, while eliminating wobble and off-axis tilt. A simple twist locks and unlocks the clamping system for fast eyepiece changes even while wearing gloves. To mount the binoviewer into your optical tube, there are standard M42 T-threads that make it compatible with the entire Baader Astro T-2 modular accessory system, including 1.25" and 2" nosepieces, SCT visual back adapters, spacers, and more. This version of the MaxBright II comes with a Zeiss micro-bayonet dovetail mount adapter ring for those optical tubes and accessories that are outfitted with that connection. To protect your binoviewer, a hard ABS case with a custom cut foam lining is included.

The MaxBright II is compatible with Baader Glass Path Correctors that allow you to achieve the proper backfocus while also compensating for chromatic aberration (color fringing) and spherical aberration common in all binoviewers.

A part of their modular Astro T-2 system, the Alpine Astronomical Baader T-2 90° Prism Star Diagonal Housing is offered in this configuration to give you complete customization options for a range of applications. The 32mm clear aperture mirror diagonal housing has T2 male threads on one side and T2 female threads on the other. These are compatible with the Astro T-2 family of accessories, from photo and imaging adapters to eyepiece holders, ClickLock holders, nose pieces, and more. Highly reflective mirror coatings limit light loss to ensure images remain bright and clear, while the simple mirror design corrects images horizontally but leaves them laterally inverted.

An optional part of their modular Astro T-2 system, the Alpine Astronomical Baader 1.25" T-2 Nosepiece allows an array of accessories and eyepieces to fit into 1.25" drawtubes, focusers, and visual backs.

The nosepiece has M34 threads that accept the Baader VIP Barlow Lens or Glasspath Compensator. It also has male T-2 threads, which allow you to mount your T-2 accessories like the Baader Amici prism as well as a DSLR or imager for afocal and ocular projection photography techniques.

Employing a classic orthoscopic design and engineered primarily for planetary viewing, the Alpine Astronomical Baader 10mm Classic Ortho Eyepiece makes an ideal addition to your observational kit. With a generous 52° apparent angle of view, it produces a relatively medium magnification on most optical tube assemblies (OTAs). This model is parfocal with other Ortho eyepieces, which means there is little to no need to refocus when changing eyepieces within the Ortho line.

It features a 4-element/2-group lens design with a triplet-element and one plano-convex eye lens, so there are only four glass-air-surfaces to limit internal diffraction and limit light loss. True High-Transmission (HT) multi-coatings on all glass-air-surfaces yield brilliant images while virtually eliminating internal reflections, that when paired with the lens design, delivers a pure-white image with improved sharpness and contrast. The interior of the anodized housing is blackened to suppress stray light, and has machined threads to accept most standard 1.25" filters. It is made with a standard 1.25" barrel so it is compatible with the most popular-sized holders and accessories. Alpine outfitted it with a winged eyecup to block stray terrestrial light to improve brightness and contrast, while helping to eliminate distractions.

Employing a classic Plossl design and engineered primarily for planetary viewing, the Alpine Astronomical Baader 32mm Classic Plossl Eyepiece makes an ideal addition to your observational kit. It produces a relatively low magnification on most optical tube assemblies (OTAs), with a generous 50° apparent angle of view. This model is parfocal with Baader ortho eyepieces, which means there is little to no need to refocus when changing eyepieces within the ortho line.

The eyepiece features a 4-element/2-group lens design with a triplet-element and one plano-convex eye lens, so there are only four glass-air surfaces to limit internal diffraction and light loss. True high-transmission (HT) multi-coatings on all glass-air surfaces yield brilliant images while virtually eliminating internal reflections. When paired with the lens design, this delivers a pure-white image with improved sharpness and contrast. The interior of the anodized housing is blackened to suppress stray light and has machined threads to accept most standard 1.25" filters. The eyepiece is made with a standard 1.25" barrel so it is compatible with the most popular-sized holders and accessories. Alpine outfitted it with a winged eyecup to block stray terrestrial light to improve brightness and contrast, and a slip-on eyeguard extension tube that permits the eyeguard to be positioned further back for use with a Barlow lens or if the user prefers a shorter eye relief.

Alpine Astronomical Baader MaxBright II Binoviewer (1.25") Specs

Alpine Astronomical Baader T-2 90° Prism Star Diagonal Housing Specs

Alpine Astronomical Baader 1.25" T-2 Nosepiece Specs

Alpine Astronomical Baader 10mm Classic Ortho Eyepiece (1.25") Specs

Alpine Astronomical Baader 32mm Classic Plossl Eyepiece with Extender Tube (1.25") Specs
