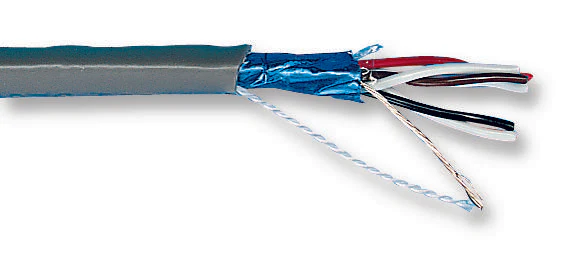

Alpha Wire 6393 SL005 Multipair Cable Communication Screened 5 Pair 28 AWG 0.089 mm² 100 ft 30.5 m

The 6393 SL005 is a 100ft 5-pair overall foil-braid shield Communication and Control Cable with stranded tinned copper conductors with polyethylene insulation. It has aluminium/polyester foil shield with 25% minimum overlap and foil facing out-ward stranded tinned copper drain wire, 90% coverage of tinned copper braid.

• CPR: Not Yet Qualified
• 20.4lb Maximum pull tension
• 100R Characteristic impedance
• -20 to 75°C Temperature range

Applications

Audio, Communications & Networking, Computers & Computer Peripherals, Security, Automation & Process Control, Sensing & Instrumentation, Industrial

Product details

Cable Shielding	Screened
No. of Pairs	5 Pair
Wire Gauge	28AWG
Conductor Area CSA	0.089mm²
Reel Length (Imperial)	100ft
Reel Length (Metric)	30.5m
Jacket Colour	Slate
No. of Max Strands x Strand Size	7 x 0.13mm
Voltage Rating	300V
Jacket Material	PE
Conductor Material	Tinned Copper
External Diameter	6.4mm
Product Range	-

Other details

Brand	ALPHA WIRE
Part Number	6393 SL005
Quantity	Reel of 30
Technical Data Sheet EN

Price For Reel of 30
