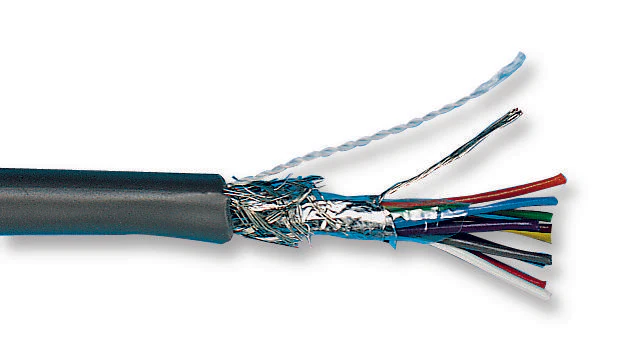

Alpha Wire 6332 SL005 Multicore Screened Cable Control 8 Core 24 AWG 0.23 mm² Slate 100 ft 30.5 m

The 6332 SL005 is a 8-core Shielded Cable with tinned copper conductor and a semi-rigid PVC insulator. This multi-core cable comes with a slate PVC jacket, aluminium/Mylar tape foil shield, foil facing outward and tinned copper braid shield (65% minimum coverage). A combination of foil and braid gives the best EMI protection across a wide frequency range.

• CPR: Not Yet Qualified
• 35lbs Maximum pull tension
• 58pf/ft at 1kHz Nominal ground capacitance
• 0.19µH/ft Nominal inductance

Applications

Audio, Communications & Networking, Computers & Computer Peripherals, Sensing & Instrumentation, Security, Automation & Process Control, Consumer Electronics, Portable Devices

Product details

Cable Shielding	Screened
No. of Cores	8Core
Wire Gauge	24AWG
Conductor Area CSA	0.236mm²
Reel Length (Imperial)	100ft
Reel Length (Metric)	30.5m
Jacket Colour	Slate
No. of Max Strands x Strand Size	7 x 32AWG
Conductor Material	Tinned Copper
Jacket Material	PVC
External Diameter	5.99mm
Voltage Rating	300V
Product Range	-

Other details

Brand	ALPHA WIRE
Part Number	6332 SL005
Quantity	Reel of 30
Technical Data Sheet EN

Price For Reel of 30
