$31.67
Original: $105.56

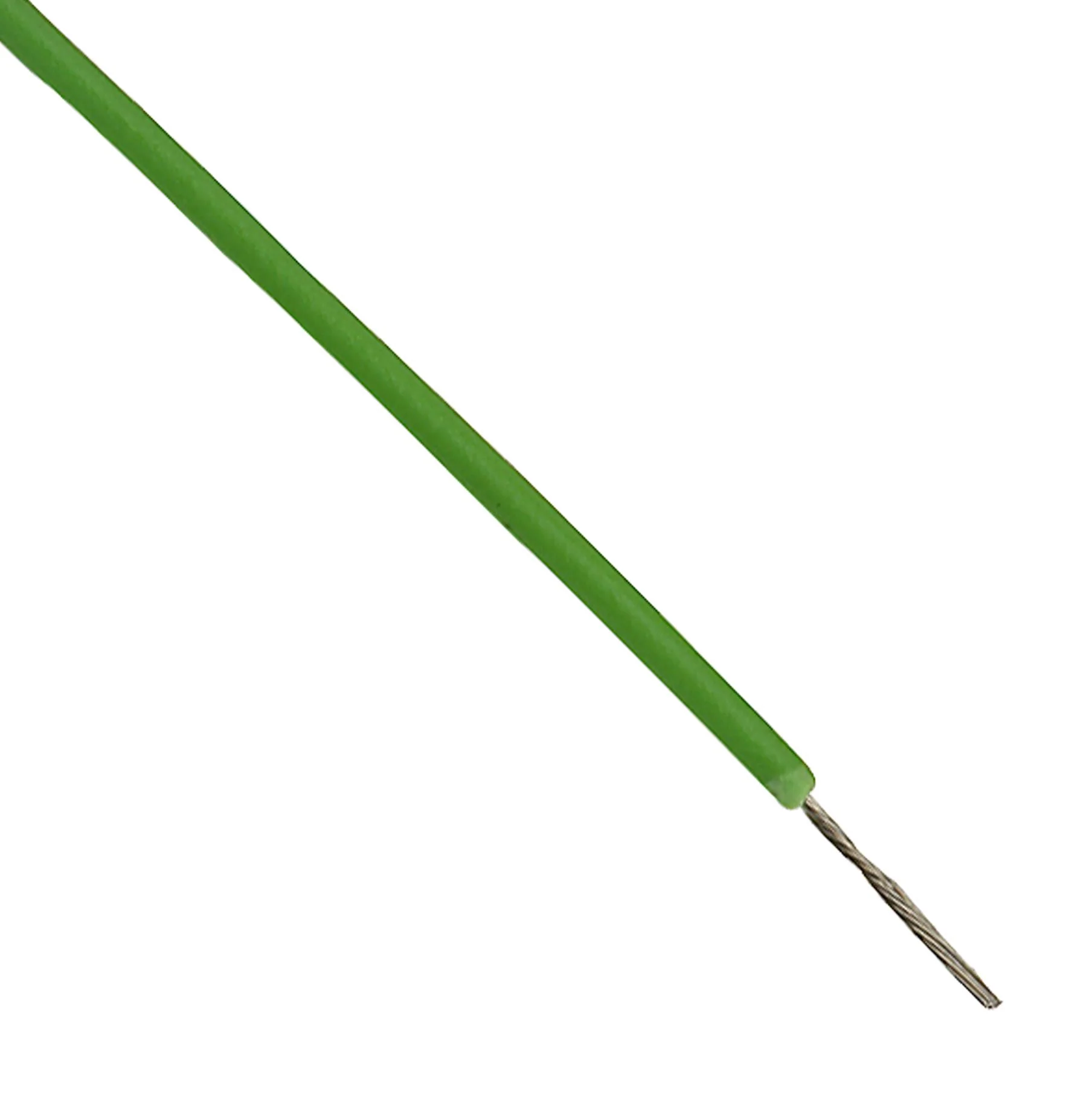

-70%ALPHA WIRE 3048 GR001 Wire, Stranded, Hook Up, UL1007, PVC, Green, 28 AWG, 0.072 mm², 1000 ft, 305 m—
$105.56
$31.67The Story
- CPR: Not Yet Qualified
- UL Recognised AWM 1007 and CSA TR-64 specification
- Tinned stranded copper conductors
- Operating temperature range -40°C to 80°C
Product details
| Jacket Material: PVC |
| Jacket Colour: Green |
| Wire Gauge: 28AWG |
| Conductor Area CSA: 0.072mm² |
| Reel Length (Imperial): 1000ft |
| Reel Length (Metric): 304.8m |
| Operating Temperature Max: 80°C |
| No. of Max Strands x Strand Size: 7 x 0.127mm |
| Voltage Rating: 300V |
| Conductor Material: Copper |
| External Diameter: 1.194mm |
| Approval Specification: CSA AWM I A/B FT1, CSA TR-64 FT1, UL 1007,UL 1581,UL 1569, UL VW-1 |
| Product Range: - |
Other details
| Brand | ALPHA WIRE |
| Part Number | 3048 GR001 |
| Quantity | Reel of 1 |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
