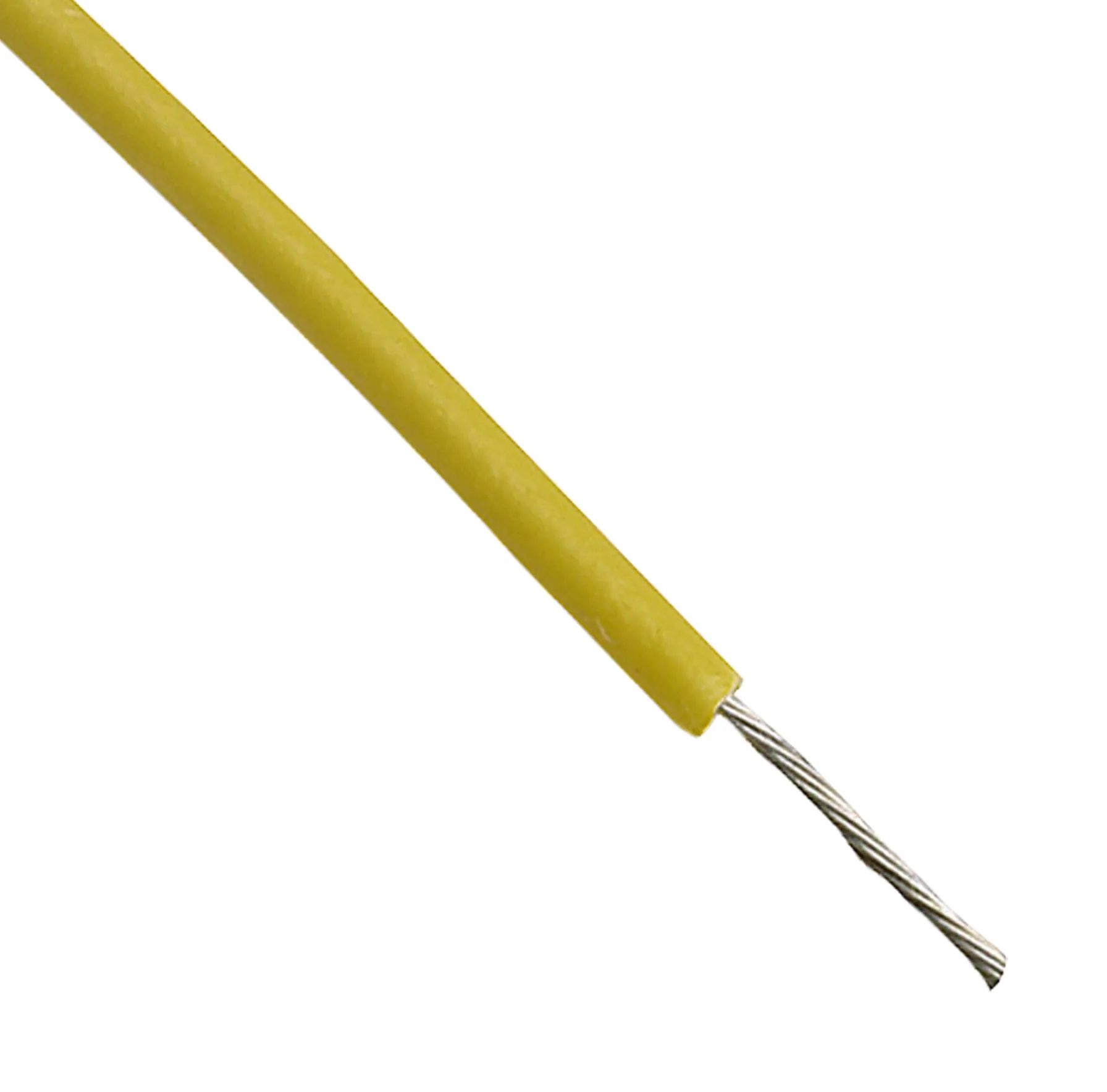

ALPHA WIRE 2841/1 YL005 Wire, Solid, Hook Up, PTFE, Yellow, 30 AWG, 0.051 mm², 100 ft, 30.5 m—
$88.53
The Story
- CPR: Not Yet Qualified
- 0.79Lbs Maximum pull tension
- NEMA HP3-ETXBBA
- 0.06µH/ft Nominal inductance
- -60 to 200°C Temperature range
Product details
| Jacket Material: PTFE |
| Jacket Colour: Yellow |
| Wire Gauge: 30AWG |
| Conductor Area CSA: 0.051mm² |
| Reel Length (Imperial): 100ft |
| Reel Length (Metric): 30.5m |
| Operating Temperature Max: 200°C |
| No. of Max Strands x Strand Size: Solid |
| Voltage Rating: 250V |
| Conductor Material: Silver Plated Copper |
| External Diameter: 0.559mm |
| Approval Specification: MIL-DTL-16878/6 (Type ET), UL VW-1 |
| Product Range: - |
Other details
| Brand | ALPHA WIRE |
| Part Number | 2841/1 YL005 |
| Quantity | Reel of 30 |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Description
- CPR: Not Yet Qualified
- 0.79Lbs Maximum pull tension
- NEMA HP3-ETXBBA
- 0.06µH/ft Nominal inductance
- -60 to 200°C Temperature range
Product details
| Jacket Material: PTFE |
| Jacket Colour: Yellow |
| Wire Gauge: 30AWG |
| Conductor Area CSA: 0.051mm² |
| Reel Length (Imperial): 100ft |
| Reel Length (Metric): 30.5m |
| Operating Temperature Max: 200°C |
| No. of Max Strands x Strand Size: Solid |
| Voltage Rating: 250V |
| Conductor Material: Silver Plated Copper |
| External Diameter: 0.559mm |
| Approval Specification: MIL-DTL-16878/6 (Type ET), UL VW-1 |
| Product Range: - |
Other details
| Brand | ALPHA WIRE |
| Part Number | 2841/1 YL005 |
| Quantity | Reel of 30 |
| Technical Data Sheet EN | |
