The Story
Product Overview

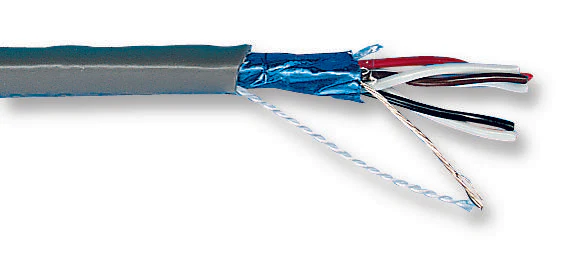

The 2466C SL002 is a 500ft 2-pair shielded Communication and Control Cable with stranded tinned copper conductors and polypropylene insulation. The cable has aluminium/polyester foil shield with 25% minimum overlap, that goes beyond the ordinary conditions to satisfy rigorous requirements of EMI performance, transmission distances, flexibility and temperature extremes.
- CPR: Not Yet Qualified
- 25lb Maximum pull tension
- 60? Characteristic impedance
- 25pf/ft at 1kHz Mutual capacitance (nominal)
- 0.18µH/ft Nominal inductance
- -20 to 75°C Temperature range
Applications
Audio, Communications & Networking, Computers & Computer Peripherals, Security, Automation & Process Control, Sensing & Instrumentation, Industrial
Product details
Other details
| Brand | ALPHA WIRE |
| Part Number | 2466C SL002 |
| Quantity | Reel of 1 |
| Technical Data Sheet EN |  |
