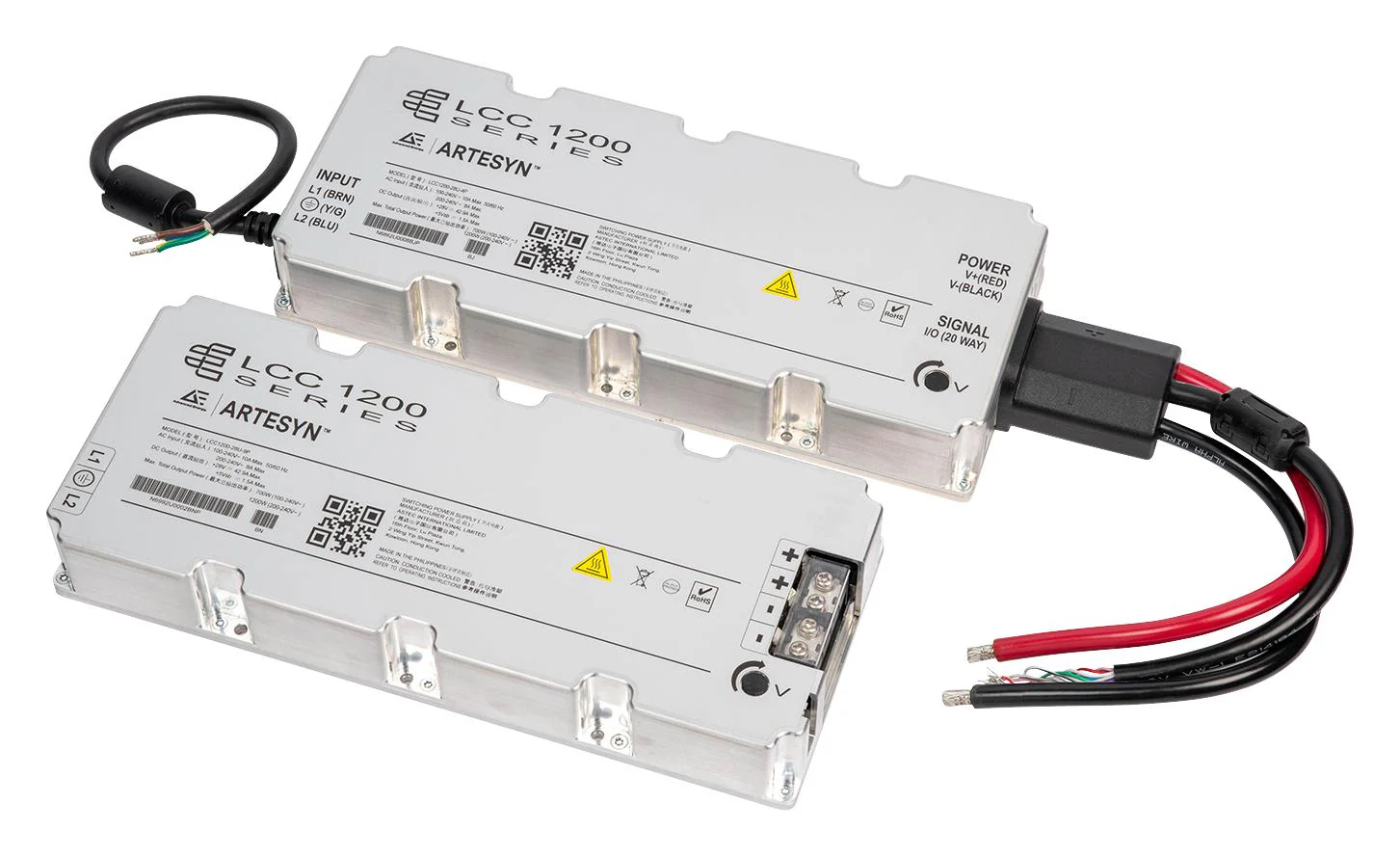

-70%ADVANCED ENERGY LCC1200-48U-4P AC/DC Enclosed Power Supply (PSU), ITE, 1 Outputs, 1.2 kW, 48 V, 25 Aā
$906.79
$272.04The Story
LCC1200-48U-4P is a LCC1200 series 1200W conduction cooled AC-DC power supply. It also provides a 5VDC standby output that can supply up to 1.5A. Rated at 1200W, this power supply incorporates a thermal baseplate and are capable of delivering full output power over a wide operating baseplate temperature range of -40 to 85Ā°C. For maximum applications flexibility, the main output is adjustable. Safety approvals are UL + CSA: IEC 62368-1, Demko: IEC 62368-1, CB Scheme: IEC 60950-1, IEC 62368-1, CCC, UKCA Mark.
- Wide operating temperature range
- Adjustable output, remote output on/off
- AC-OK, DC-OK signals, 5V standby voltage
- Active current share, conduction-cooled/fanless
- IĀ²C / PMBus, ITE Safety, active power factor correction, EMI Class B, EN61000 immunity
- Input voltage range from 90 to 264VAC (safety rating 100 to 240VAC), 127 to 374VDC
- 48V nominal output voltage, 42V to 57.6V trimming range
- Setpoint is Ā±0.5%, maximum Pout is 1200W, maximum Iout is 25A
- 1.0% output ripple, 2.0% line/load/temperature regulation, IP65 IP rating
- 10% to 95% humidity range
Product details
| Power Supply Applications: ITE |
| No. of Outputs: 1Outputs |
| Output Power Max: 1.2kW |
| Output Voltage - Output 1: 48V |
| Output Current - Output 1: 25A |
| Output Voltage - Output 2: - |
| Output Current - Output 2: - |
| Output Voltage - Output 3: - |
| Output Current - Output 3: - |
| Output Voltage - Output 4: - |
| Output Current - Output 4: - |
| Input Voltage VAC: 90V AC to 264V AC |
| Power Supply Output Type: Fixed |
| Product Range: LCC1200 series |
Other details
| Brand | ADVANCED ENERGY |
| Part Number | LCC1200-48U-4P |
| Quantity | Each |
| Technical Data Sheet EN |  |
