- 2592 x 1944 Resolution at 15 fps
- 1.19mm Fixed Fisheye Lens
- 180� and 109.8� Viewing Angles
- microSD slot Supports Edge Storage
- H.264 and MJPEG Compression
- Simultaneous Dual Streaming
- RJ45 Ethernet with PoE Technology
- ONVIF-Compliance for Compatibility
- IK08-Rating for Vandal Resistance

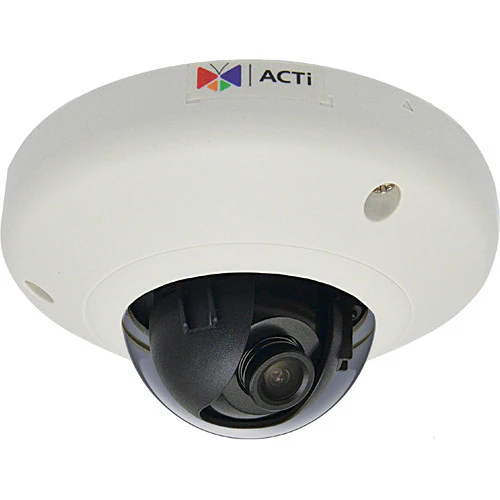

The 5MP Mini Dome Camera from ACTi features a 1.19mm fixed fisheye lens, providing a 180� overview and a 109.8� view of highly detailed areas. With a 1/3.2" progressive-scan CMOS sensor, the camera captures images at a maximum resolution of 2592 x 1944. There are four configurable privacy regions for customizing your field of view, and brightness, contrast, and sharpness settings allow you to configure your camera based on various environments. The camera uses both H.264 and MJPEG formatting for maximizing your storage and bandwidth, and a microSD slot allows for on-site recording with edge storage.
The camera can detect motion in up to three programmable areas, and it will also set off an alarm if sound is detected. Once an alarm is triggered, the camera will send you an email with a snapshot of the situation or save a video of the incident to your local storage. The RJ45 Ethernet connection uses PoE technology for a simple installation, and the camera can be surface, wall, pendant, or gang box mounted for multiple setup options. ONVIF compliance enables compatibility with a wide range of surveillance devices, allowing you to connect the camera to an NVR for additional storage and management features.
- 1/3.2" progressive-Scan CMOS sensor provides up to 5MP resolution
- Fisheye lens offers a 180� overview and a 109.8� view of a detailed area
- Wide dynamic range (74 dB) allows you to capture clear images in ambient lighting
- Image enhancements including white balance, automatic gain control, and digital noise reduction
- Program up to three separate areas to trigger an alarm when motion is detected
- When alarm is triggered the camera will send you an email notification with a snapshot
- Four configurable privacy masking regions
- H.264 and MJPEG compression formats maximize your network and storage usage
- Simultaneous dual streaming with two configurations
- microSD slot supports microSD card for on-site recording and edge storage
- The camera can be surface, wall, pendant and gang box mounted
- RJ45 Ethernet connection uses PoE technology for a minimum amount of wires and an easy setup
- ONVIF-compliant for compatibility with a wide range of surveillance devices
- Vandal resistant housing with a transparent dome cover for installation in high risk areas
- Limited 3-Year Warranty
| Camera | |
|---|---|
| Image Sensor | 1/3.2" progressive-scan CMOS |
| Effective Pixels | 5.04 MP: 2592 (H) x 1944 (V) |
| Horizontal Resolution | 1350 TVL |
| Low Light Sensitivity | Standard |
| Minimum Illumination | Color: 0.1 lux at f/2.0 (30 IRE, 2400 K) |
| Shutter Speed | Manual Mode: 1/5 to 1/2,000 seconds Auto Mode: 1/5 to 1/10,000 seconds |
| Signal to Noise Ratio | 52 dB |
| Lens | |
|---|---|
| Focal Length | 1.19mm fixed fisheye |
| Aperture | f/2.0 |
| Iris | Fixed |
| Focus | Fixed |
| Lens Mount | Board |
| Horizontal Viewing Angle | Overview Area: 180� High Detail Area: 109.8� |
| Viewing Angle Adjustment | Rotation: �90� |
| Video | |
|---|---|
| Compression | H.264 (Baseline / Main / High Profile), MJPEG |
| Maximum Frame Rate vs. Resolution | 2592 x 1944 at 15 fps 2048 x 1536 at 15 fps 1440 x 1080 at 15 fps 1280 x 960 at 15 fps 800 x 600 at 15 fps 640 x 480 at 15 fps 320 x 240 at 15 fps |
| Mode | Fisheye view, 180� / 360� panorama, ePTZ |
| Streaming | Simultaneous dual streams based on two configurations |
| Bit Rate | 28 Kbps to 6 Mbps (per stream) |
| Bit Rate Mode | Constant, variable |
| Image Enhancement | Basic WDR (74 dB) White Balance: Automatic, hold, manual Brightness, Contrast, Sharpness (auto) Automatic gain control Digital noise reduction Flickerless |
| Privacy Masking | 4 configurable regions |
| Text Overlay | User defined text on video |
| Image Orientation | Image flip and mirror |
| Network | |
|---|---|
| Network Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTPS, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ45 connection |
| Security | IP address filtering, HTTPS encryption, password protected user levels, anonymous login, IEEE 802.1X network access control |
| Alarm | |
|---|---|
| Alarm Trigger | Video motion detection (3 regions) |
| Alarm Response | Notify control center, change camera settings, command other devices, email notification with snapshots, save video or snapshot to local storage, upload video or snapshot to FTP |
| Interface | |
|---|---|
| Storage | microSDHC/SDXC memory card slot |
| Integration | |
|---|---|
| Unified Solution | Fully compatible with ACTi software |
| ISV Integration | Software development Kit (SDK) available ONVIF-compliant |
| GPS | Position: Manual setting |
| Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality) Safari with QuickTime installed, and other browsers with VLC installed (partial functionality) |
| General | |
|---|---|
| Power Source | PoE Class 1 (IEEE 802.3af) |
| Power Consumption | 2.91 W |
| Environmental Casing | Vandal resistant (IK08-rated) Transparent dome cover |
| Mount | Surface, wall, pendant, gang box, NPT standard mounts |
| Starting Temperature | 14 to 122�F (-10 to 50�C) |
| Operating Temperature | 14 to 122�F (-10 to 50�C) |
| Operating Humidity | 10 to 85% RH |
| Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), UL (for optional PoE injector) |
| Dimensions | 4.3 x 2.3" (10.9 x 5.8 cm) |
| Weight | 0.5 lb (200 g) |
| Packaging Info | |
|---|---|
| Package Weight | 0.9 lb |
| Box Dimensions (LxWxH) | 6.9 x 6.6 x 3.1" |
