3M 10336-C200-00 10336-C200-00 Connector Backshell Junction Mini D Ribbon 101XX-6000 EC Plug Connectors 180°

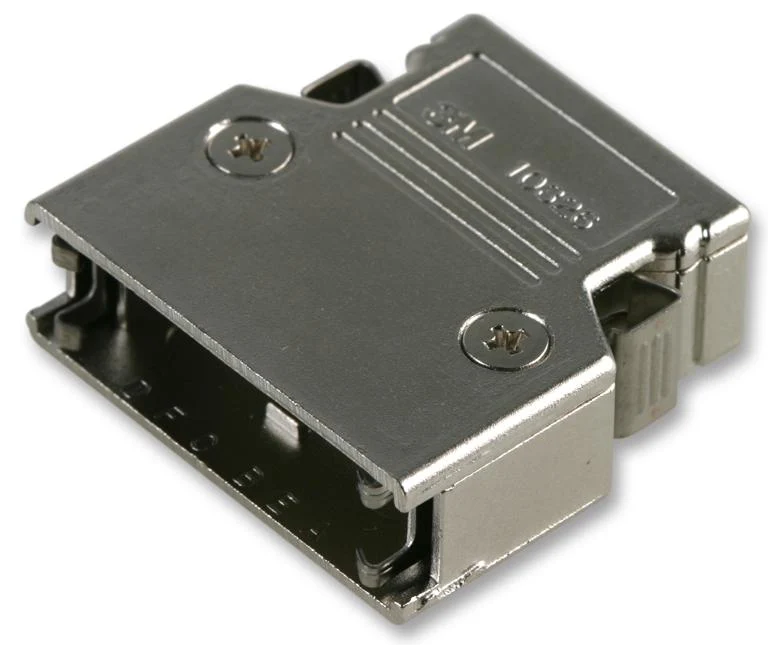

The 10336-C200-00 is a 36-position Junction Backshell for round cable. It is made of zinc alloy with nickel plated finish. It comes with a rugged two-piece die-cast metal shell with round straight exit (compatible with 101XX-6000 EC plug). The reliable metal strain relief clamp provides grounding for cable shield. The backshell is suitable to use with the 3M� Mini D ribbon (MDR) connectors.

• Excellent EMI/ESD protection
• Quick release latching mechanism

Applications

Industrial

Contents

2 Metal shell halves, Cable clamps (plated steel), 2 M2.6 x 6mm Flat head screws, 2 M2.6 x 4mm Pan head screws and 2 metal latches.

Other details

Brand	3M
Part Number	10336-C200-00
Quantity	Each
Technical Data Sheet EN
