Product Overview

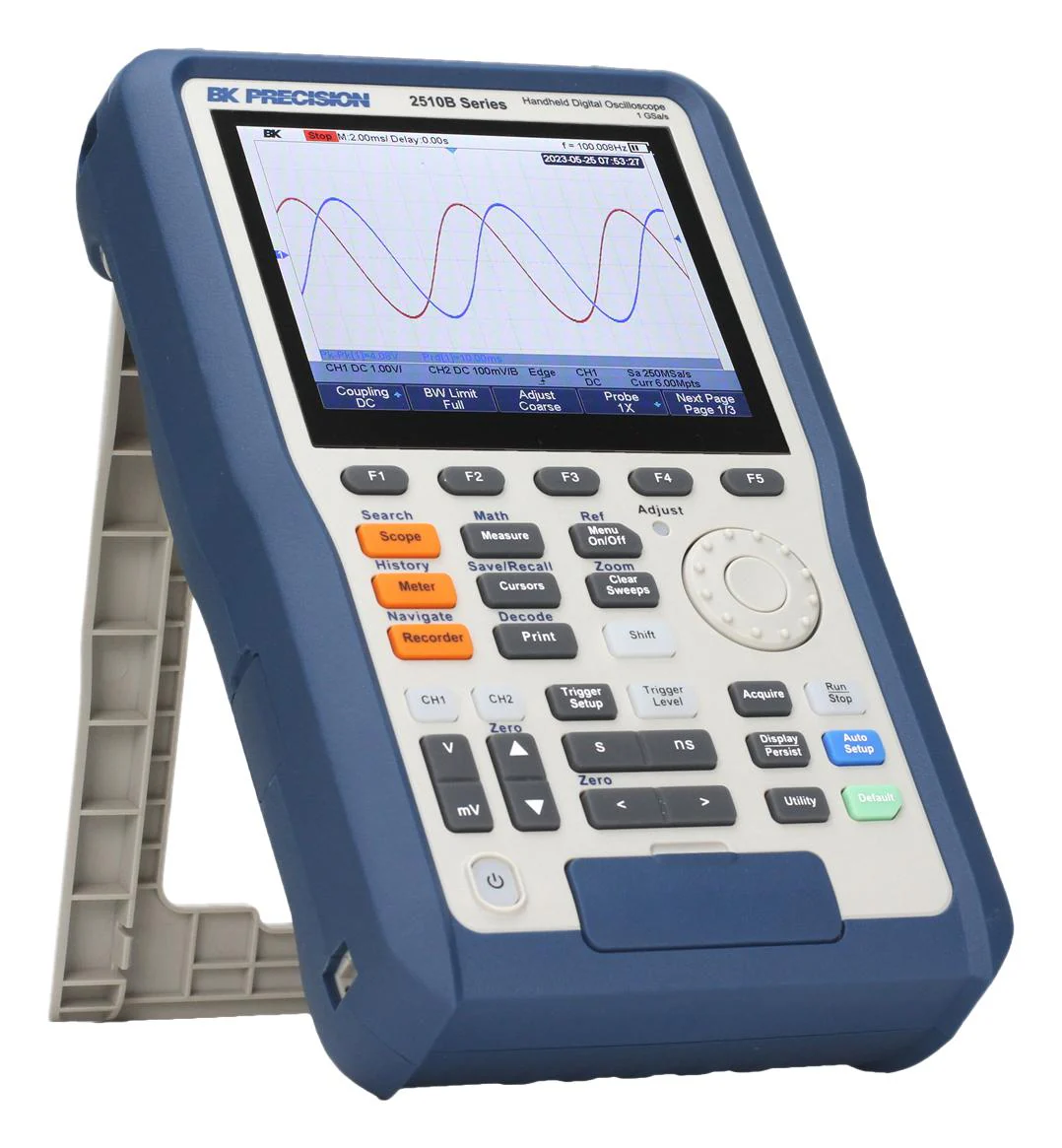

BK2512B is a 200MHz, 2 non-isolated channel 2510B series handheld digital storage oscilloscope. It combines floating measurement and recorder capabilities with a built-in DMM, all in one portable and lightweight package. The built-in 6000-count multimeter allows users to quickly transition from an oscilloscope to a DMM to measure DC/AC voltage and current, resistance, and capacitance, including diode and continuity tests. This handheld DSO features many useful recording functions such as scope recorder and trend plot, which allows data logging from the oscilloscope and multimeter inputs. The scope recorder function provides sample rates up to 25KSa/s, 50MB internal memory, and support to write directly to an external drive for up to 2GB. The trend plot allows users to log oscilloscope or meter measurements at a slower rate up to 10Hz with a maximum memory depth of 3.6Msamples. Ideal for industrial applications, power systems, electronic design, and field test and service.

Maximum sample rate of 1GSa/s, maximum memory depth of 12Mpts (half-channel interleaved)
Waveform update rate of 100,000wfms/s (normal mode), up to 400,000wfms/s (sequence mode)
300 V CAT II rated inputs (non-isolated model)
5.6� TFT-LCD (640 x 480) display
Up to 5 1/2 hours of continuous battery operation
FFT including math functions: add, subtract, multiply, divide, differentiate, integrate, square root
38 automatic measurements, serial bus decoding for IIC, SPI, UART, CAN and LIN protocols
USB host port for saving and recalling waveform setups, data, and screenshots on a USB flash drive
USB device port (micro USB-TMC) for PC connectivity, supports SCPI commands
Dimension is (W x H x D) 68 x 276 x 68 mm, IP51 rated, 3 year warranty

Contents

Handheld digital storage oscilloscope, Power adapter, USB cable, Passive probe (x2), 600mA shunt, 10 A shunt, Carrying bag, Battery pack.

Product details

Technical Specifications

Product Range

2510B Series

Bandwidth

200MHz

Display Memory Depth

12 Mpts

Scope Display Type

TFT LCD Colour

Manufacturer Warranty

3 Years

SVHC

No SVHC (07-Nov-2024)

Scope Channels

2 Channel

Sampling Rate

1GSPS

Calculated Rise Time

1.7ns

Kit Contents

Oscilloscope, Power Adapter, USB Cable, Passive Probe x 2, Shunts x 2, Carrying Bag, Battery Pack

Plug Type

-

Other details

Brand	B&K PRECISION
Part Number	BK2512B
Quantity	Each
Technical Data Sheet EN

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

Hand Held Oscilloscopes

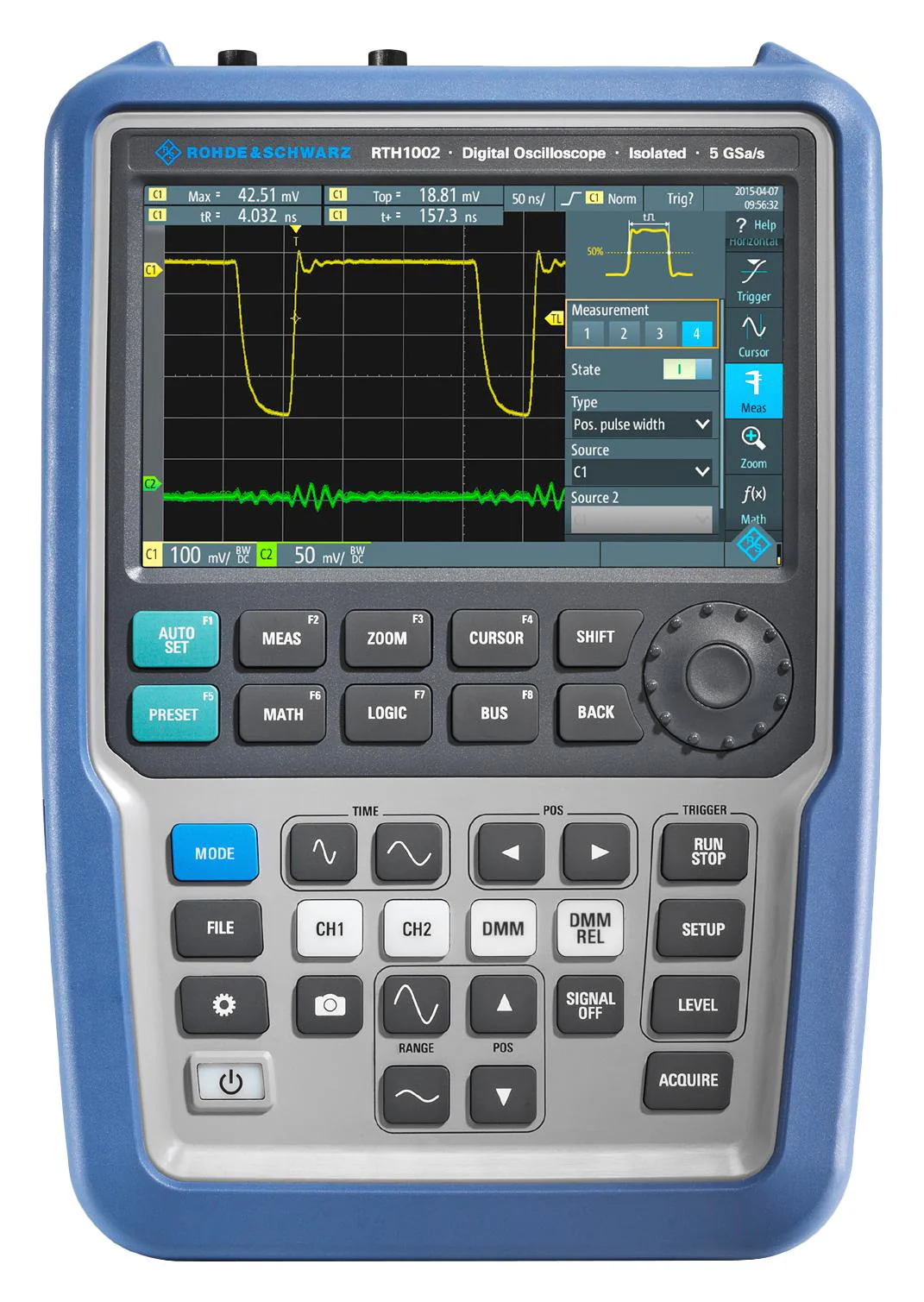

ROHDE & SCHWARZ RTH-BNDL Oscilloscope, RTH Series, 4 Analogue, 500 MHz, 5 GSPS, 500 kpts, 700 ps
